OPERATION
53

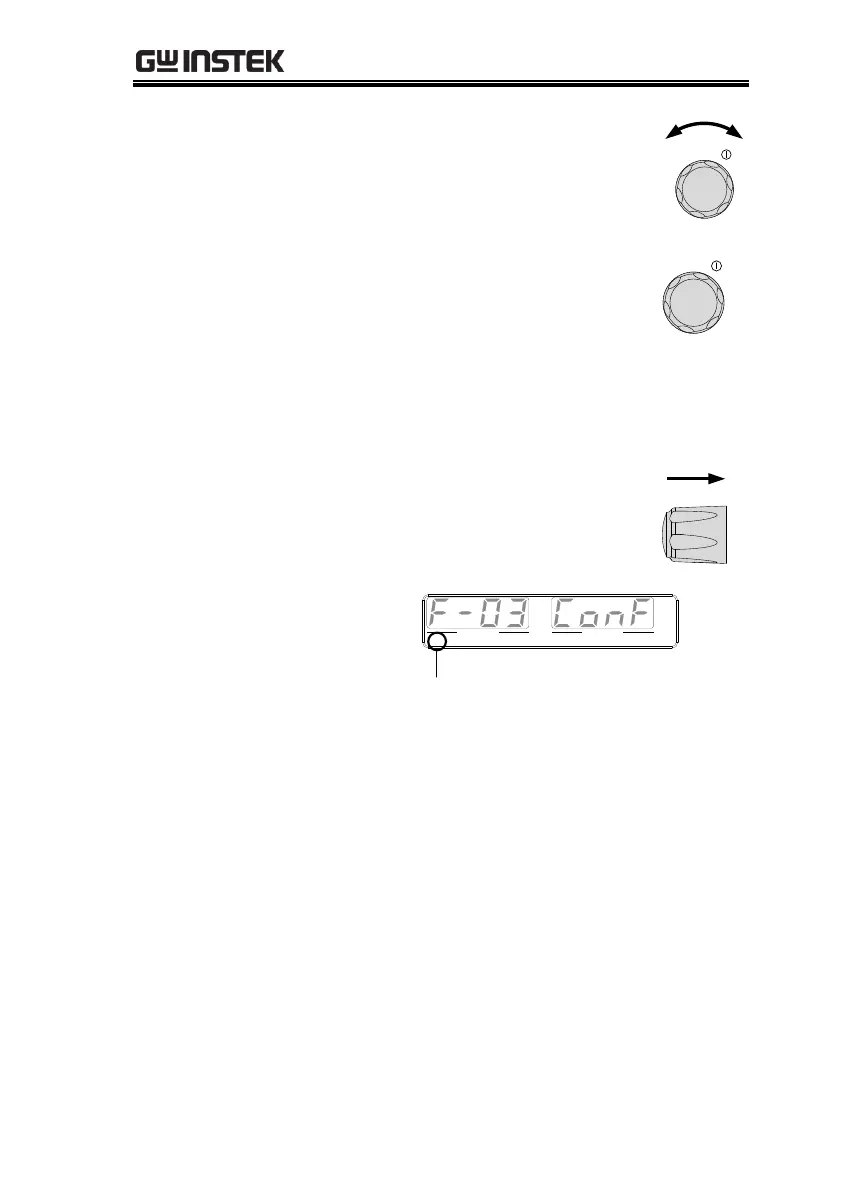

3. Rotate the Voltage knob to change
the F setting to F-03 (V-I Mode Slew
Rate Select).
4. Use the Current knob to set the F-03
setting.
Set F-03 to 0 (CV High Speed
Priority) or 2 (CV Slew Rate Priority).
0 = CV High Speed Priority
2 = CV Slew Rate Priority
5. Press the Voltage knob to save the
configuration setting. ConF will be
displayed when it is configuring.
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
VSR indicator for CV Slew
Rate Priority (F-03=2)
6. If CV Slew Rate Priority was chosen as the
operating mode, set F-04 (Voltage Slew Rate
Up) and the F-05 (Voltage Slew Rate Down)
and save.
To Next Page
