S5130S-52S-EI/S5130S-52S-EI-M

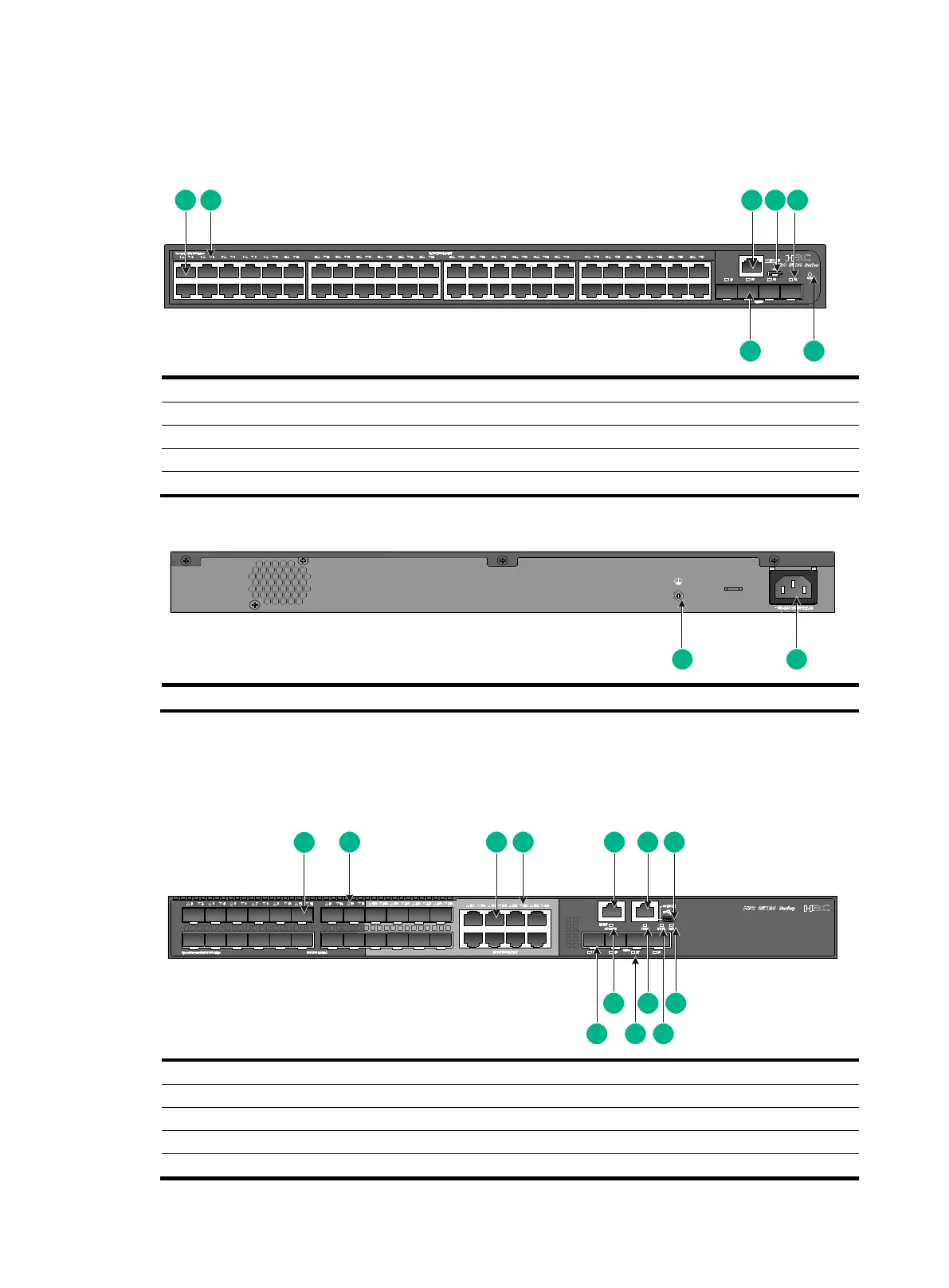

Figure2-19 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Console port (CONSOLE)
(4) Micro USB console port
(5) SFP+ port LED
(6) System status LED (SYS)
(7) SFP+ port
Figure2-20 Rear panel
(1) Grounding screw
(2) AC-input power receptacle
S5130S-28F-EI
Figure2-21 Front panel
(1) SFP port
(2) SFP port LED
(3) 10/100/1000BASE-T autosensing Ethernet port
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) Management Ethernet port
(6) Console port (CONSOLE)
(7) Micro USB console port
(8) System status LED (SYS)
1
2
3
4
5
6
7
1
2
1
2 3 4 7 5 6
8
9
10
11
12
13
