H3C S5130S-EI series - S5130 S-28 P-Hpwr-Ei

2-35

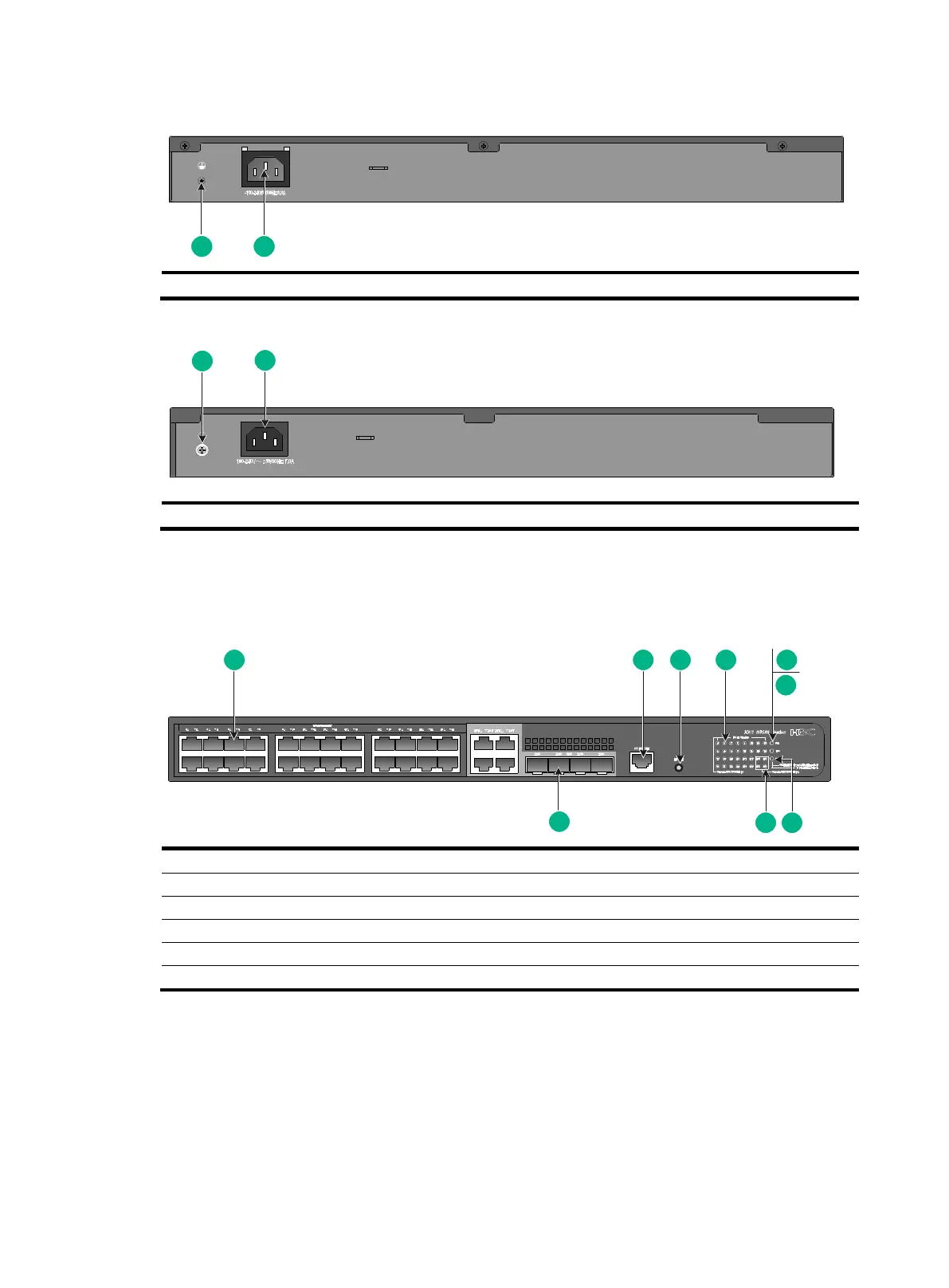

Figure2-42 Rear panel (product code LS-5130S-28P-PWR-EI)
(1) Grounding screw
(2) AC-input power receptacle
Figure2-43 Rear panel (product code LS-5130S-28P-PWR-EI-H1)
(1) Grounding screw
(2) AC-input power receptacle
S5130S-28P-HPWR-EI
Figure2-44 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Console port (CONSOLE)
(3) Port LED mode switching button
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) System status LED (SYS)
(6) RPS status LED (RPS)
(7) Mode LED (MODE)
(8) SFP port LED
(9) SFP port
1 2
1
2
1
9
3
5
2
8
4
6
7
