H3C S5130S-EI series Hardware Information

2-34
S5130S-20P-PWR-EI

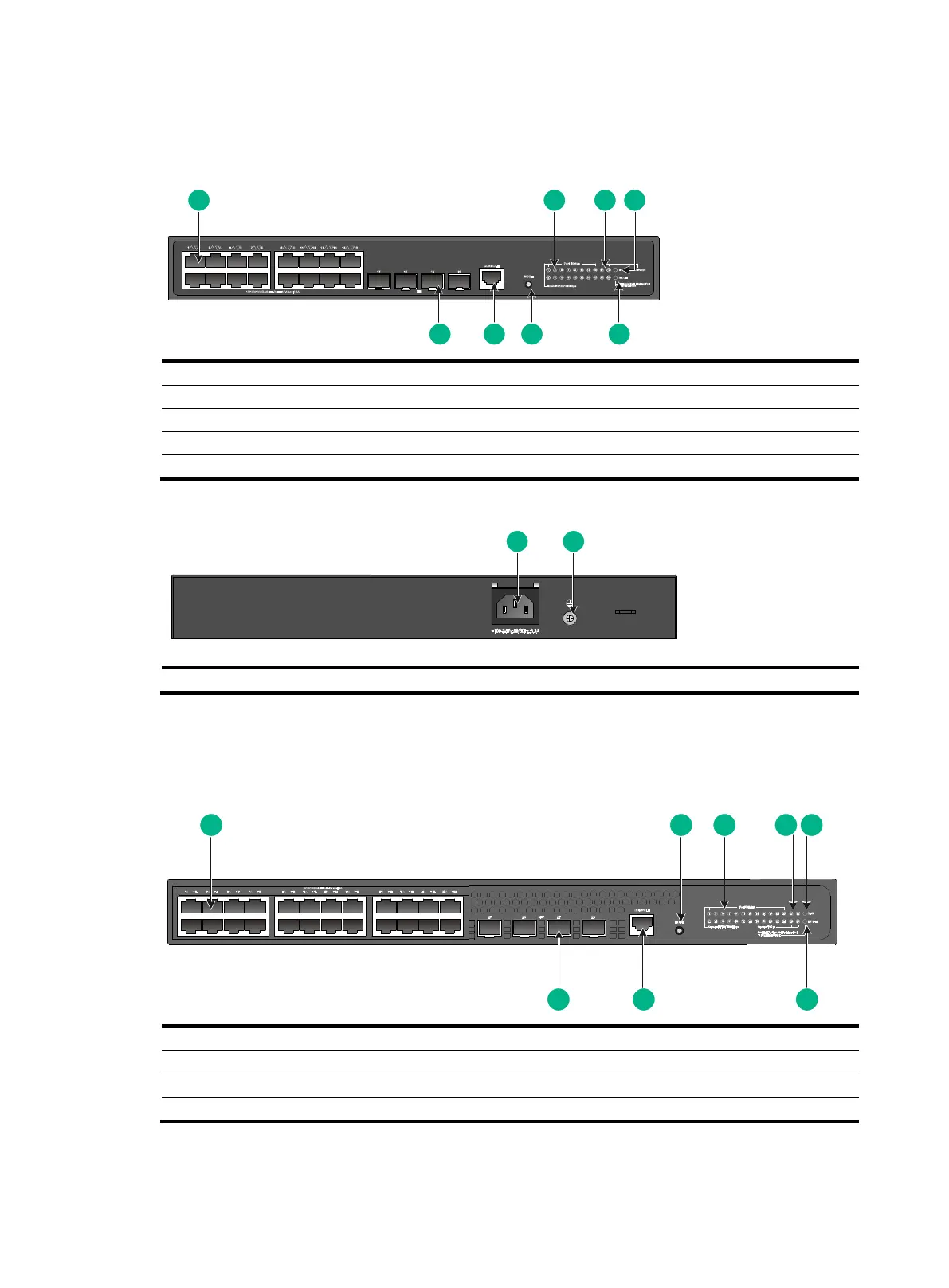

Figure2-39 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) SFP port LED
(4) System status LED (SYS)
(5) Mode LED (MODE)
(6) Port LED mode switching button
(7) Console port (CONSOLE)
(8) SFP port
Figure2-40 Rear panel
(1) AC-input power receptacle
(2) Grounding screw
S5130S-28P-PWR-EI
Figure2-41 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Port LED mode switching button
(3) 10/100/1000BASE-T autosensing Ethernet port LED
(4) SFP port LED
(5) System status LED (SYS)
(6) Mode LED (MODE)
(7) Console port (CONSOLE)
(8) SFP port
1 2 3
5
8
7 6
4
1
2
1
3
5
2
4
78
6

H3C S5130S-EI series Specifications

General

Series	S5130S-EI
Category	Switch
MAC Address Table Size	16K
VLAN	4K VLANs
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Ports	10/100/1000BASE-T ports
Layer Support	Layer 3
Stacking	Supported
Power Supply	AC/DC
PoE	Supported on some models
Dimensions (W x D x H)	440 x 43.6 mm
