H3C S5130S-EI series - S5130 S-52 F-Ei

2-28
(9) Power supply 2 status LED (PWR2)
(10) Power supply 1 status LED (PWR1)
(11) SFP+ port LED
(12) Management Ethernet port status LED (ACT/LINK)
(13) SFP+ port

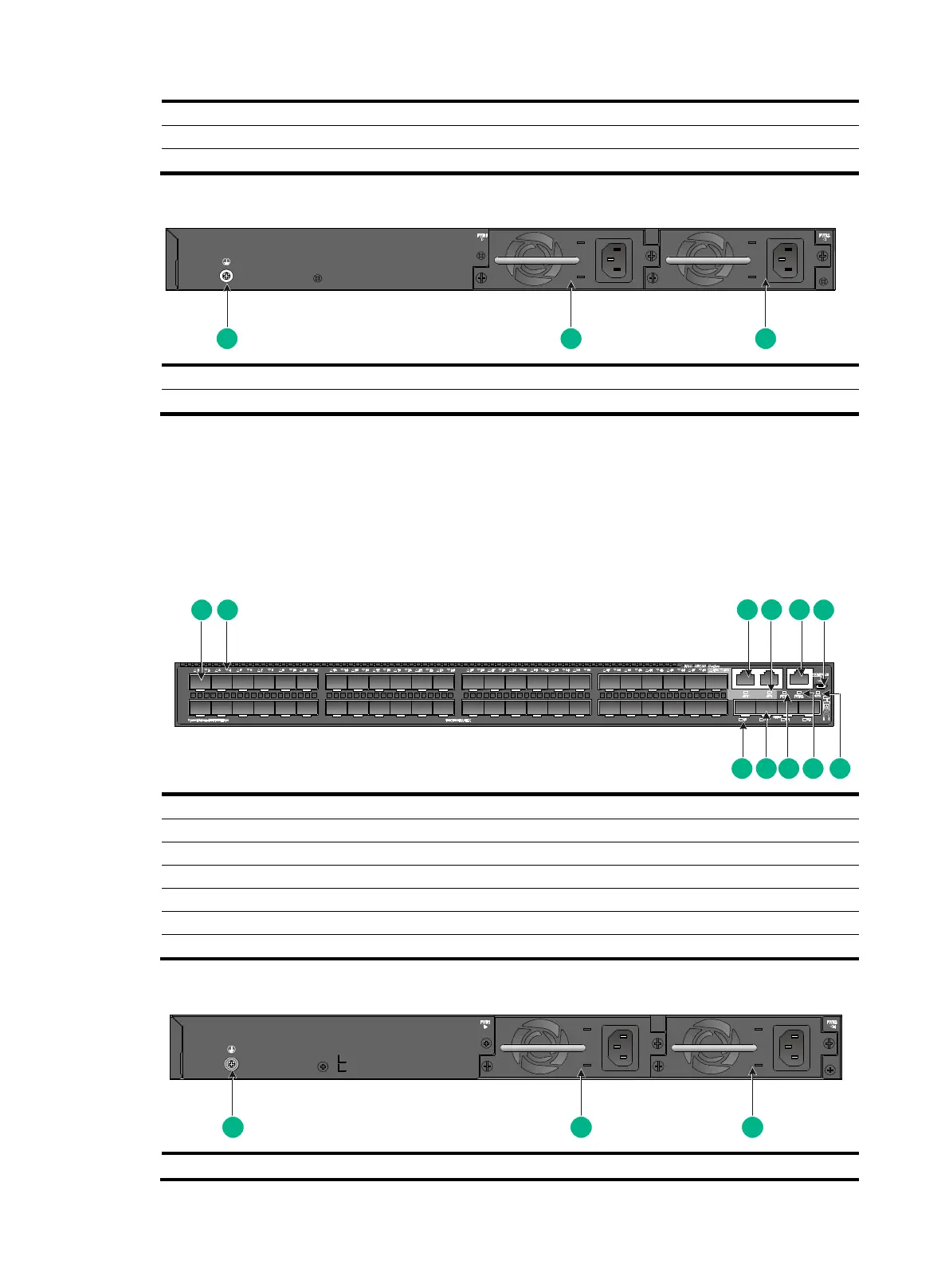

Figure2-22 Rear panel
(1) Grounding screw
(2) Power supply 1 (PWR1)
(3) Power supply 2 (PWR2)
The S5130S-28F-EI switch comes with power supply 1 empty and power supply slot 2 installed with
a filler panel. You can install one or two power supplies for the switch as needed. In Figure2-22, two
PSR150-A1 AC power supplies are installed.
S5130S-52F-EI
Figure2-23 Front panel
(1) SFP port
(2) SFP port LED
(3) 10/100/1000BASE-T autosensing Ethernet port
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) Console port (CONSOLE)
(6) Micro USB console port
(7) System status LED (SYS)
(8) Power supply 2 status LED (PWR2)
(9) Power supply 1 status LED (PWR1)
(10) SFP+ port
(11) SFP+ port LED
Figure2-24 Rear panel
(1) Grounding screw
(2) Power supply 1 (PWR1)
1
2
3
1 2
3 4 5
6
789
1011
1 2 3
