H3C S5130S-EI series - S5130 S-16 S-Pwr-Ei; S5130 S-16 S-Upwr-Ei-Q

2-37
S5130S-16S-PWR-EI

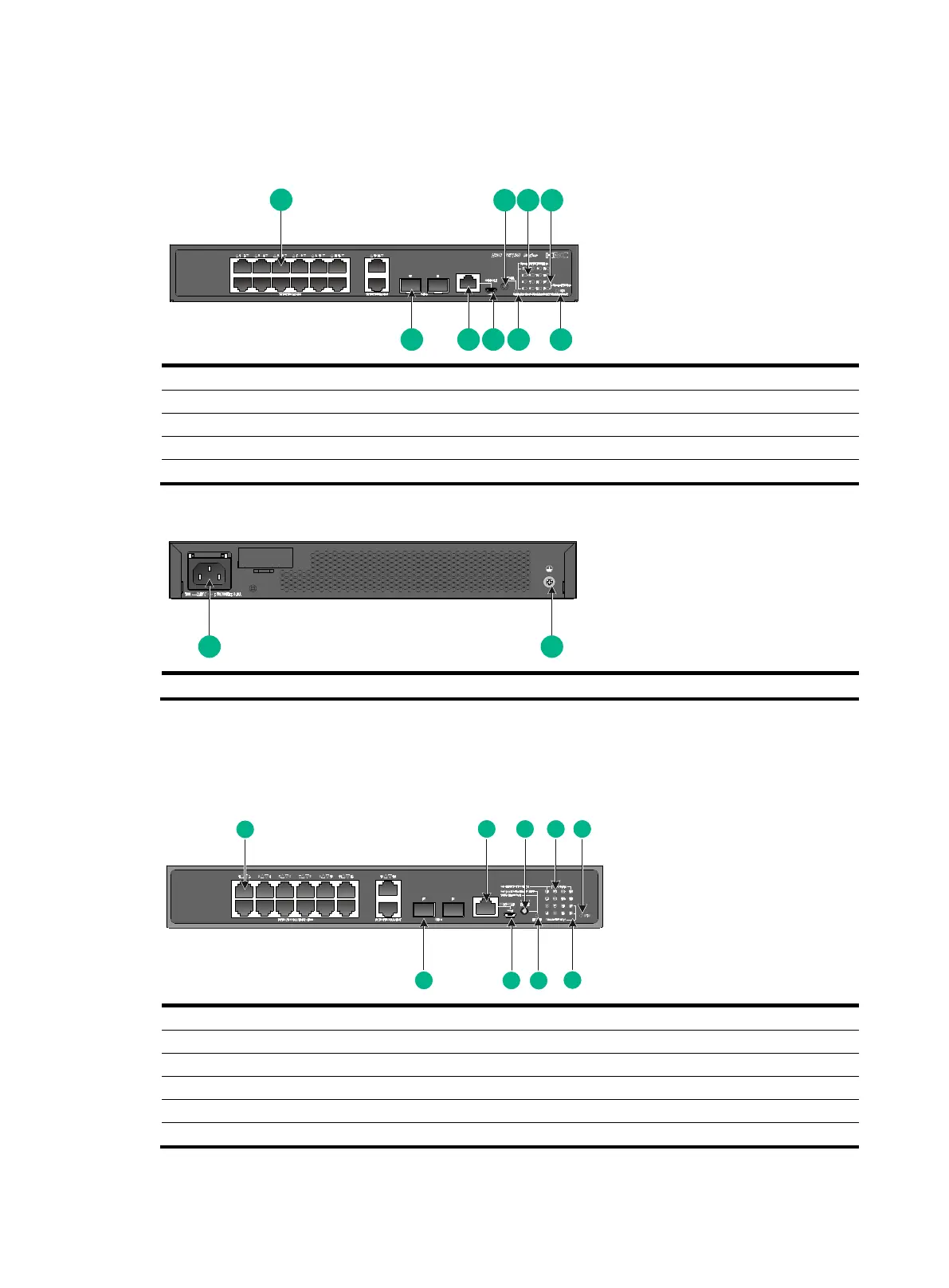

Figure2-48 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Port LED mode switching button
(3) 10/100/1000BASE-T autosensing Ethernet port LED
(4) SFP+ port LED
(5) System status LED (SYS)
(6) Mode LED (MODE)
(7) Micro USB console port
(8) Console port (CONSOLE)
(9) SFP+ port
Figure2-49 Rear panel
(1) AC-input power receptacle
(2) Grounding screw
S5130S-16S-UPWR-EI-Q
Figure2-50 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) Console port (CONSOLE)
(3) Port LED mode switching button
(4) 10/100/1000BASE-T autosensing Ethernet port LED
(5) System status LED (SYS)
(6) SFP+ port LED
(7) Mode LED (MODE)
(8) Micro USB console port
(9) SFP+ port
1
2
3
4
58 6
79
1
2
1
7
52
3 4
6
8
9
