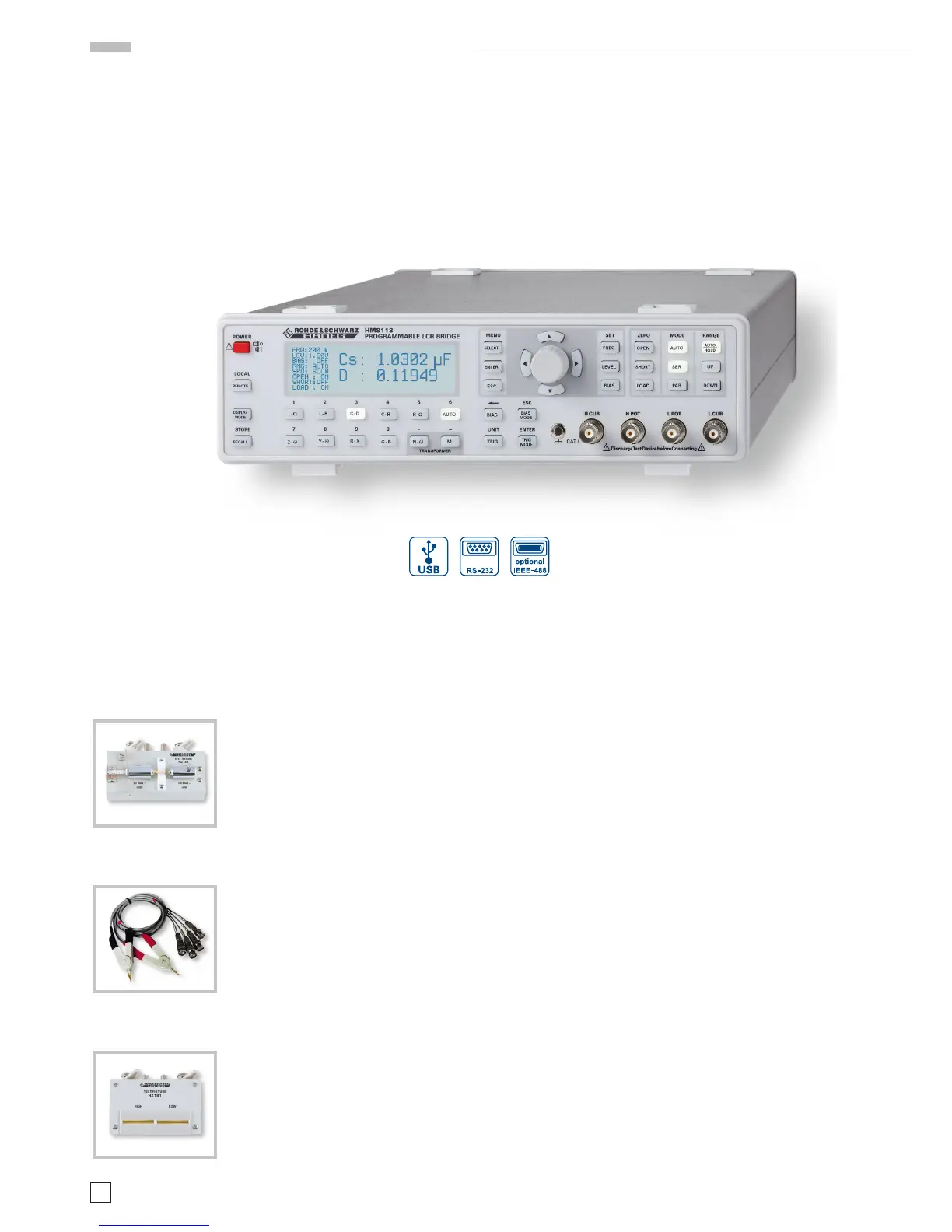

Programmable LCR-Bridge HM8118
Programmable LCR-Bridge HM8118
HM8118
R Basic Accuracy 0.05 %
R Measurement Functions L, C, R, |Z|, X, |Y|, G, B, D, Q, Θ, ∆, M, N
R Test Frequencies 20 Hz…200 kHz
R Up to 12 Measurements per Second
R Parallel and Serial Mode
R Binning Interface HO118 (optional) for automatic Sorting
of Components
R Internal programmable Voltage and Current Bias
R Transformer Parameter Measurement
R External Capacitor Bias up to 40 V
R Kelvin Cable and 4-Terminal SMD Test Adapter included
R Galvanically isolated USB/RS-232 Dual-Interface,
optional IEEE-488 (GPIB)
200kHz LCR-Bridge
HM8118
HZ184 4-Terminal Kelvin
Test Cable (included)
HZ181 4-Terminal Test
Fixture with Shorting Plate
(optional)
HZ188 4-Terminal SMD
Component Test Fixture
(included)
Programmable LCR-Bridge
HM8118

Hameg HM8118 Specifications

General

Brand	Hameg
Model	HM8118
Category	Measuring Instruments
Language	English
