Wireless AP Router HNW300APN2

User Manual 23

Configuration examples

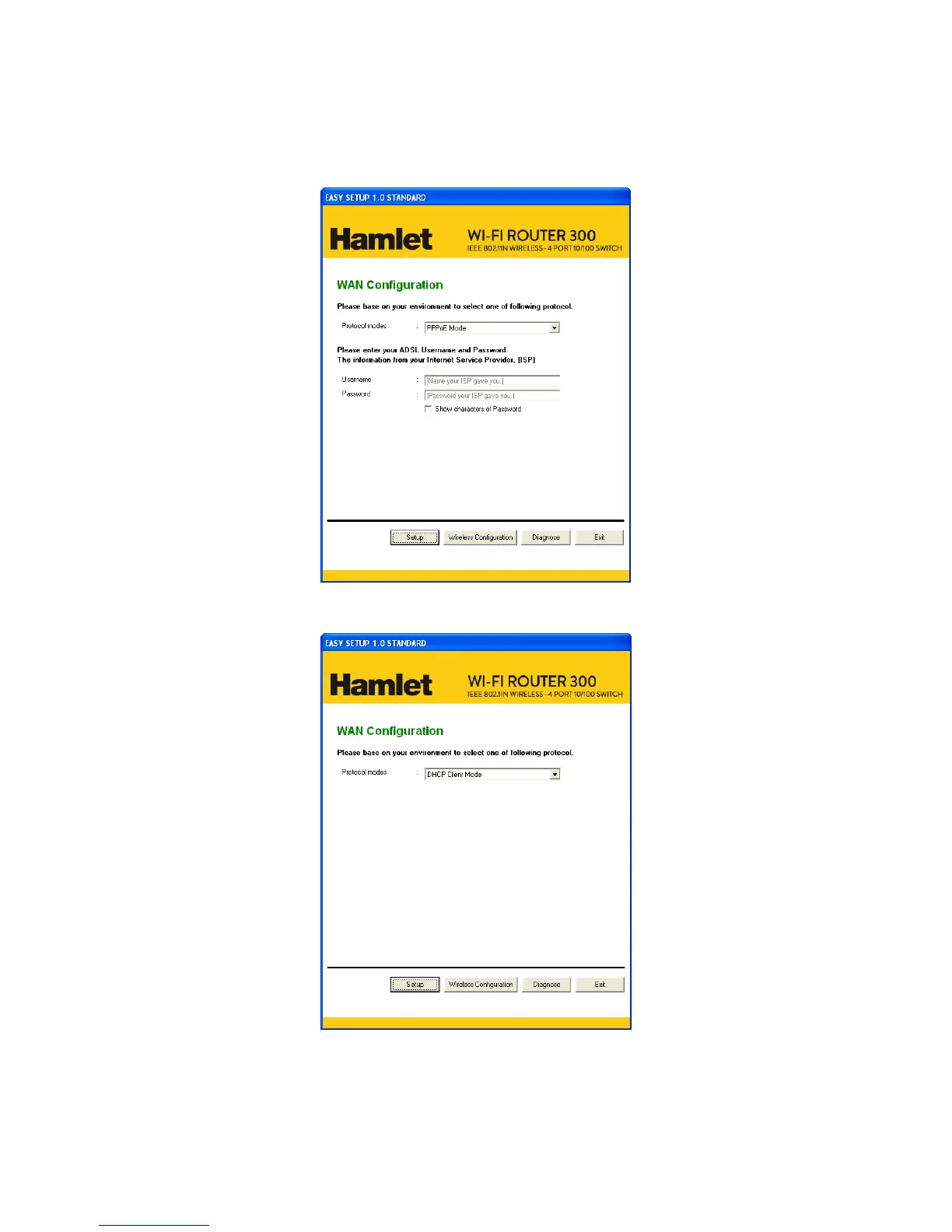

7-1. PPPoE

Select PPPoE Mode from Protocol modes drop-down list Enter Username and Password offered by

the ISP. Click on Setup button

7-2. DHCP

Select DHCP Client Mode from Protocol modes drop-down list. Click on Setup button
