Wireless AP Router HNW300APN2

User Manual 97

6. Users must start the PIN method on the station side within two minutes.

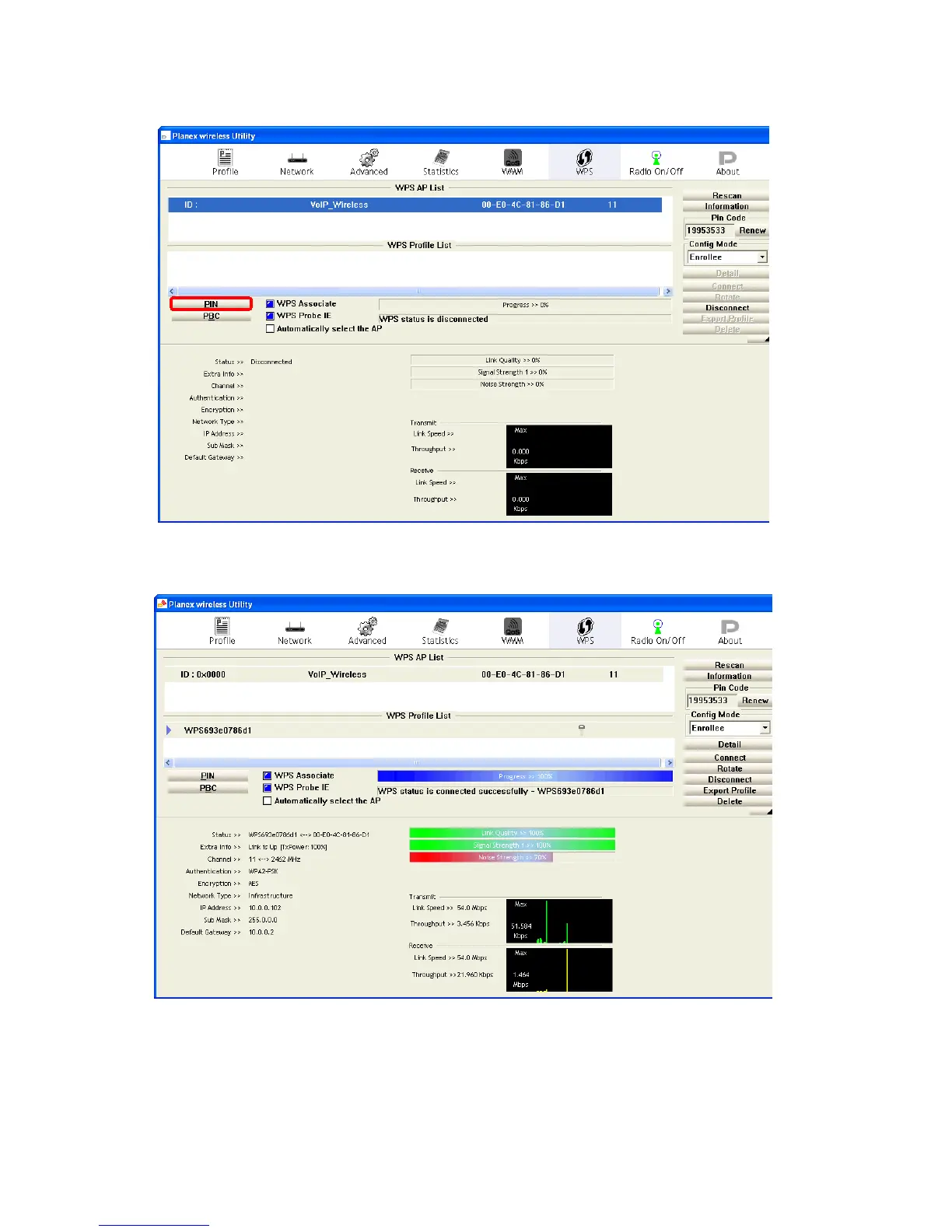

7. If the device PIN is correct and the WPS handshake is successfully done on the station side, User’s

Wi-Fi Protected status will be shown as below.
