Programmable Temperature & Humidity Controller
24
To run the Program operation screen 2 please press the play button (19) in the left of the center.
No. Description
1 Displays state of SD card.
2 Runs hidden menu window. Click the same to hide menu window.
3 Go to operation 3 screen (graph view)
4 Go to main menu screen.
5 Show the temperature Present value (PV)
6 Show the temperature unit
7 Show the temperature control output (MV)
8 Input the start pattern (show the pattern progression during the operation)
9 Show the temperature present set value (NSV). Show only during operation
10 Show the temperature increase/decrease/maintenance status
11 Show the humidity Present value (PV)
12 Show the humidity unit
13 Show the humidity control output (MV)
14 Input the start segment (show the segment in progress during the operation)
15 Show the humidity present set value (NSV). Show only during operation
16 Show the humidity increase/decrease/maintenance status
17 Show the temperature/humidity PID number in application
18
Show the pattern repetition status (number of the repetitions in progress / number of the repetitions set)
19
Show the progress status of the segments in progress (number of the segments in progress /
quantity of the segments set)
20 Show the time of the segment in progress (segment progress time / segment set time)
21 Start/Stop button
22
Show the status lamp of the input/output signal. The second status lamp window appears by clicking the
Show part (show max 32, max 16 in one screen).
* The status lamp shown in the operation screen can be set on (Main Menu)-(System Menu)-(System)-(Status lamp)
23 Show a status message about the overall operation
24 Show the operation time

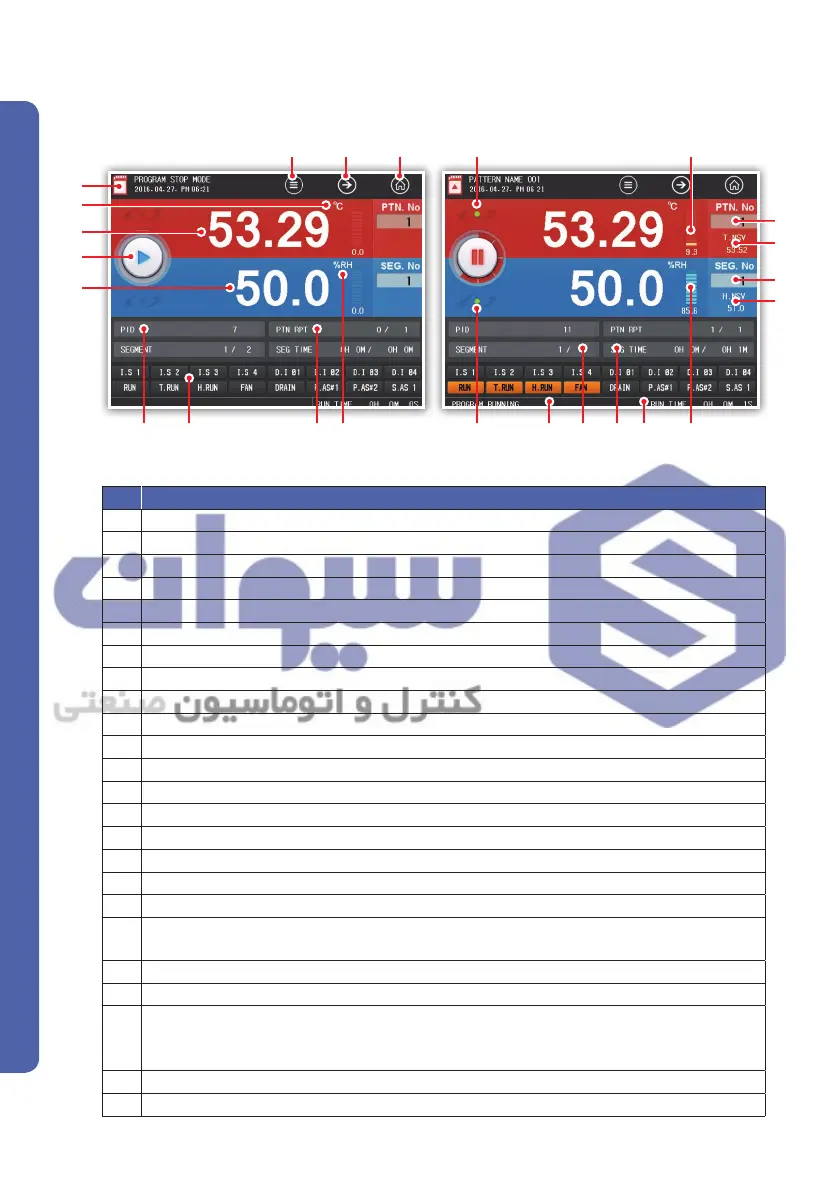

Picture 18) program operation fixed screen 2 Picture 19) program operation operative screen 2
▶ Program operation 2 screen
② ⑩
⑦
③ ④
⑫ ⑯⑱⑰ ⑳ ㉓ ⑲ ⑳ ㉔ ⑬
①
⑥
⑤
⑪
㉑
⑧
⑭
⑨
⑮
