71
Before starting Installation
Operation
Screen block
diagram
Function setting Program System setting Specifications
- Screen to set relays for pattern/system alarms.
- If an alarm signal is transmitted, defined relay is ON.
- Screen to set relays for operations signals by channel.
1. Control signal
- Set Temperature and Humidity operation signal relays and delay.
2. Sensor disconnection
- Set Temperature and Humidity sensor disconnection signal relays and ON time.
3. Ascending section
- Set ascending signal relay and offset.
- Offset = Target setting value – Temperature or Humidity value
4. Holding section
- Set holding section relay and ON time.
5. Descending section
- Set ascending signal relay and offset.
- Offset = Target setting value + Temperature or Humidity value.
▶ Alarm
▶ Operation signal
Parameter Setting range Default
P. Alarm 1 ~ 4 Up to 0 ~ 32 0
S. Alarm 1 ~ 8 Up to 0 ~ 32 0

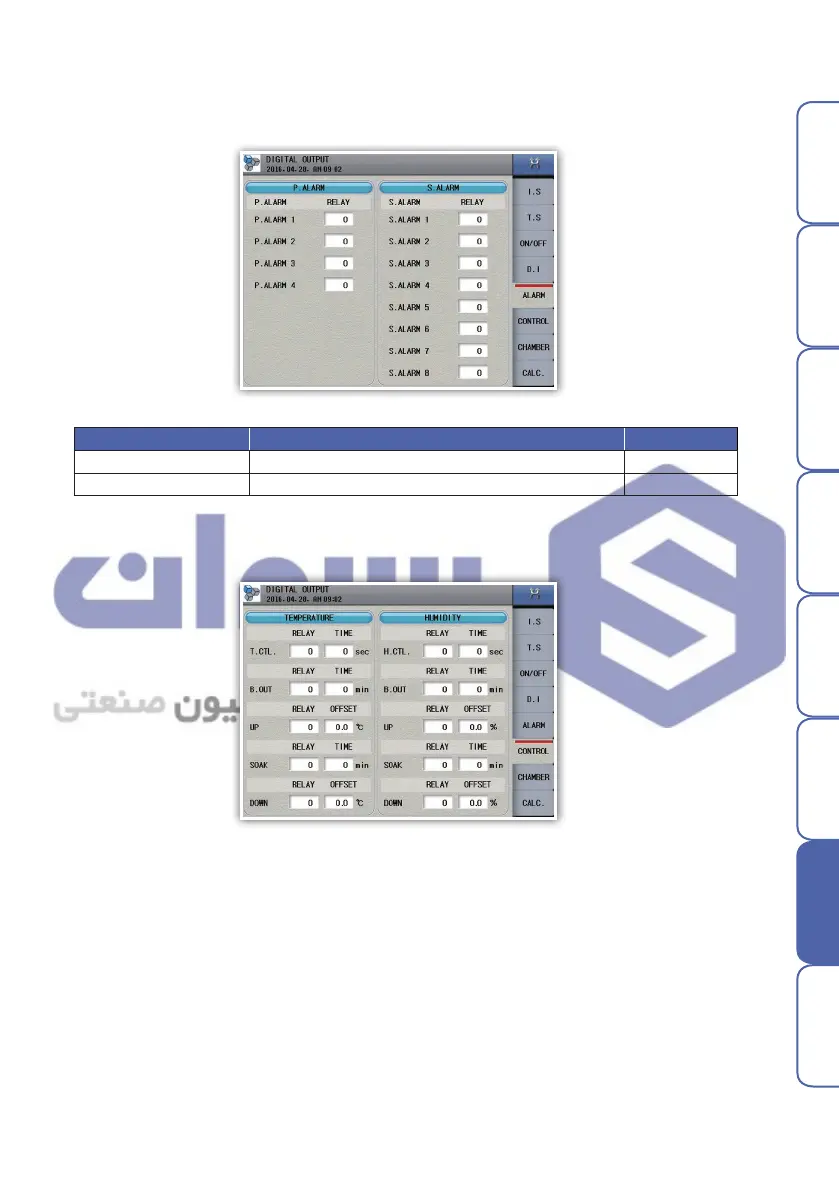

Fig. 112) DO – Alarm signal
Fig. 113) DO – Operation signal
