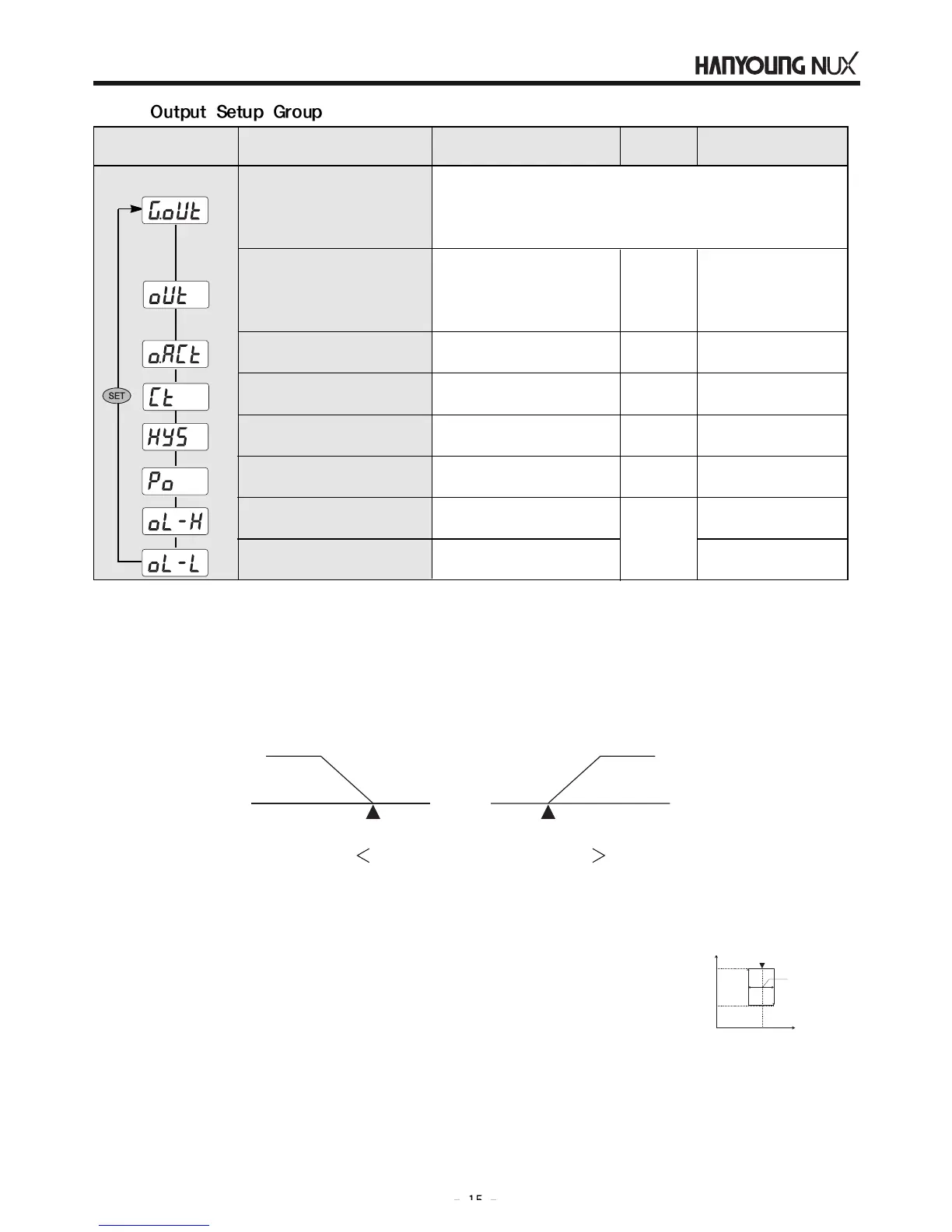

Signal
ON / OFF,
SSR, SCR,
Relay
Setup range
Display
condition
Initial value
Output group
Heating / Cooling
control selection
Heating cycle time
1~1000 sec.
0~100 %(EUS)
-5.0~105.0 %
OL-L+1Digit~105.0 %
-5.0~OL-H -1Digit %
Always
Heating
30 sec.
0.5 %(EUS)
0.0
Relay
100.0 %
Output type
selection
Hysteresis
Preset output volume
Max. output value
Min. output value
REV : heating
DIR : cooling
SSR
Relay
ON/OFF
Always
PID
control
0.0 %
Item
8-1-2.
1)Selection of Output Type
: Control output can be selected from the relay on-off output, relay PID control output, SSR Driving
Pulse output, and voltage output by choosing “Output Type Selection Symbol” from the Control Output
Type List.
2)Selection of Heating & Cooling control
: Control method includes controlling by heating and cooling by freezing function. Choose REV (reverse
motion) for heating control and DIR (ordinary motion) for cooling control.
Setup below parameters.
Always
Reverse motion(REV)
Ordinary motion(DIR)
SV
SV
ON if PV
SV ON if PV SV
3) Heating Cycle Time : When selected relay or SSR output for the control output
: It is an item that selects the frequency of ON-OFF in proportion to output. Generally, set 30 seconds
for the relay output and 2 seconds for the SSR output in consideration of the life span.
4) Hysteresis
: This item sets the range between the ON temperature and OFF temperature
when relay ON-OFF control is selected from the control output.
5) Preset Output Volume
: This is useful when preheating condition must be maintained through continuous output volume previ-
ously set up by disconnecting the output from the PID calculation during the burn-out (disconnected
sensor) A/D error.
6) Maximum & Minimum Value of Output
: This item allows the setup of maximum and minimum percentage in which the output volume of the
control output would be operated by.
Hysteresis
SV
output
PV
ON
OFF
