Hanyoung NP100 User Manual

Signal
Setup range
Display
condition
Initial value

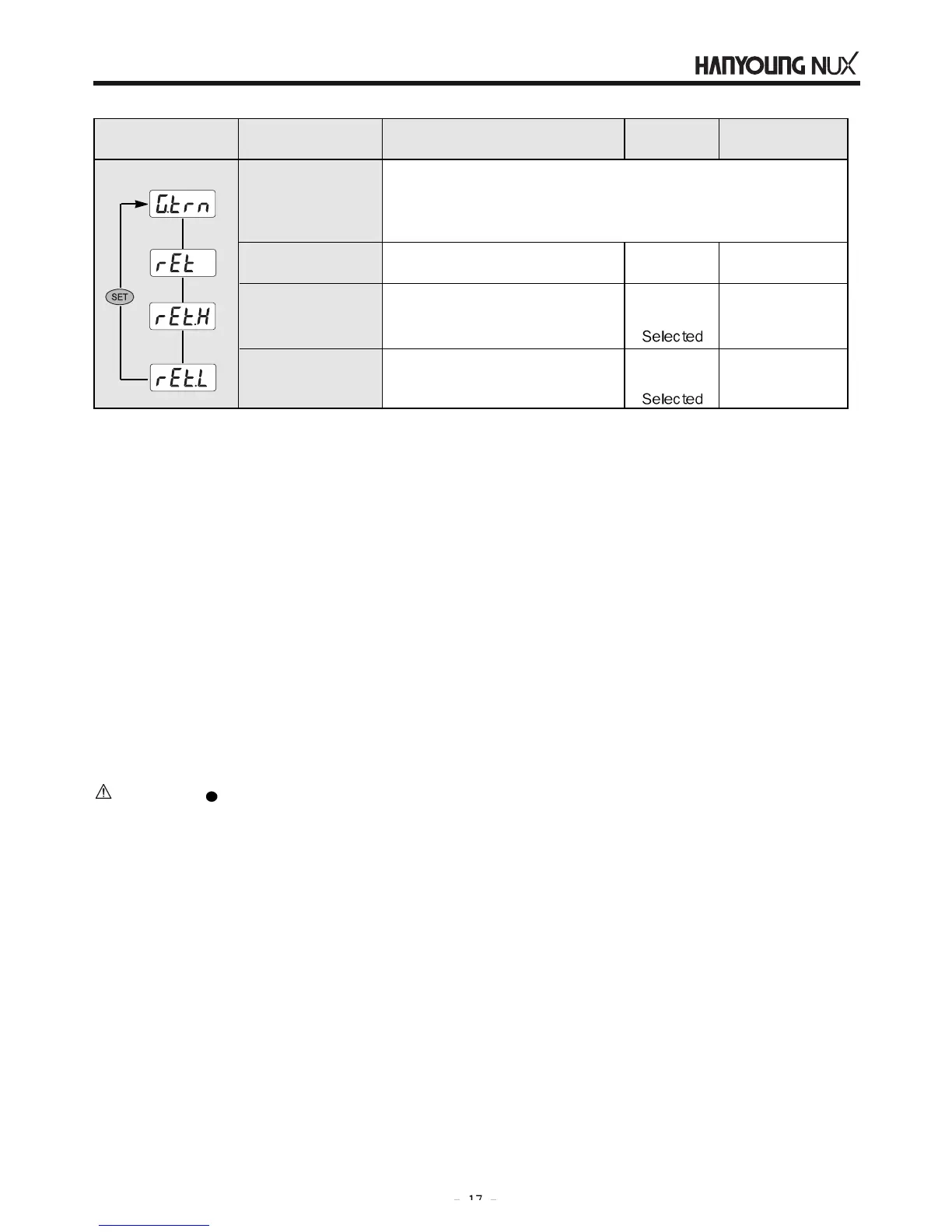

Retransmission
setup group
Always
PV
Retransmission
output selection
Max.
Retransmission
output
Min.
Retransmission
output
PV, SV, MV(output volume), SPS
Setup below items.
Item
T.C, R.T.D : FR-H~FR-L
mV,V : SL-H~SL-L
(RET.H > RET.L)
T.C, R.T.D : FR-H~FR-L
mV,V : SL-H~SL-L
(RET.H > RET.L)
RET=PV
MV,SV
RET=PV
MV,SV
T.C,RTD : FR-H
mV, V : SL-H
T.C,RTD : FR-H
mV, V : SL-H
1) Selection of retransmission Output
: Process value, output volume or setup value can range from 4~20 mADC as retransmission output
and when SPS is selected, power for external sensor will be outputted. (24 VDC 20 mA MAX)
2) Selection of Maximum & Minimum Retransmission Output
: 4 ~ 20 mADC output can be selected within the range of value from the maximum range selection
(FR-H) and the minimum range selection (FR-L) in case of thermocouple or R. T. D input. As for the
voltage output (V, mV), select the desired maximum and minimum range within the maximum scale
(SL-H) and (SL-L).
8-1-5. Alarm Setup Group
Caution!
Alarm Output Wiring
- In relay close contact output, use relay to operate ON/OFF when the close contact capacity exceeds
240VAC, resistance 1A, and 30VDC resistance load 1A.
- Connect the Bleeder resistance for the current to flow more than the opening and closing volume of the
relay when opening or closing of small amount of current.
- There is life span ([Resistance load] for over 100,000) for relay. Connect CR Filter (when using AC) or
diode in the direct current L load).
