Operate the current pattern number.
Input the parameter setup value
Use when moving the parameter
Press 2.5 seconds or longer to alternate the operation indicator
mode and the engineering mode.
Exit running program and convert to stop.
Exit runing MAN operation and convert to reset mode.
Use to finish program setup mode.
Press to move to other digit.
Use to change the parameter value.
Use to move to other group.
Use to change the parameter value.
Use to move to other group.
When the program is running, press to hold the running segment.
Press again to release the holding
Exit the running segment while operating program and operate the
next segment.
Use to change the pattern nember.
Press key to alternate P1 and P2
AUTO:Use to change MAN control to program mode.
MAN:Use to change program mode to MAN control.
Press key to alternate AUTO and MAN.

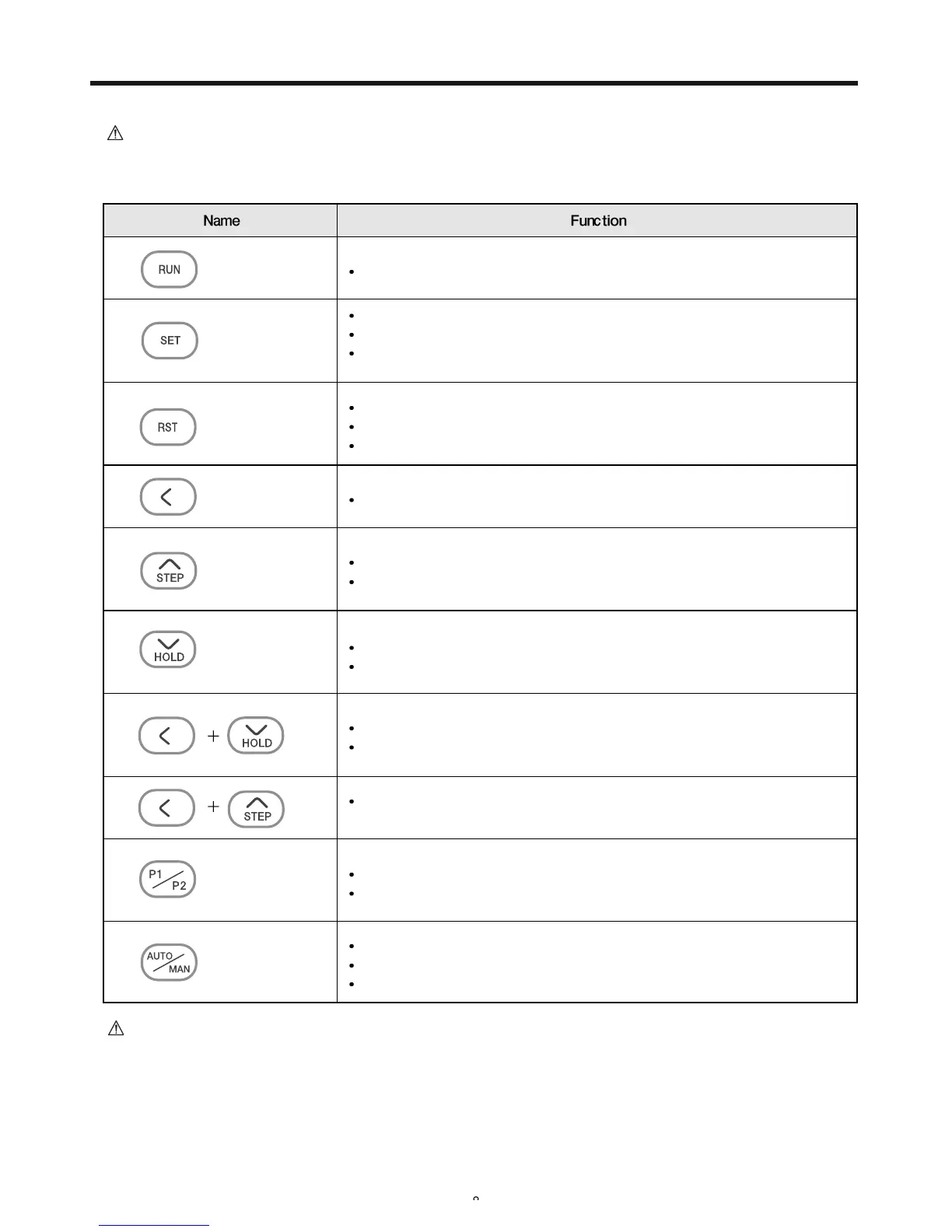

6-2. Function of control key
- press the key firmly with your finger
- Do not press the key with any sharpened thing. It could cause key malfunction
Caution
Automatic/Manual Operation Selection Method
Press the AUTO/MAN key on the front panel to choose automatic and manual operation.
On manual mode, the MAN LED will be turned on and MAN LED will be turned off for automatic mode.
The control output value continuously changes with the operation of ascent and descent keys.
Caution
NP100
