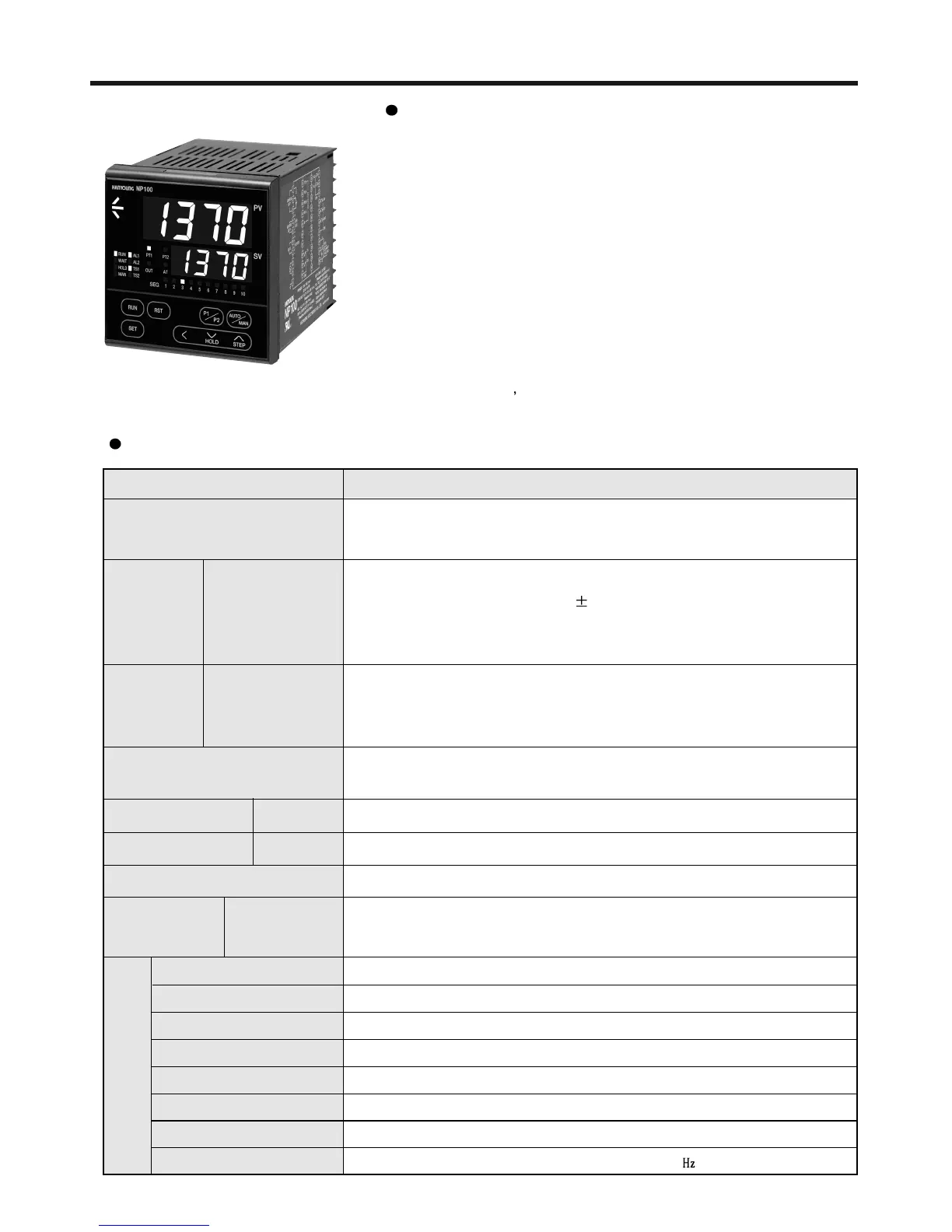

Hanyoung NP100 User Manual

Function Description
RS 485 / 422
Time signal 2 points
Summary
Program temperature controller is consisted of three types of
modes: operation indicator mode, engineering mode, and program
mode.
Operation indicator mode is displayed when the power is on and it
indicates process value and set value, process value and output
volume, and remaining time of the corresponding segment when in
operation.
Engineering mode sets up the basic functions of the instrument
including types of input (sensor) and output, communication,
retransmission, alarm, control output, PID, and auto tuning.
Program mode sets up the control program. It establishes the
number of program repetition, pattern number, segment number
setup, program start condition, time signal, program ending mode,
and each segment
s parameter.
Feature
Option
PV display
Digit number
Accuracy
Sampling time
Input type
Output type
Relay
Transistor
Standard
Speed
Max. Com. line
4 digits
0.1 %
250 ms
Universal input (selectable by parameter) refer to page 6
Universal output (selectable by parameter) refer to page 6
SSR / SCR
Relay
Current / SPS (power suppy for sensor)
(Use RET output terminal)
2 points
2 points
2 patterns & 20 segments (1 PT is max. 10 seg.)
RS485/422
600 ~ 9600 bps
31
Control
Output
Retransmission output
Alarm output
Time signal output
1 point
Measurement input
Contact input
SCR / SSR pulse
Retransmission output
Relay control output
Alarm output
Transistor output
Power supply
3 points (RUN,RESET,HOLD)
1 point (Current or SSR output)
1 point
1 point (C contact)
2 points (A contact)
2 points (Time signal)
100 - 240 V AC 50 - 60
Pattern & Segment number
Communication
Hard
Ware
NP100
