NP100
( : Set point , : Mins Alarm set pooint : Alarm set point )
Code
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

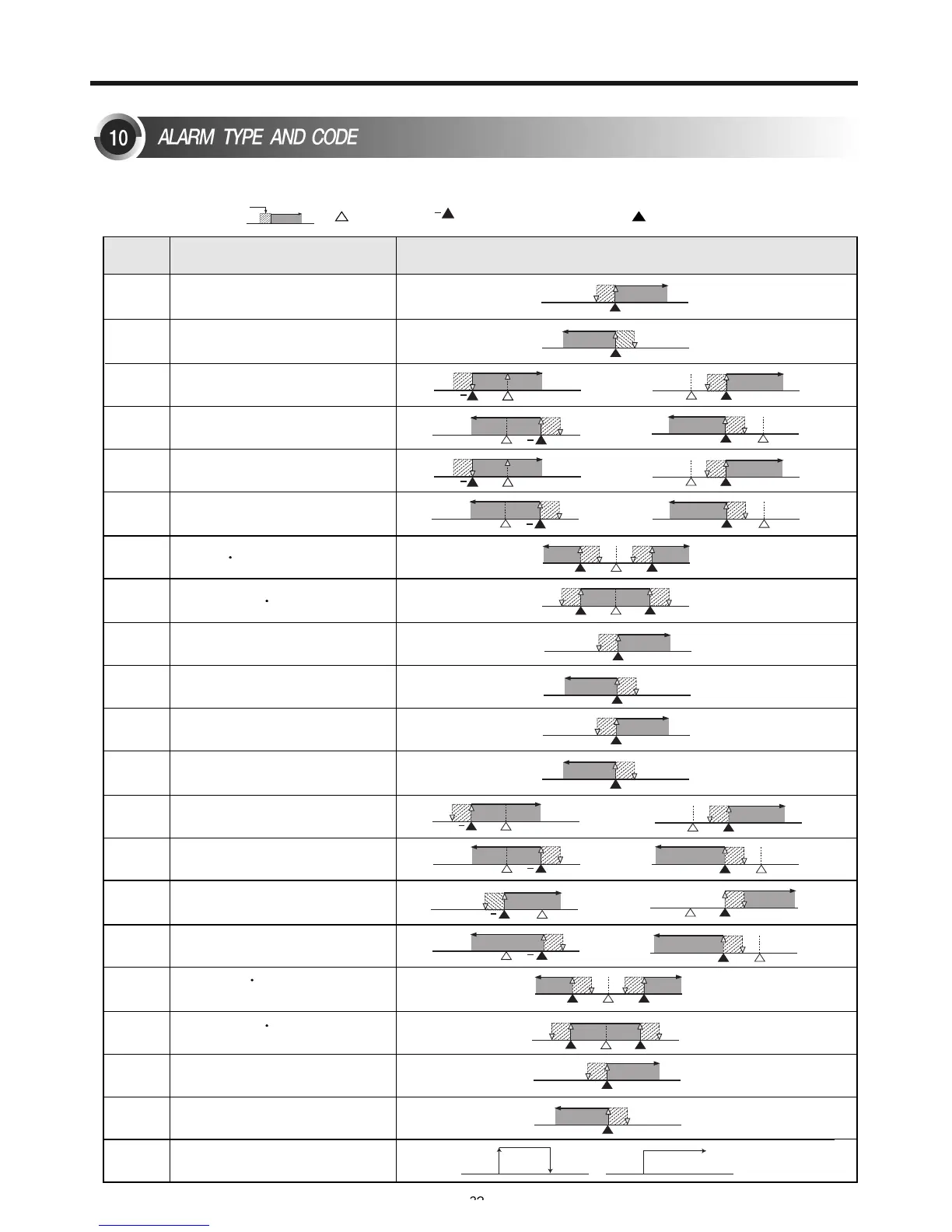

High absolute alarm
Low absolute alarm
High deviation alarm
Low deviation alarm
High deviation alarm (inverted)
Low deviation alarm (inverted)
High
Low deviation alarm
High
Low band
High absolute (inverted)
Low absolute (inverted)
High absolute
with hold function
Low absolute
with hold function
High deviation
with hold function
Low deviation
with hold function
High deviation
with hold function (inverted)
Low deviation
with hold function (inverted)
High
Low deviation
with hold function
High
Low band
with hold function
High absolute alarm
with hold function (inverted)
Low absolute alarm
with hold function (inverted)
Pattern ending alarm
Function
Alarm type
Hysteresis
(Notice) : Display lamp will be ON when output OFF in inverted type.
