3) Setup of Start Set Value
: In the program temperature controller, start temperature value can be set up. It could either start from
the current temperature in the beginning of the first operation of the system or can even start from the
set value in the start set value.
4) Selection of Start Type
: Select the start conditions when operating the program.
If process value (PV) is selected, it starts from the currently sensed temperature and if the start set
value (SSV) is selected, it starts from the temperature set up in the start set value item.

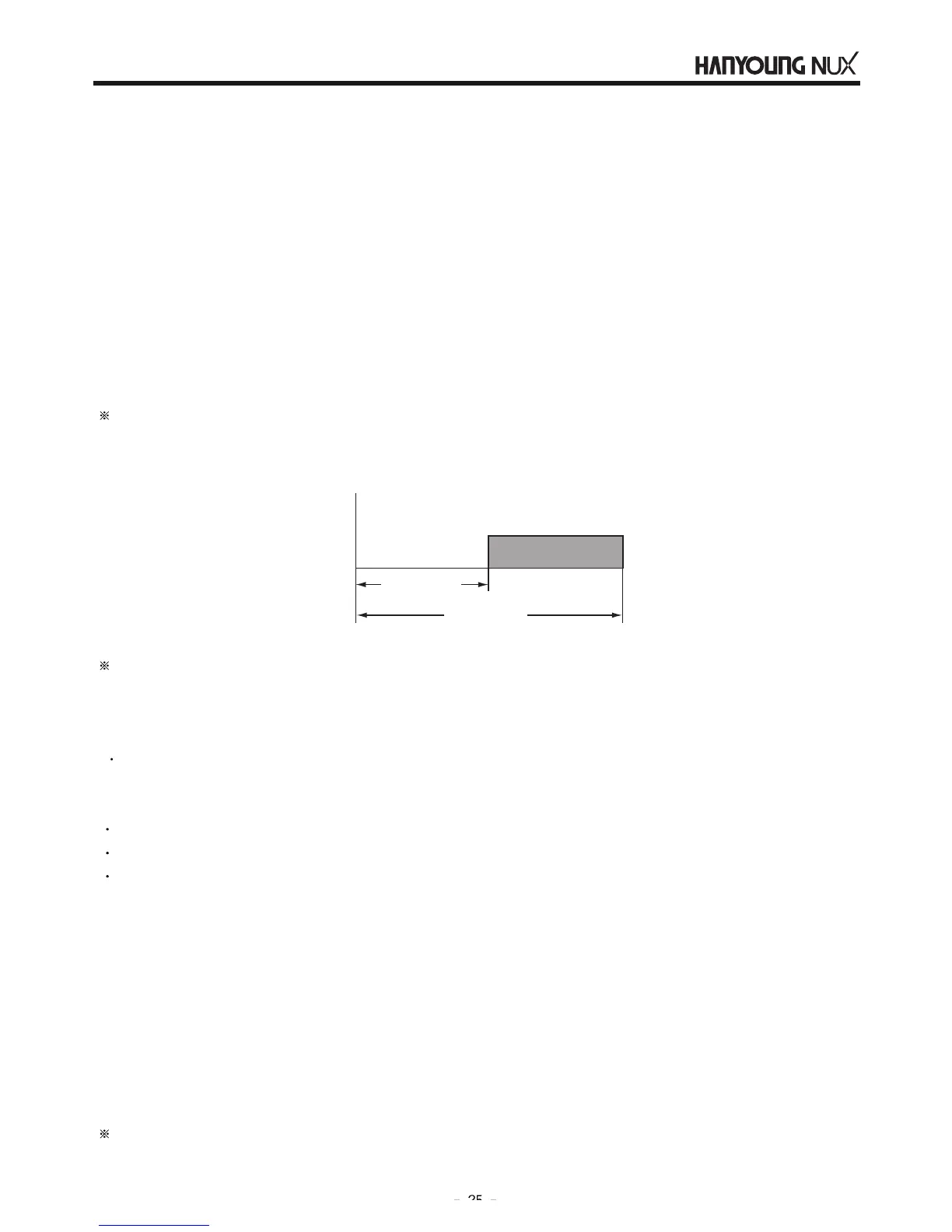

5) Setup of n pattern time signal-1 ON time
: It turns ON after the set time of time signal -1 of already selected pattern.
6) Setup of n pattern time signal -1 OFF time
: It turns OFF after the set time of time signal -1 of already selected pattern.
The ON time and OFF time setup of n pattern time signal-2 is the same as the setup method of time
signal -1.
Output turns ON after the setup time in the ON time mode and the output turns OFF after the setup
time of OFF time.
7) Program Completion Mode:
When pattern 1 is selected as mode upon the completion of pattern 1, the system operates until the
program repetition frequency set in the system and then resets. However, when HOLD is selected, the
last set value is maintained.
When pattern 2 is selected upon the completion of pattern 1, patterns 1 and 2 get connected.
When pattern 1 is selected upon the completion of pattern 2, pattern 1 will be connected.
When pattern 2 is selected upon the completion of pattern 2, it operates repeatedly for the number of
RPT frequency. For example, when selecting the pattern 2 as mode upon completing the program
Pattern 1 and after setting 3 times for the program repetition frequency, patterns 1 and 2 will be operat-
ed once and then the pattern 2 will be operated twice.
8) Selection of n pattern and n segment PID group number: PID group can be applied to each pattern and
each segment of 4 types of PID group to be controlled. However, stable control result can be acquired
when group 1 is operated besides the peculiar situations.
9) Setup of Target Value: Set up the target temperature value for each pattern and segment under control.
10) Time Setup of n pattern and n segment: Set up the time that reaches or maintain the target tempera-
ture value for each pattern and segment under control.
Each segment can set up to 10 segments with the above method.
Operation (RUN)
Time signal
ON time
OFF time
