NP100

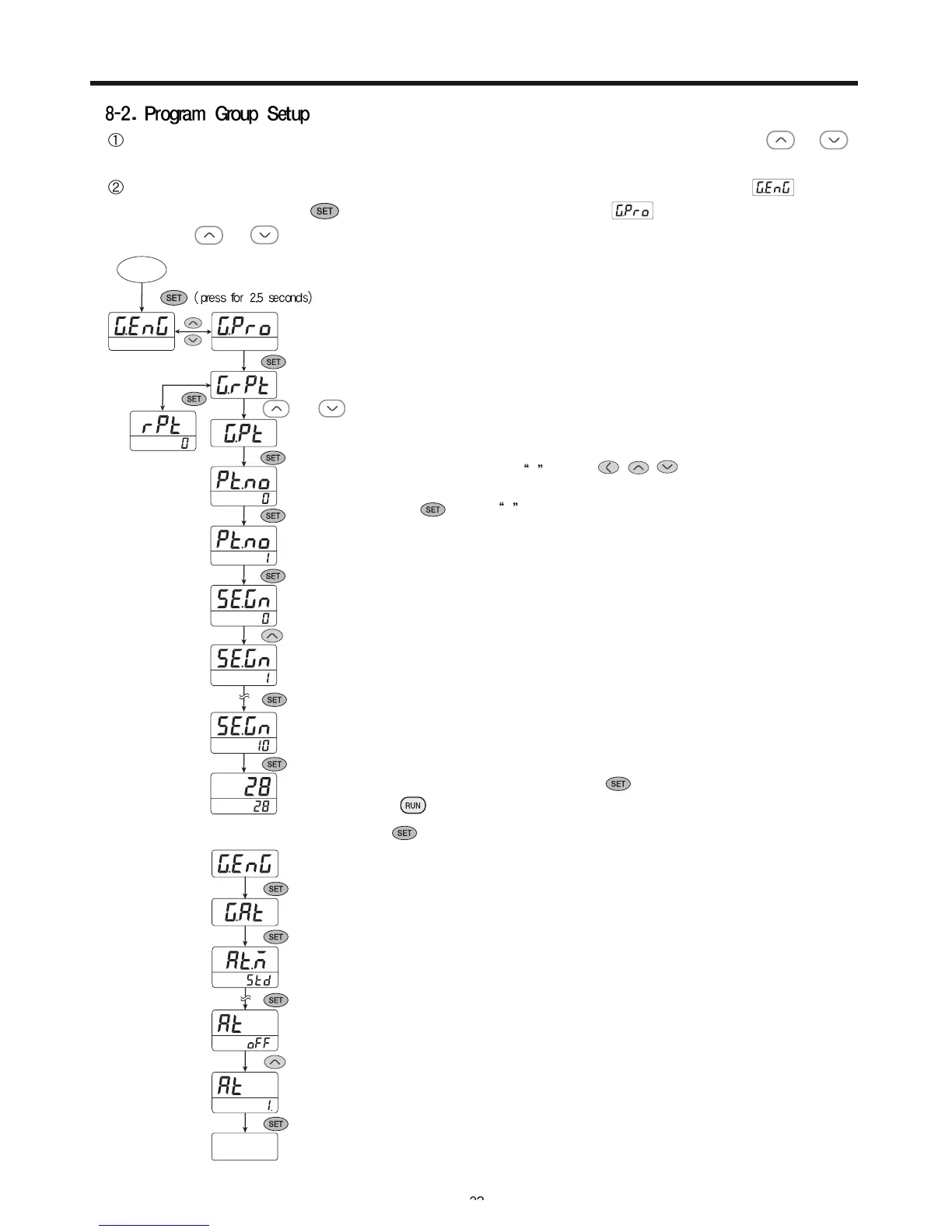

After “finishing the setup of the engineering group, go into the program mode by pressing or
on “Group mode”.
Also, on operation mode condition (initial mode when power is ON), engineering group will be
indicated when pressing for 2.5 seconds, and program mode will be represented when
pressing or .
Power
ON
Engineering group
Program groupt
(Repeat
time setup)
(pattern number is initially set 0 . Use buttons in order to
select the pattern number wish to set up. It indicates as a superior group
when pressing at the
0 setup condition.).
1 Pattern has been assigned.
See page 24 of “0” segment parameter of program setup.
Set up segment number 1. See 1 segment parameter.
Set up the next segment in the same way as the segment 1.
It turns to operation mode when pressing button for over 2.5 seconds.
here, press to turn to program.
or
Run
condition
Standard auto tuning has been selected as the setup item of auto tuning type
seleciton.
OFF has been selected as the setup item of auto tuning operation selection.
To execute the PID auto tuning, choose one group from 1 to 4, then auto
tuning will be executed (front AT indicator lamp will blink) and save the
operation value in the selected PID group. Program temporarily stops while
auto tuning is in process but the program continues on when the process
finishes.
To operate auto tuning, press button for over 2.5 seconds on program operation condition.
Auto tuning setup group is displayed.
Engineering group is displayed.
To Next Page
