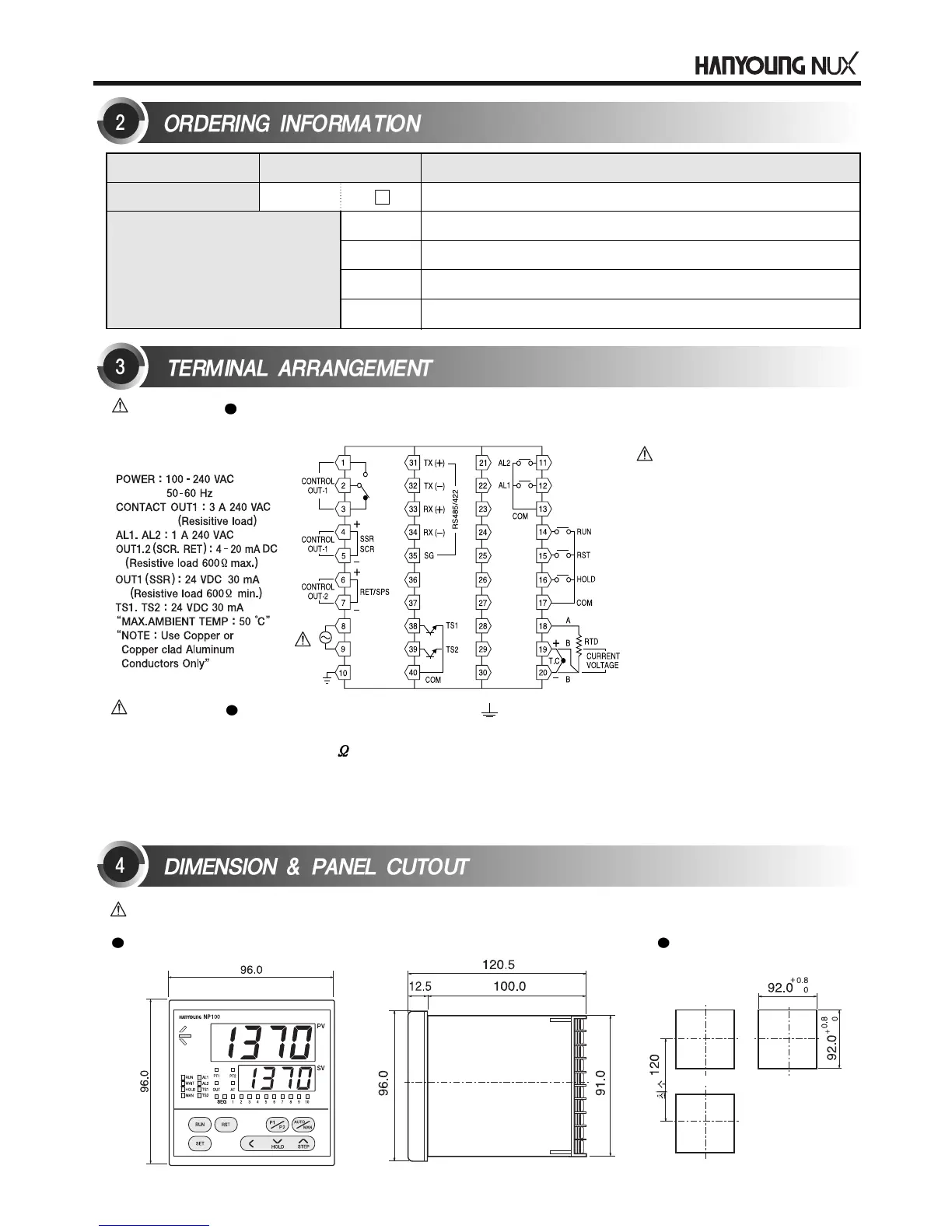

(Unit : mm)
Dimmension Panel cutout
NP100-
Model
Number
Function
1
0
1
2
3
Programmable Controller (96 X 96 mm)
None
Time signal 2 points
RS 485/422
Time signal 2 points +RS 485/422
Option
Caution Ground connection cable ( )
- Ground connection cable is a thick wire that is over 2 mm
2
in width. Wire with more than the third type
ground connection (below 100
ground connection resistance).
- The length of the ground connection cable must be within 20m.
- Ground 1 point from the ground terminal.
- Do not spread cable between the ground terminals.
Caution Wiring
Main power must be off before wiring
Operate after disconnecting the
main power and confirming the
discontinuation of power to the
cable connected to the main
power by using a tester. There
is danger of possible electric
shock. Avoid any contact with
the terminal when sending
electricity.
Caution
Use panels with 2 ~ 10 mm tickness steel sheet.
Caution
