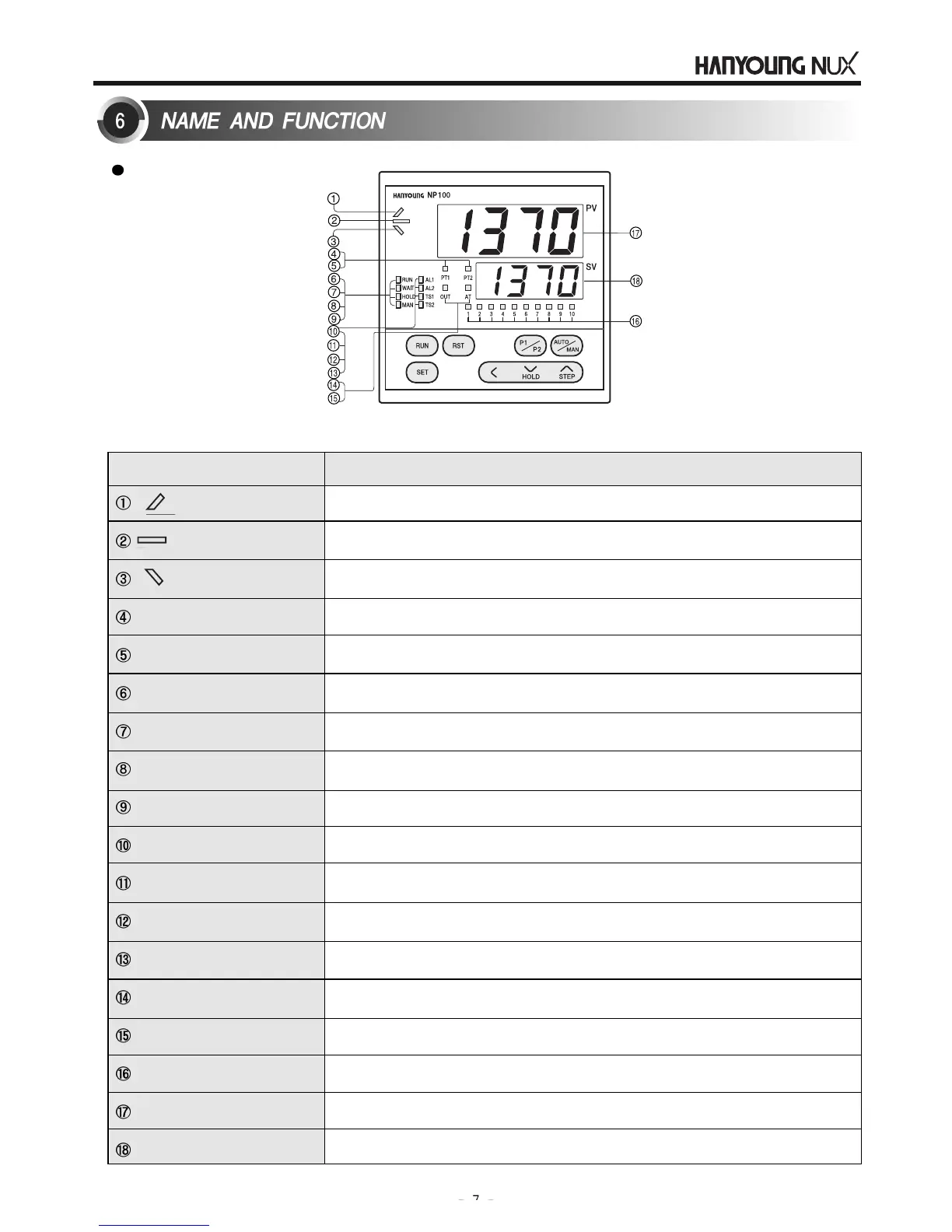

6-1. The function of individual LED
Function description
display lamp
display lamp
display lamp
PT1 display lamp
PT2 display lamp
RUN display lamp
WAIT display lamp
HOLD display lamp
MAN display lamp
AL1 display lamp
AL2 display lamp
TS1 display lamp
TS2 display lamp
OUT display lamp
AT display lamp
SEG1~10 display lamp
PV display lamp
SV display lamp
Lights during the ascending section of the segment.
Lights during the soak section of the segment.
Lights during the descending section of the segment.
Lights during the pattern 1.
Lights during the pattern 2.
Lights during the program run.
Lights when WAIT operation during the program run.
Lights when HOLD operation during the program run.
Lights during the manual control.
Lights during the Alarm 1 operation.
Lights during the Alarm 2 operation.
Lights during the time signal 1 operation.
Lights during the time signal 2 operation.
Lights when the control output is ON.
Lights during the auto tuning.
Display present segment during the program run.
Display process value.
Display set value.
Function
LED display
