Signal
Setup range
Display
condition
Initial value
PID setup group
Auto / 50.0~200.0 %
OFF / P1Gr ~P4Gr
0.1~999.9 %
OFF / 1~6000 sec.
OFF / 1~6000 sec.
-5.0 ~ 105.0 %
Always
Integral
time OFF
Auto
0
5.0 %
240 sec.
60 sec.
50.0 %
Anti Reset wind up
PID indication group
n. Proportion
n. Integral
n. Differential
Manual reset
Item
1) Anti Reset Wind Up
: Anti Reset Wind Up operation is carried out to prevent over-integral when the control output value
reached the limitation. Integral time is not
0 and integral time executes the ARW operation under the
following conditions when AUTO is selected for the auto tuning execution from the auto tuning setup
group.
DV 0 & output value maximum restriction
DV<0 & output value maximum restriction
2) Selection of PID Indication Group Number
: The PID control integer possesses 4 types and the operated PID integer can indicate and set up the
items when selecting manual operation. The operative integer of the PID group in agreement with the
selected number from the auto tuning selection in the auto tuning setup group is applied to each pat-
tern segment of 4 types due to the selection of pattern segment PID group number of segment #0 in
memory program setup mode.
3) n. Proportion
: If select PID 1 group (P1GR) from the setup item of PID indication group number selection, 1 group
proportion (1.p) with n. proportion is indicated. Here, the proportional value of the operated 1 group is
indicated and can be changed and set up manually.
4) n. Integral Time
: According to the PID indication group number selection, 1~4 group integral time will be indicated in
the setup item and will be automatically remembered and manually changed/set up due to the auto
tuning.
5) n. Differential Time
: According to the PID indication group number selection, 1~4 group differential time will be indicated in
the setup item and will be automatically remembered and manually changed/set up due to the auto
tuning.
6) Manual Reset
: If “0” is selected as the integral time, variation occurs in control due to proportionate movement. Such
variation can be eliminated through manual reset. (Parameter appears only when the integral time is
set up “0”)
Setup below items.

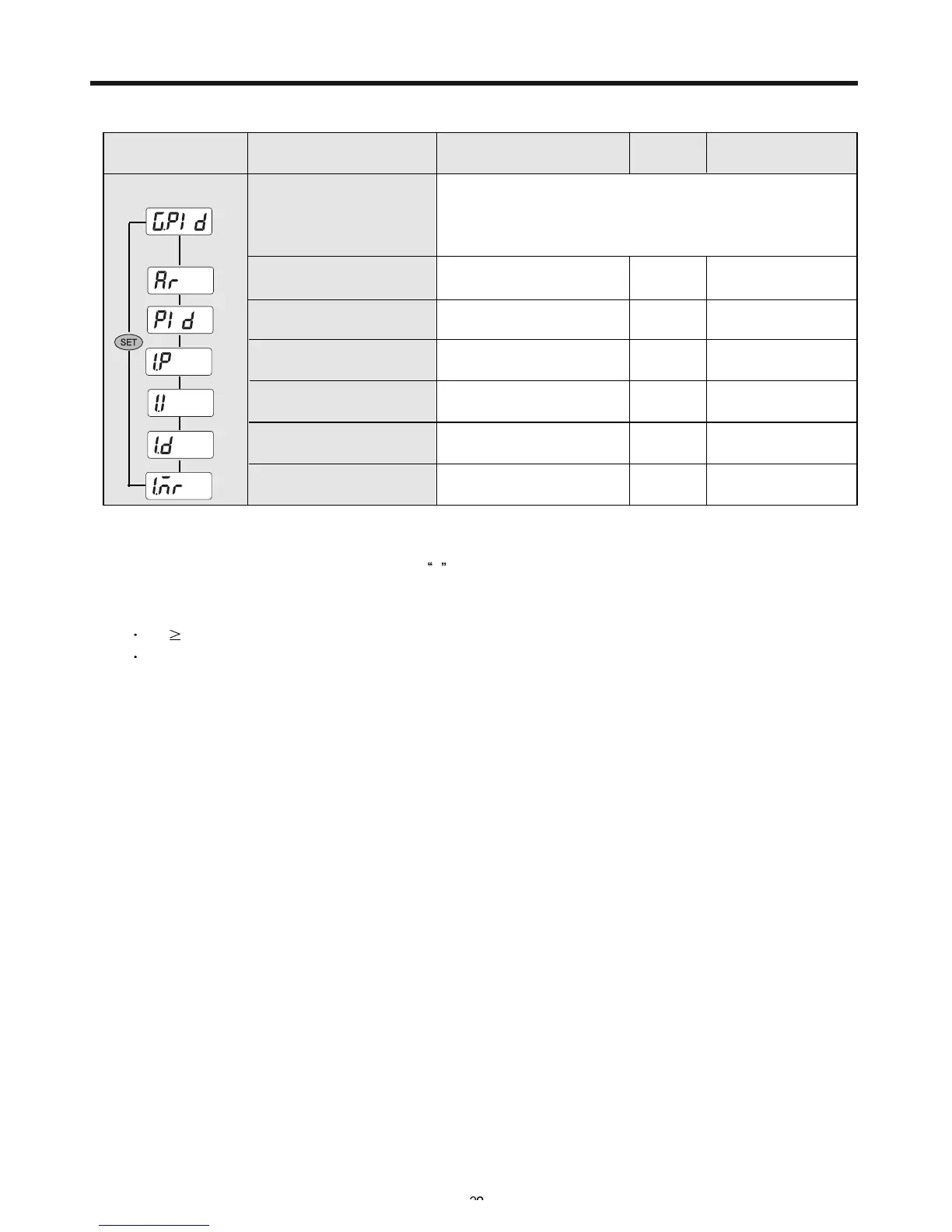

8-1-7. PID Setup Group
NP100
P.I.D
control
Always
Always
P.I.D
control
