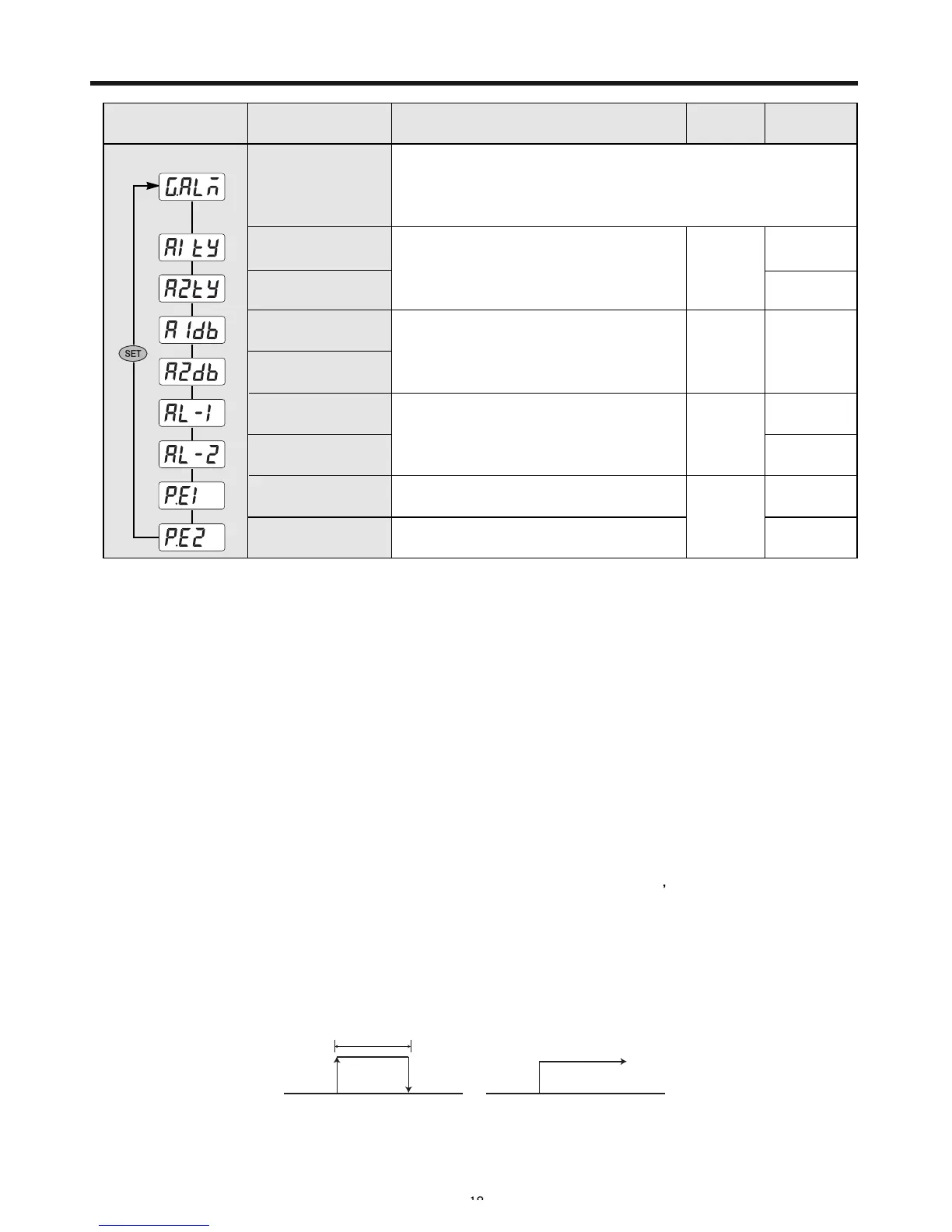

Signal
Setup range
Display
condition
Initial value
Alarm setup
group
0.0~100.0 %(EUS)
Setup below items.
Absolute value : 0.0~100.0 %(EU)
Deviation value : -100.0~100.0 %(EUS)
OFF,PUL,CONT
0.5 %
0.0
0.0
3
OFF
Alarm 1 selection
Alarm 2 selection
Dead band of
Alarm 1
Dead band of
Alarm 2
Alarm 1 set value
Alarm 2 set value
Patter 1 End
Patter 2 End
OFF
Item
4
NP100
1) Alarm - Select 1 or 2 Types
: Select code number of the Alarm type from the “Alarm Type and Code” list.
2) Alarm - Set up Dead Band 1 or 2
: Set the ON-OFF width (dead band) when operating Alarm 1 and 2.
3) Alarm - Set Value of 1 or 2
: Set value for Alarm 1 & 2.
4) Pattern 1 ending signal
: Since there is no separate output, pattern 1 ending signal setup item will be indicated when selected
number 21 from the Alarm 1 type selection. (However, pattern-1 ending signal will not activate when
pattern - 2 is selected from the setup item at the completion of the program.)
5) Pattern 2 ending signal
: Pattern-2 ending signal setup item is indicated when #21 is selected from the Alarm 2 type selection.
(Pattern ending signal setup item will not be indicated if #21 is not selected.)
Here, if OFF is selected from the pattern ending signal setup item, it doesn
t activate, PUL allows
output to be on for about 0.5 seconds and lastly if CONT. is ending, already setup alarm output will
continue on.
Press RST Key to remove the alarm.
EX) PUL selection
0.5 sec.
ON
ONOFF
Option
Option
code 21
selection
OFF,PUL,CONT
OFF / 1~22
Refer to “Alarm type and code”
(31, 32 page)
CONT selection
