Installation
Warning
Explosion Hazard: Do not locate this
sterilizer in areas where explosive
anesthetics are used or stored. An
explosion could occur, causing
possible equipment damage and
injury for personnel.
Note
The MC8 weighs 55 lbs. (25 kg);
the MC10 weighs 70 lbs. (32 kg).
The sterilizer should be lifted by two
persons and transported on a cart.
Note
Do not operate this sterilizer within
6 ft. of patient treatment point.

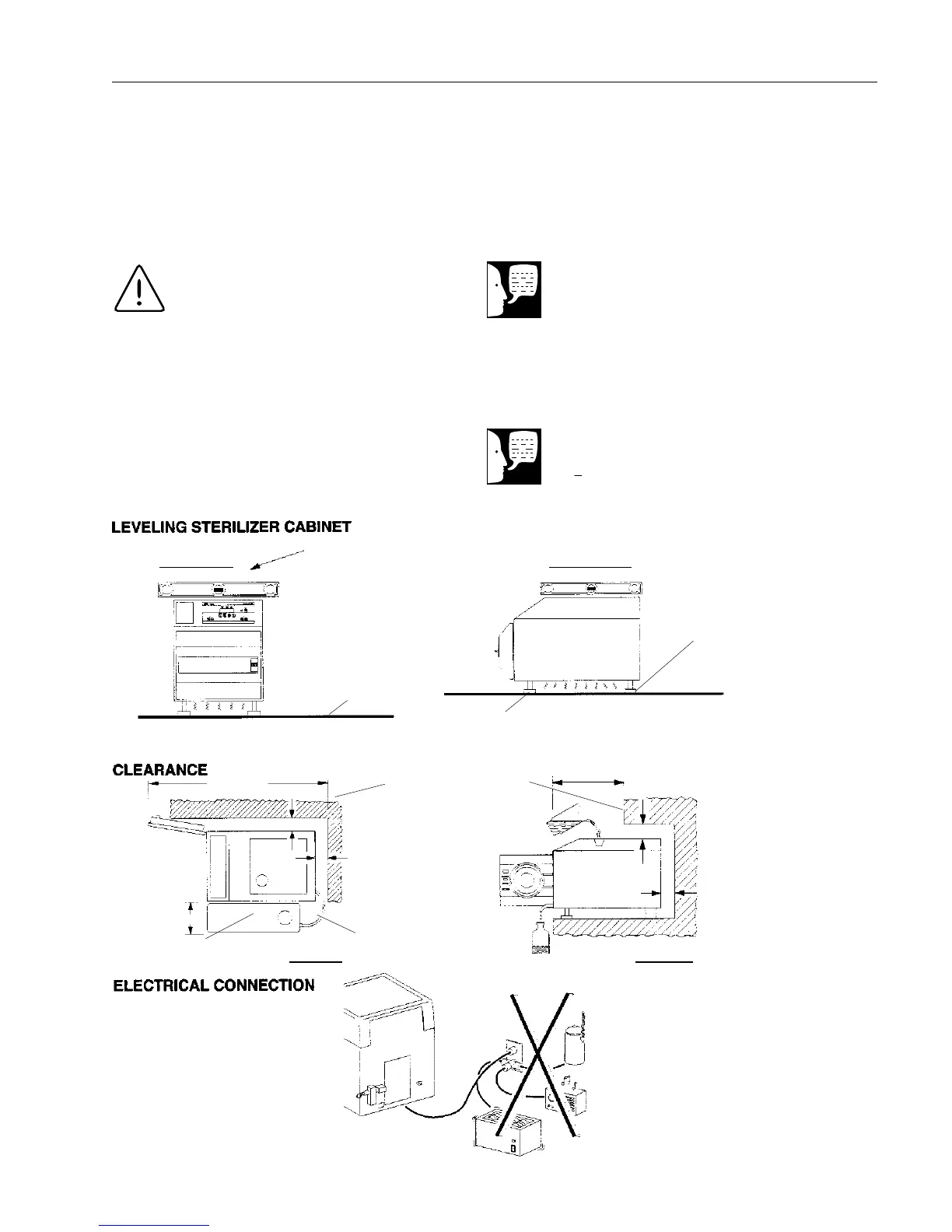

Side To Side
Level Cabinet
(Do Not Level
Chamber)
Front To Back
Shim Under 1 Rear
Foot If Side To Side
Leveling Is Required
Adjustable Feet
Overhang
Should Not
Extend
Over Fill
Funnel
100°F (38C)
Possible
Heat
Resis-
tant
Surface
MC8 - 3”
MC10 - 39
1/2
”
16”
6”
3”
3”
3”
3”
Air
Circulation
Area
Top View Side View
Cooling
Tank
Non-Recirculating
Option Only
Connect To 15 Amp
Separate Circuit
To Next Page
