HARVEY Hydroclave MC8 - Non-Recirculating Water Accessory Installation

42
INSTALLATION
Non-Recirculating Water Accessory Installation

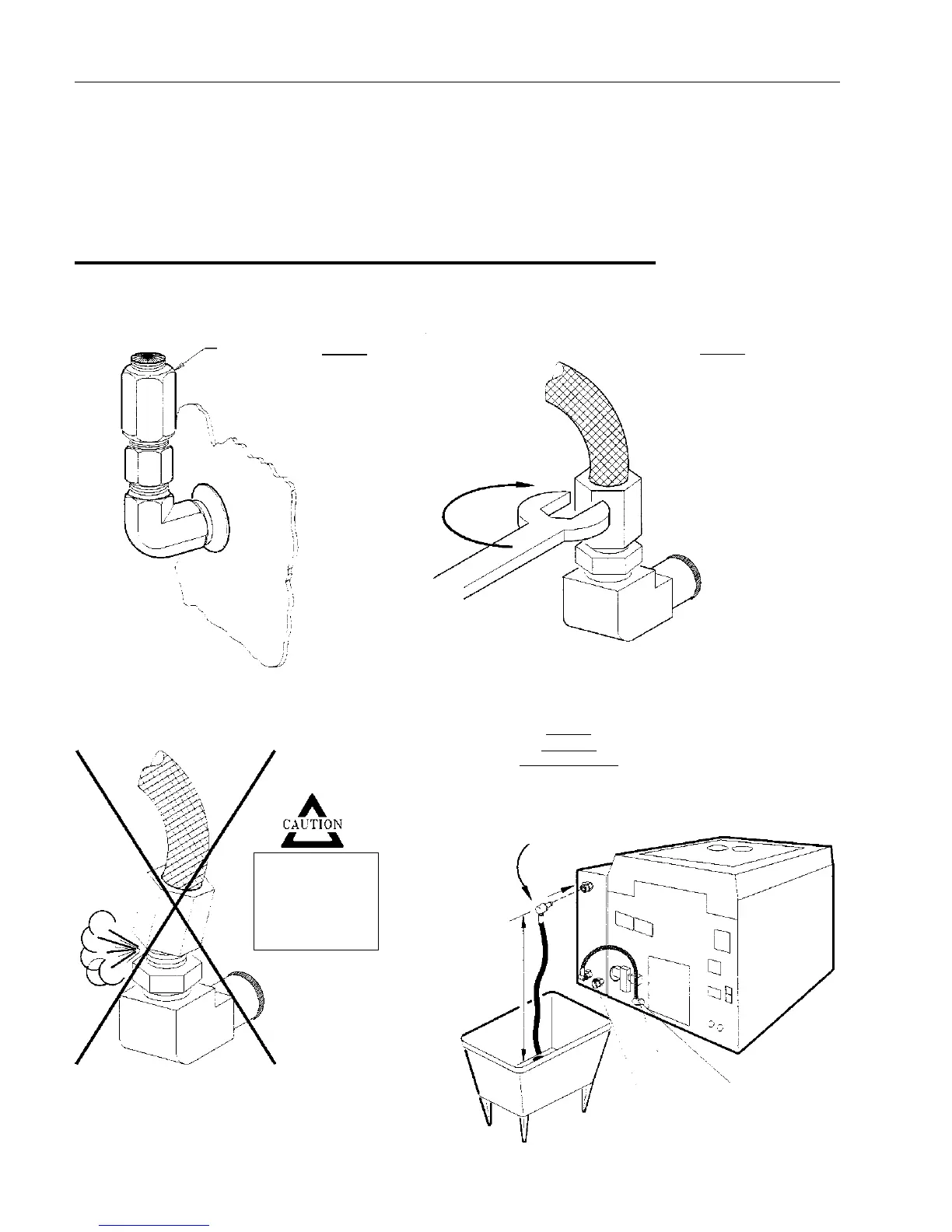

Step 1
Remove cap from
non-recirculating
discharge port on
rear of sterilizer
and discard.
Step 2
Attach discharge hose
assembly from cooling
tank to non-recirculating
discharge port.
Step 3
Automatic
Optional Overflow
Push the overflow tube
into the overflow
connector at the top
of the cooling tank
until it “clicks.”
Tighten nut finger
tight, plus 1/4 turn
with wrench.
1/4 Turn
Tank Drain
Connector
Discharge
Hose
Non-Recirculating
Discharge Port
Cap
Be sure connection
nut is started
straight. Cross
threading will cause
leaks and damage
the nut and fitting.
