Voltage Conversion
(Dual Voltage Models Only)
1. Remove the left side panel (4 screws),
the pressure relief valve deflection
cover (MC8 Only — 1 screw), and the
rear access panel (2 screws).
2. Remove fuses from fuseholders.
Discard or save for future
reconversion.
Appendix

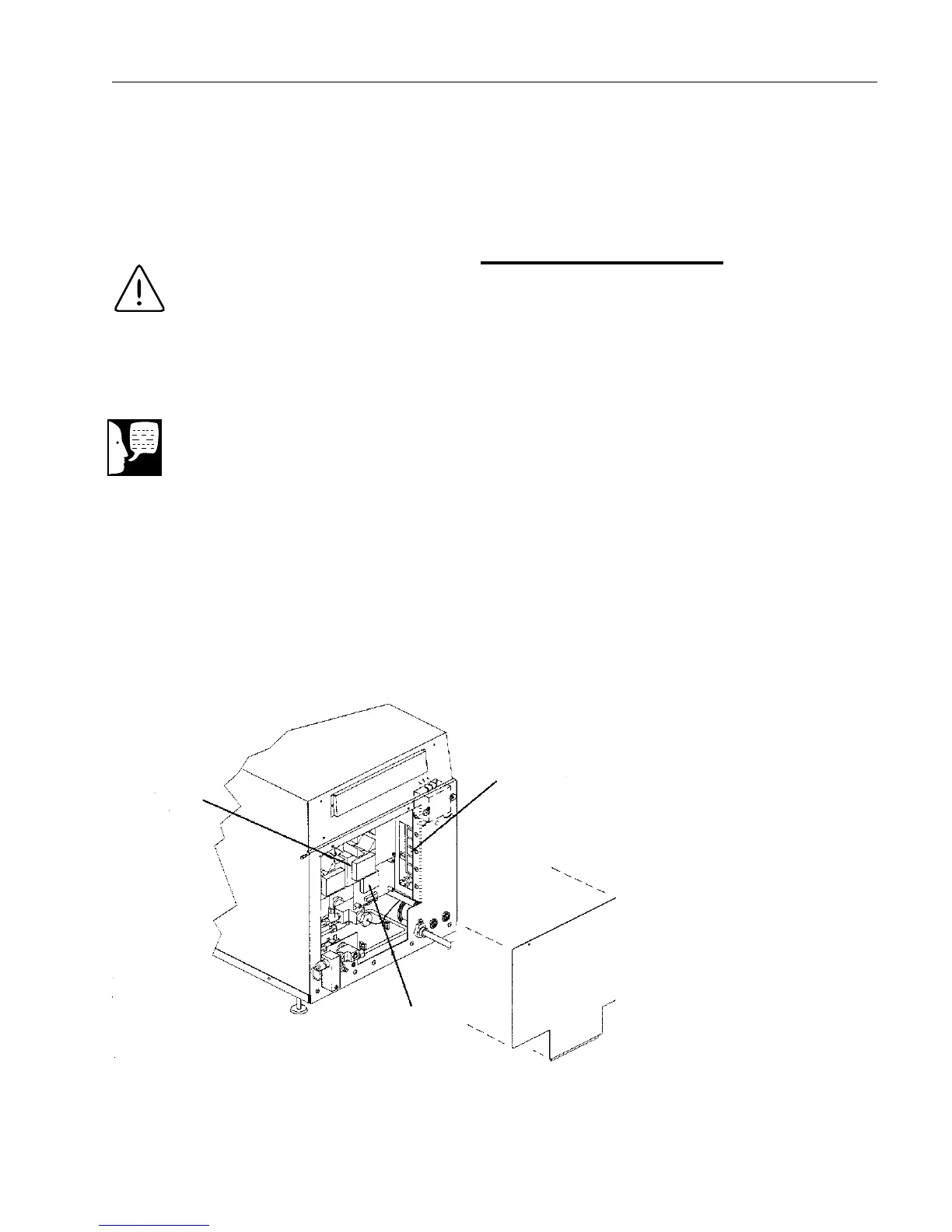

Figure 31
Removing access panels
Warning
Unplug power cord before removing
any access panels. Voltage
conversion should be performed by
a qualified service technician.
Note
Dual voltage models have both
voltages listed on the rating plate.
Do not attempt to convert a unit that
does not have two fuseholders or is
not listed as a 115V/230V model.
Power
I/O Board
Terminal
Block
Transformer
PC Board
(MC10 Printer
Option)
