HBM Spider8 - Page 58

9
15
1
8
15-pin socket for
transducer connection
Spider 8: Channels 0-3
(optionally 4-7)
D-8
Connecting Ý Connecting transducers
Spider8

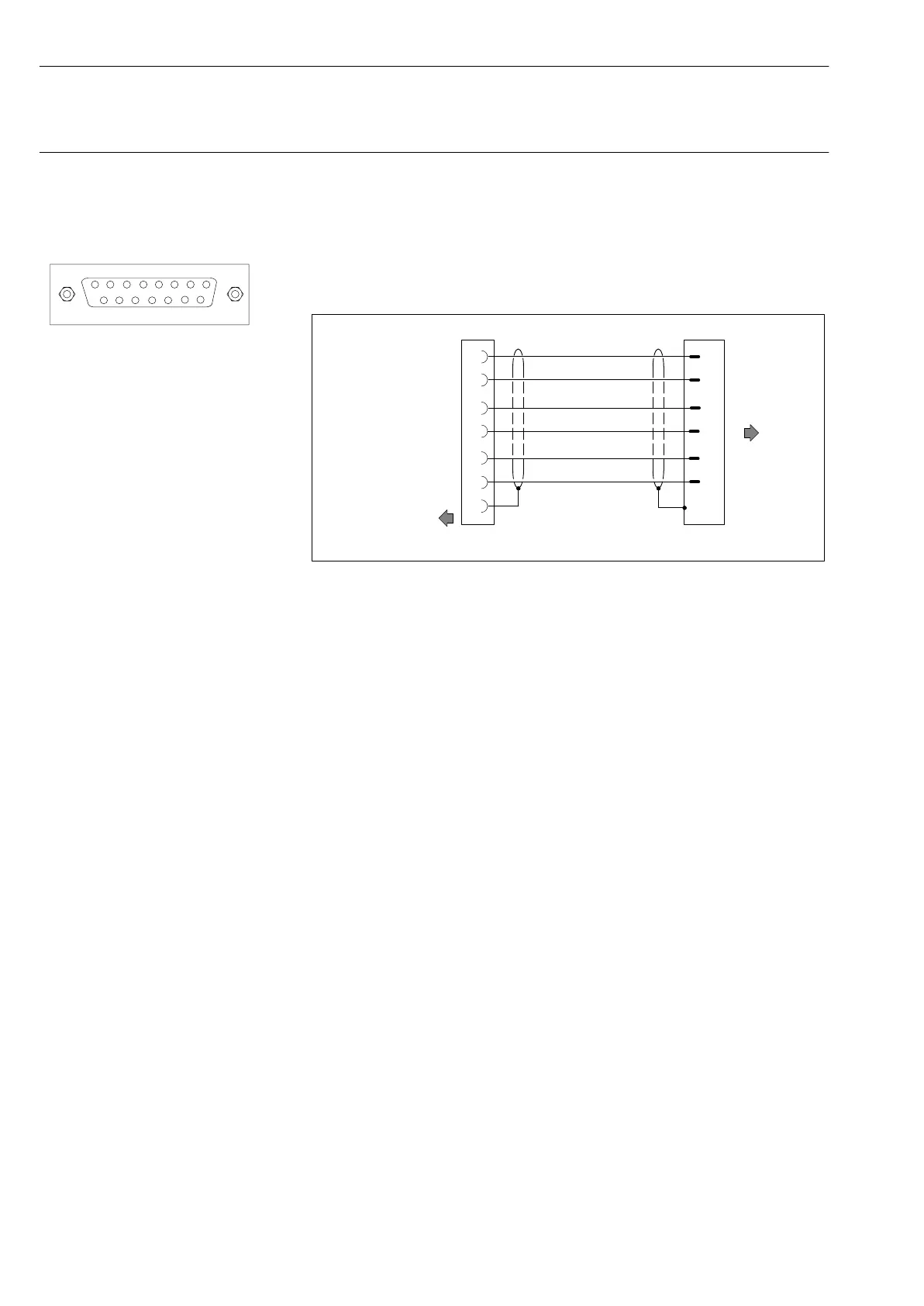

D An MS-connector is connected to the transducer cable:
Use adapter cable 133A.
wh
rd
bk
bu
gn
gy
5
6
8
13
12
15
sub-D
connector
15-pin
Length of cable: 0.3m
Diameter of cable: 7.5mm
Adapter cable 133A
Spider8
Transducer
B
C
A
D
F
G
E
MS3101A
16S-1S
Coupler socket 7-pin
Bridge excitation voltage
Bridge excitation voltage
Measurement signal
Sensor circuit
Sensor circuit
Measurement signal
Fig. D 2: Adapter cable with 7-pin MS-coupler socket
