D-9
Connecting Ý Connecting transducers
Spider8

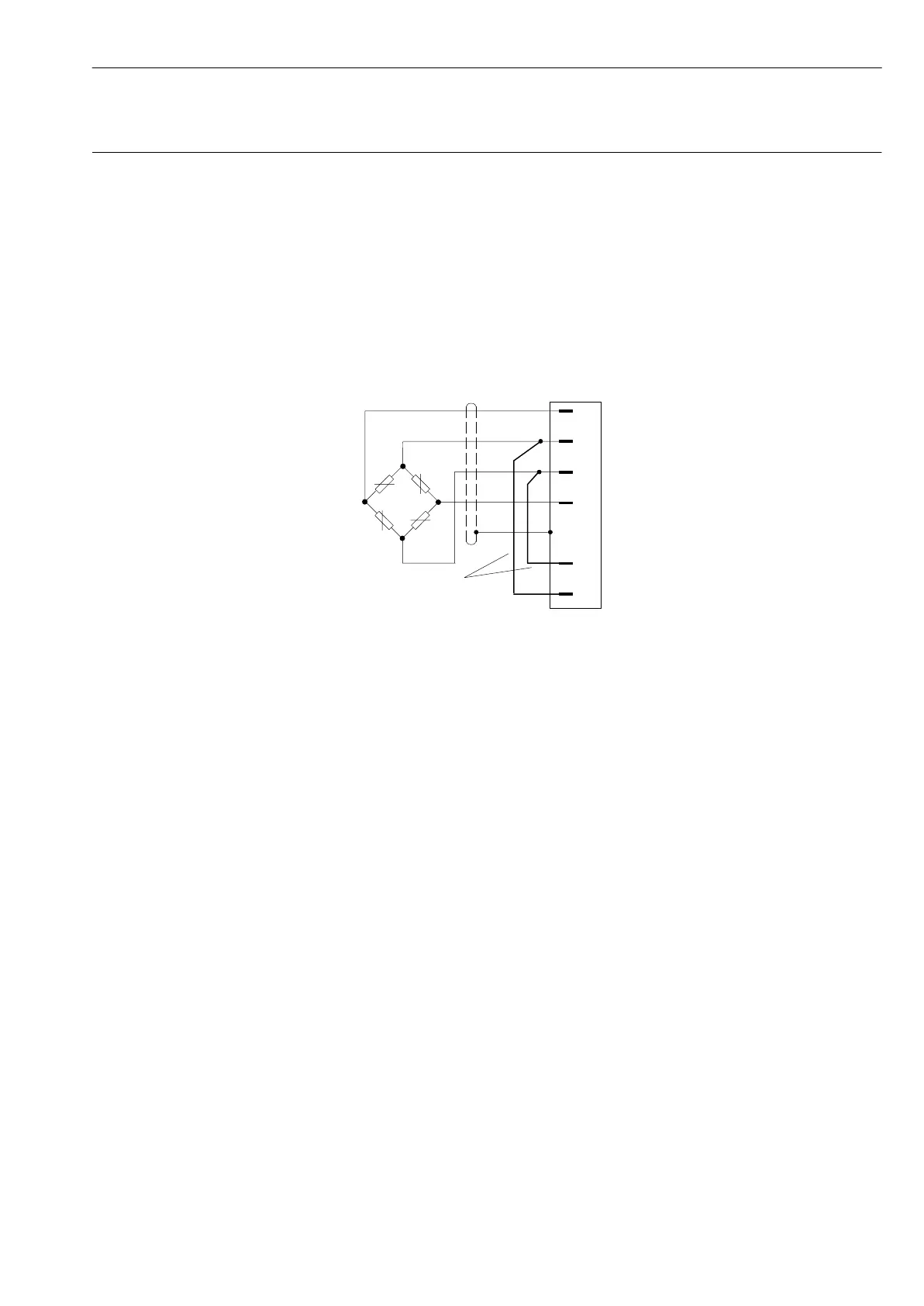

Important: transducers using four-wire connection
If connecting a transducer with 4-wire cable, you must link the
sensor circuit to the appropriate bridge excitation circuit in the
transducer connector (sensor circuit (-) to bridge excitation
voltage (-) and sensor circuit (+) to bridge excitation voltage (+).
A cable must only ever be extended using six-wire connection.
Feedback
bridges
1
2
4
3
Measurement signal (+)
Bridge excitation voltage (+)
Sensor circuit (-)
Sensor circuit (+)
Bridge excitation voltage (-)
Measurement signal (-)
Cable shielding
1)
5
6
8
13
12
15
wh
rd
bk
bu
gn
gy
