HBM T10FS User Manual

Supplementary technical information
110 A0785-150 HBM: public T10FS

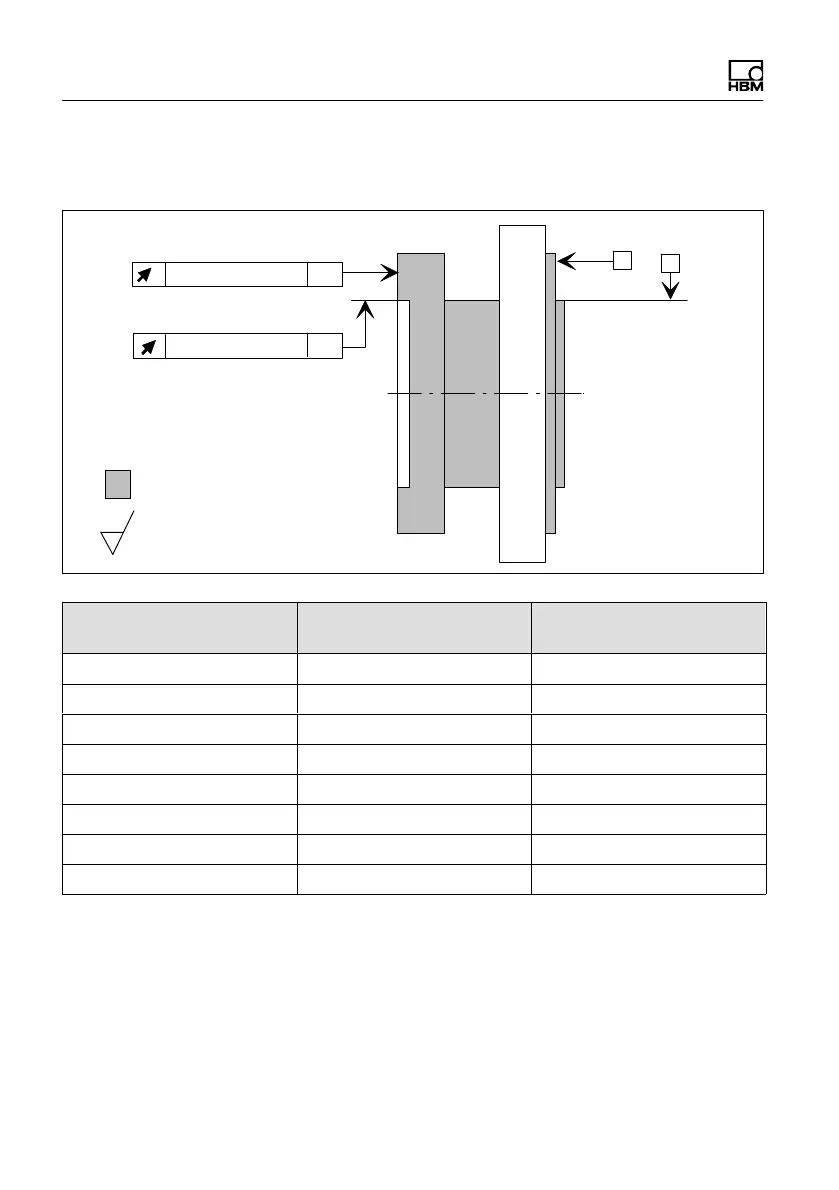

14.2 Axial and radial run‐out tolerances
Internal centering
A
Axial run‐out AB
B
Radial run‐out AB
Hardness 46 ... 54 HRC
Surface quality of the run‐out
and concentric surfaces (A, B
and AB)
0.8
Measuring range Axial runout tolerance
(mm)
Radial run‐out tolerance
(mm)
100 N⋅m 0.01 0.01
200 N⋅m 0.01 0.01
500 N⋅m 0.01 0.01
1 kN⋅m 0.01 0.01
2 kN⋅m 0.02 0.02
3 kN⋅m 0.02 0.02
5 kN⋅m 0.02 0.02
10 kN⋅m 0.02 0.02
To ensure that the torque flange retains its
characteristics once it is installed, we recommend that
the customer also chooses the specified form and
position tolerances, surface quality and hardness for the
connections provided.
