Mechanical installation
32 A0785-150 HBM: public T10FS
5.7 Mounting the slotted disc (optical
speed measuring system)
To prevent the slotted disc of the optical speed
measuring system being damaged in transit, it is not
mounted on the rotor in the case of measurement flanges
with option 2, code L (nominal (rated) speed 8000 min
-1
to 15000 min
-1
). Before installing the rotor, it must be
attached in the shaft train. The associated speed sensor
is already mounted on the stator.
The requisite screws, a suitable screwdriver and the
screw locking device are included in the list of
components supplied.
Slotted disc

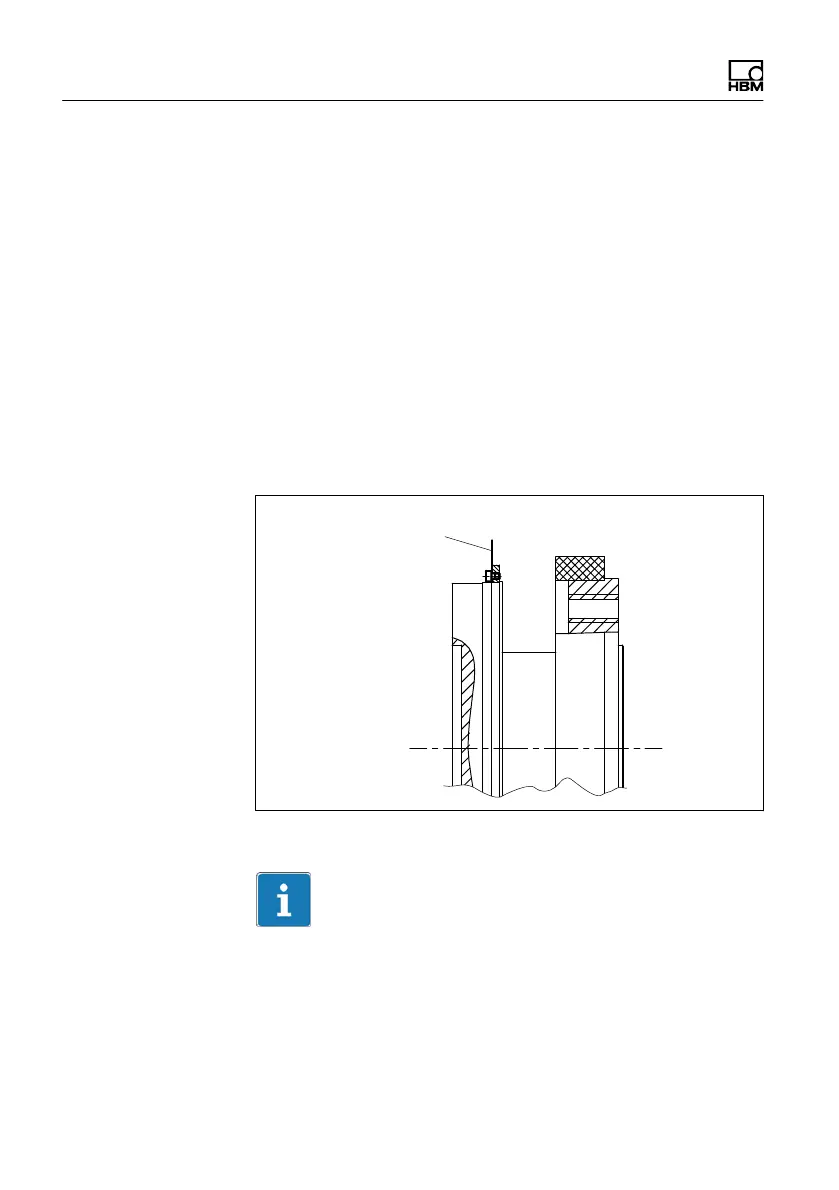

Fig. 5.7 Mounting the slotted disc on the rotor
Important
At all stages of the mounting operation, be careful not to
damage the slotted disc!
