62 A0785-150 HBM: public T10FS

8.4 Functional testing

8.4.1 Power transmission

If you suspect that the transmission system is not

working properly, you can remove the stator cover and

test for correct functioning. If the LED is on, the rotor and

stator are properly aligned and there is no interference

with the transmission of measurement signals. When the

calibration signal is triggered, the LED shines more

brightly.

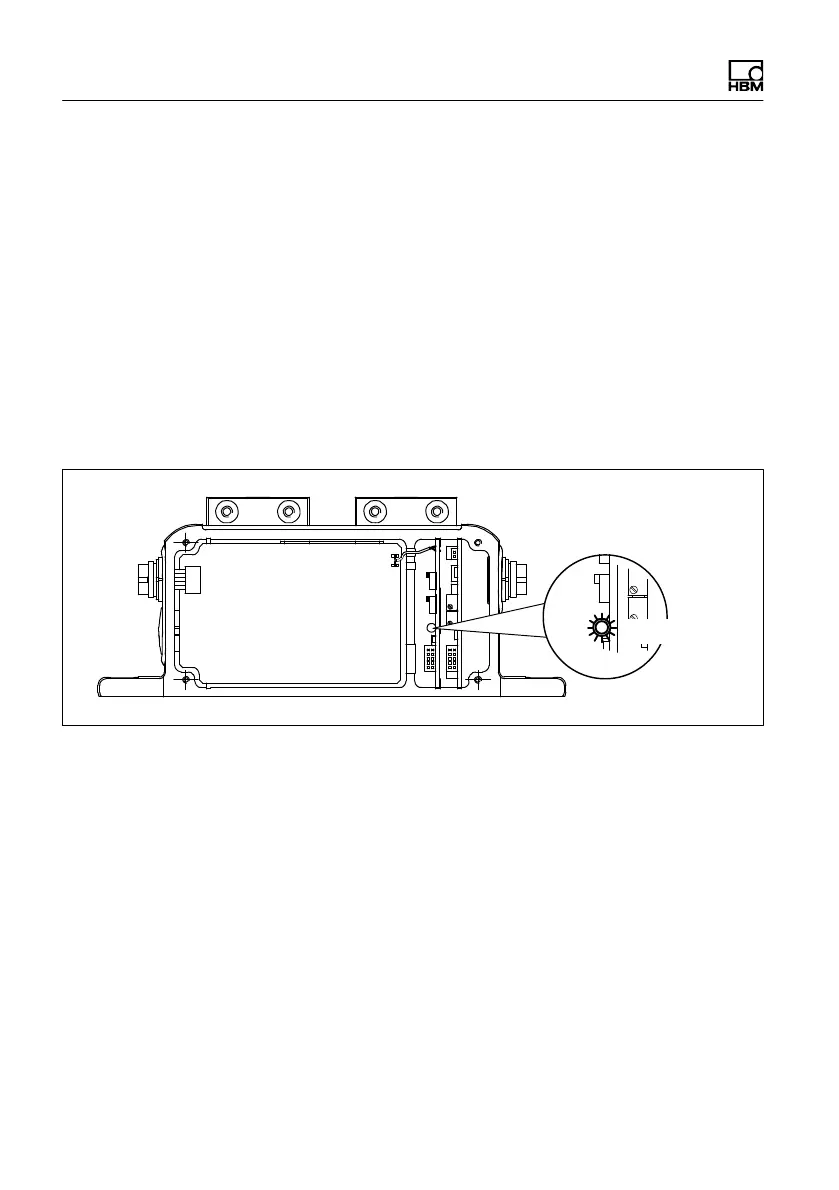

Control LED

Fig. 8.5 Power transmission function test

8.4.2 Testing the optical speed module

When required, you can test the correct functioning of

the speed measuring system.

 Remove the cover of the stator housing.

 Turn the rotor by at least 2 min

-1
