Settings
72 A0785-150 HBM: public T10FS
S6
Switch S6
On Off
Doubling the pulses

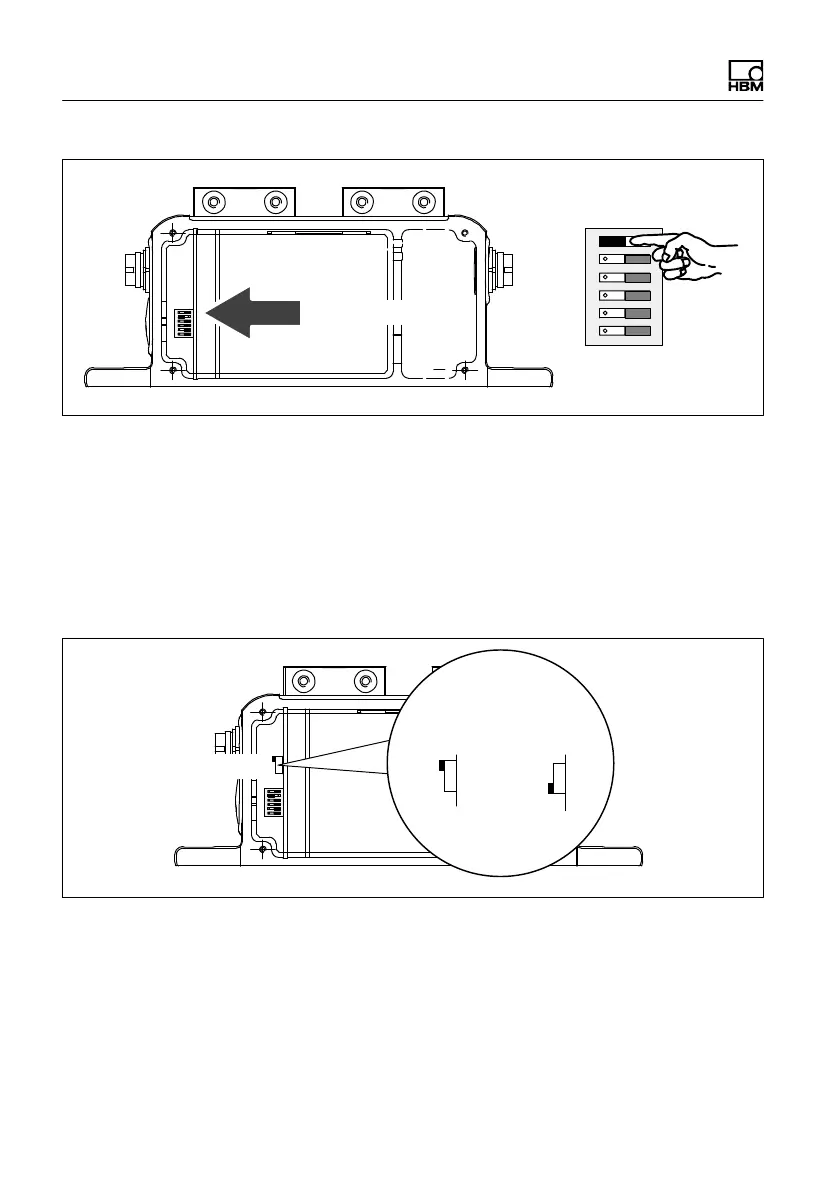

Fig. 8.12 Switch for doubling the pulses
8.8 Type of speed output signal
You can use switch S7 to change the symmetrical 5 V
output signal (factory setting) to an asymmetrical signal
of 0 V ... 5 V.
Switch S7
asymmetricalsymmetrical
Pos.1
Pos.2
Fig. 8.13 Switch S7; symmetrical/asymmetrical output signal
