Mechanical installation
34 A0785-150 HBM: public T10FS
5.8 Fitting the mounting elements (speed
measuring system)
Three mounting elements with screws are included with
the torque flange to prevent the speed sensor being
damaged during installation. The mounting elements hold
the rotor centrally in the antenna ring, making installation
easier and safer.
Important
The mounting elements are only an aid to installation and
must be removed before the initial operation of the torque
flange!
Mounting element
Fastening screw
1
2
3

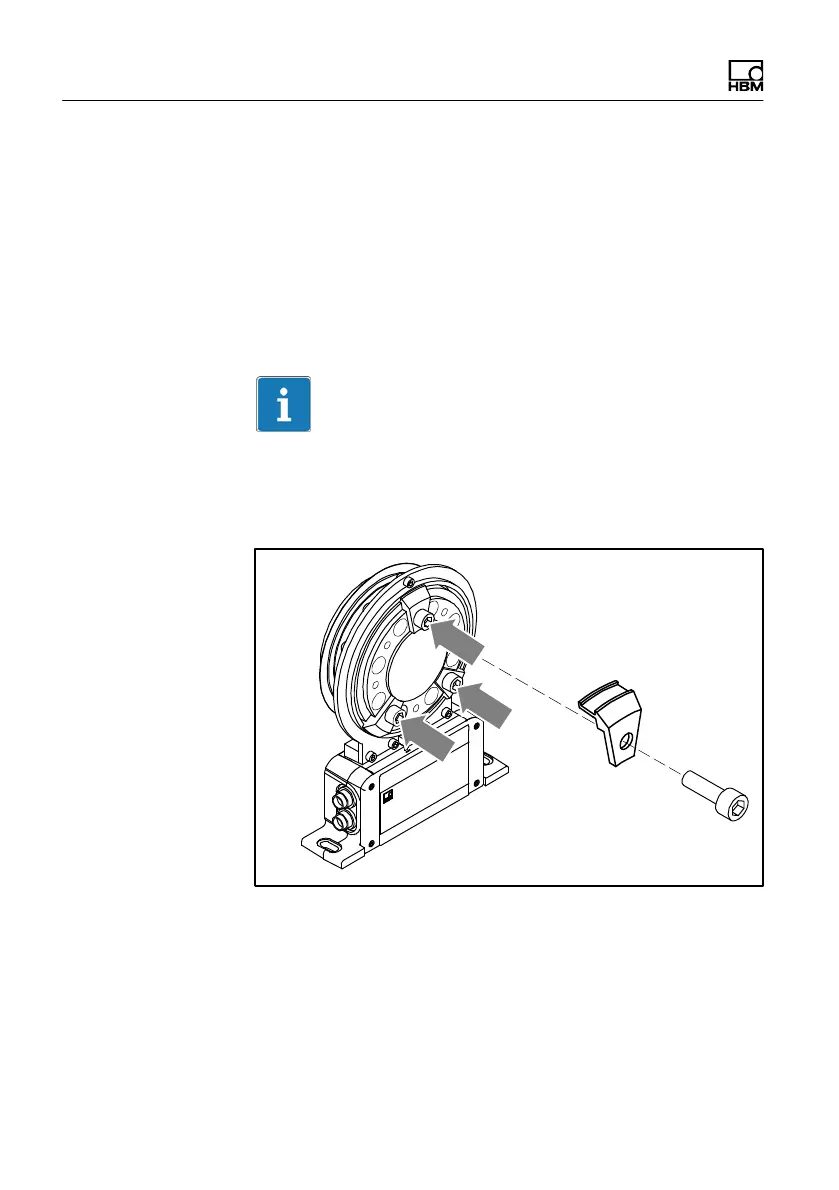

Fig. 5.8 Inserting the mounting elements
