Dimensions
T10FS A0785-150 HBM: public 85

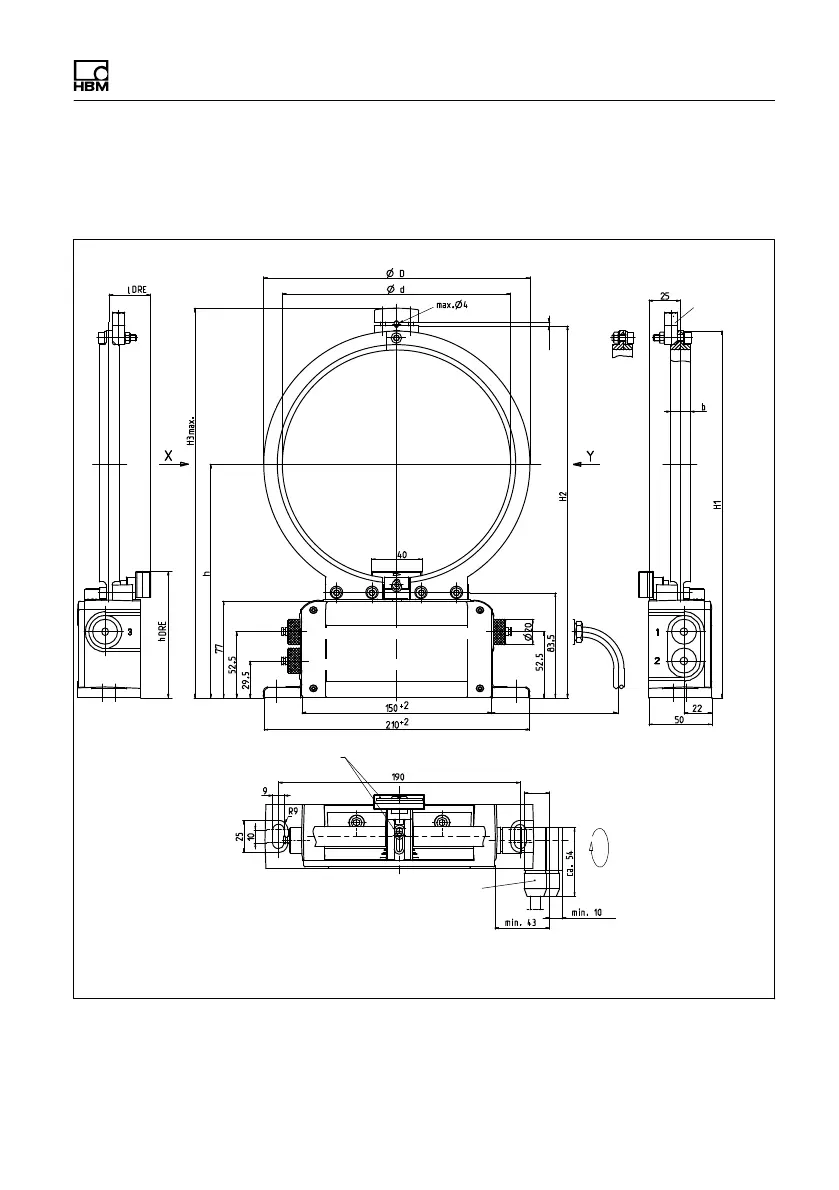

11.4 Stator dimensions with the magnetic
speed system
For the speed measuring
system option only
Clamp fixture
not mounted
as standard!
Standard
screw fitting
Side view Y
Side view X
Top view
1)
For the speed measuring system option only
2)
Does not apply to version KF1
3)
Space for connection cable with connector
Accuracy of the cast base sizes as per DIN 1688-GTA 14/5
ca. 100
3)
Connector 1
Connector 2
1)
Connector 3
2)
Cable jack adjustable
in 4 angular positions
Space for
mounting and
dismantling
Space for the
connected state
Accessories!
Cable socket
7 or 8 pin
90° cable entry
approx. 3
approx.
∅20
