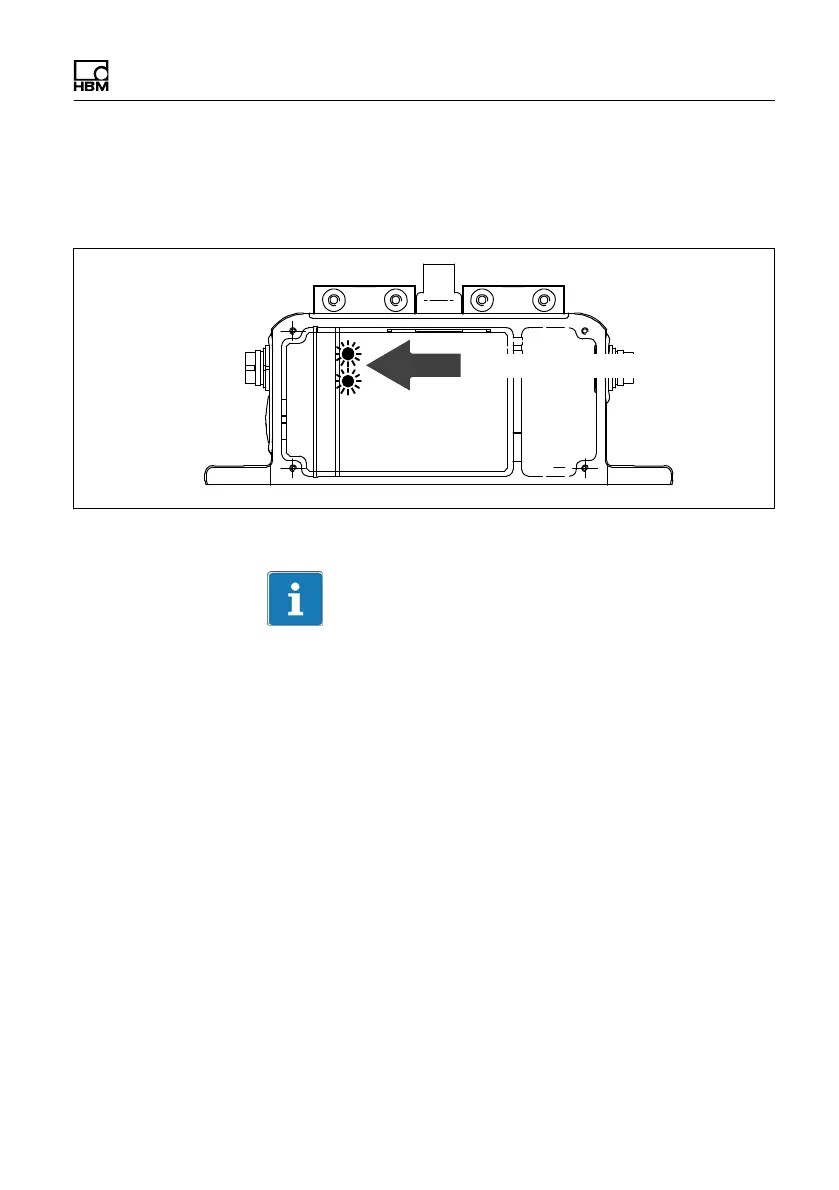

If both the control LEDs come on while you are turning
the rotor, the speed measuring system is properly
aligned and fully operational.
Green
control LEDs
Fig. 8.6
Control LEDs of the speed measuring system
Important
When closing the cover of the stator housing, make sure
that the internal connection cables are positioned in the
grooves provided and are not trapped.
62
64
Table of Contents
Table of Contents
3
Safety Instructions
6
Markings Used in this Document
11
Symbols on the Product
12
Torque Flange Versions
13
Application
15
Structure and Mode of Operation
16
Mechanical Installation
18
Conditions on Site
19
Installation Orientation
20
Installation Options
20
Installation Without Dismantling the Antenna Ring
21
(Without Speed Measuring System)
21
Installation with Subsequent Stator Mounting
22
Installation Example with Couplings
23
Installation Example with Joint Shaft
23
Mounting the Rotor
24
Installing the Stator
27
Installing the Clamp Fixture
30
Mounting the Slotted Disc (Optical Speed Measuring System)
32
Fitting the Mounting Elements (Speed Measuring System)
34
Fixing the Mounting Elements
35
Mounting the Torque Flange with a Speed Measuring System
36
Aligning the Stator (Speed Measuring System)
38
Magnetic Speed Measuring System
38
Optical Speed Measuring System
42
Electrical Connection
44
General Information
44
FCC and IC Compliant Installation for US and Canada Installation Only
45
Shielding Design
47
Option 2, Code KF1
48
Adaptation to the Cable Length
48
Option 2, Code SF1/SU2
50
Supply Voltage
54
Calibration
56
Calibration Option 2, Code KF1
56
Calibration Option 2, Code SF1/SU2
57
Settings
58
Torque Output Signal, Code KF1
60
Torque Output Signal, Code SF1/SU2
60
Setting up the Zero Point
60
Functional Testing
62
Power Transmission
62
Testing the Optical Speed Module
62
Setting the Pulse Count
64
Magnetic Speed Measuring System
64
Optical Speed Measuring System
68
Vibration Suppression (Hysteresis)
70
Form of Speed Output Signal
71
Type of Speed Output Signal
72
Optical Speed Measuring System with a Reference Pulse
73
Loading Capacity
75
Measuring Dynamic Torque
75
Maintenance
77
Torque Flange Maintenance
77
Speed Module Maintenance
77
Magnetic Speed Measuring System
77
Optical Speed Measuring System
77
Dimensions
79
Rotor Dimensions
79
Rotor Dimensions with the Magnetic Speed System
81
Stator Dimensions
83
Stator Dimensions with the Magnetic Speed System
85
Mounting Dimensions
87
Order Numbers, Accessories
89
Specifications
91
Supplementary Technical Information
107
Output Signals
107
Output MD Torque (Connector 1)
107
Output N: Speed and Speed with a Reference Pulse (Connector 2)
108
Connector 2, Double Frequency, Stat. Direction of Rotation Signal
109
Axial and Radial Run-Out Tolerances
110
4
