9
Chapter 4 Installation
It is important for the user to master installation and removal of quick connector. If user
dose not operate properly will lead to water leakage, quick connector damage and pipeline
broken,

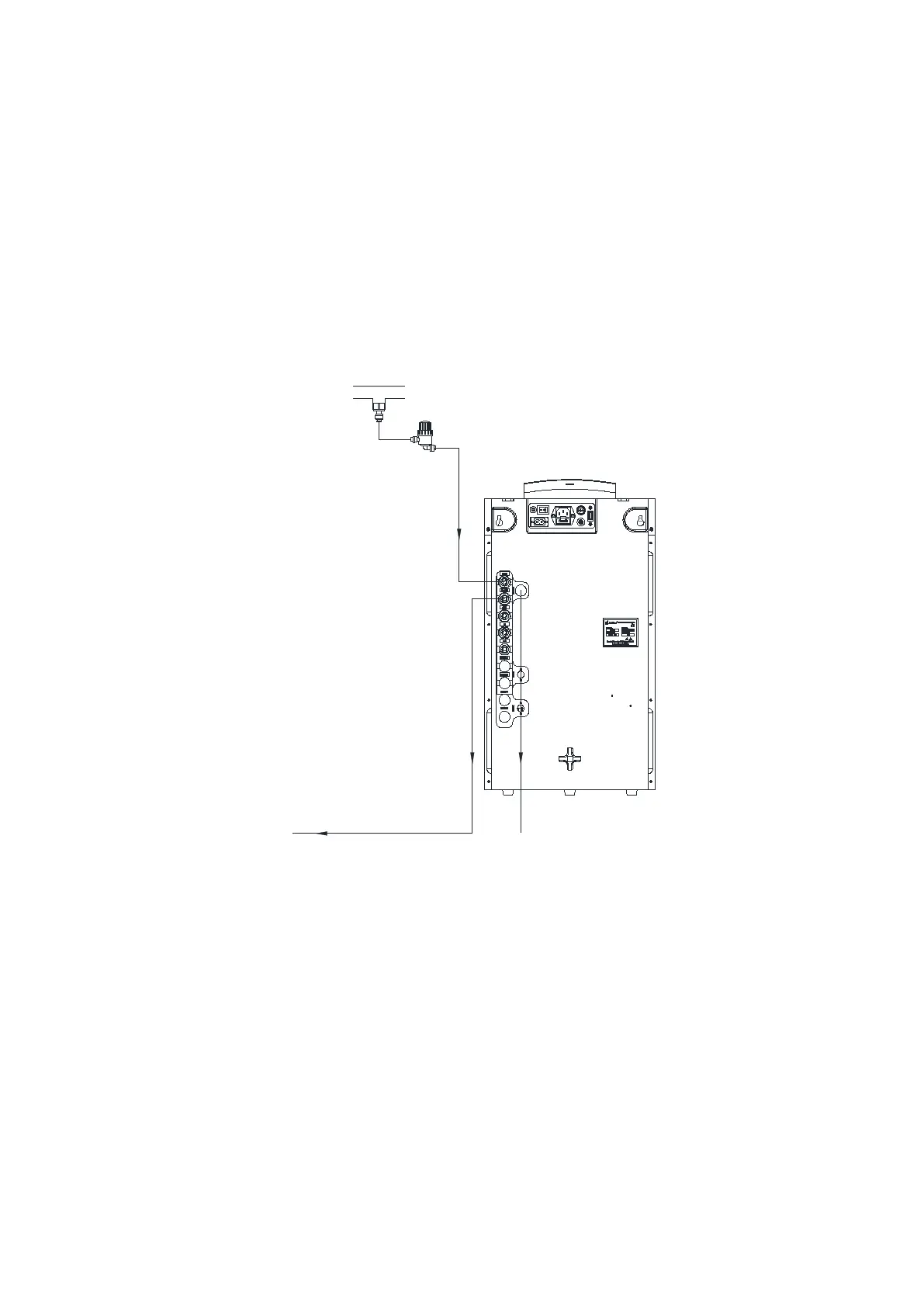

4.1 Pipeline connections
pre-filter
drain
feed water
drain
drain
A Get two black tubes (1 / 4 ", 2m), one ends of the tube connect to the "DRAIN1" and
"DRAIN2" at the back of main unit, the other ends into the external drainage pipes which
have been pre-installed.
B Get a blue tube (1 / 4 ", 20cm) and Pre- filter, one end of the blue tube connects to
the tap water connector, the other end connects to the Pre-filter “in”.
Get a blue tube (1 / 4 ", 2m), one end connect to the Pre- filter “outlet”, the other end
connect into the “feed” at the back of main unit.
To Next Page
