Chapter 9 Appendix
Appendix 1 Fuse replacement
The fuse used by the system is 1A/250V, which is installed in the power outlet at
the back of the main unit.
Pull the power cord from the external power outlet.
Unplug the power cord from the main unit. You can see a fuse holder below the
power socket.

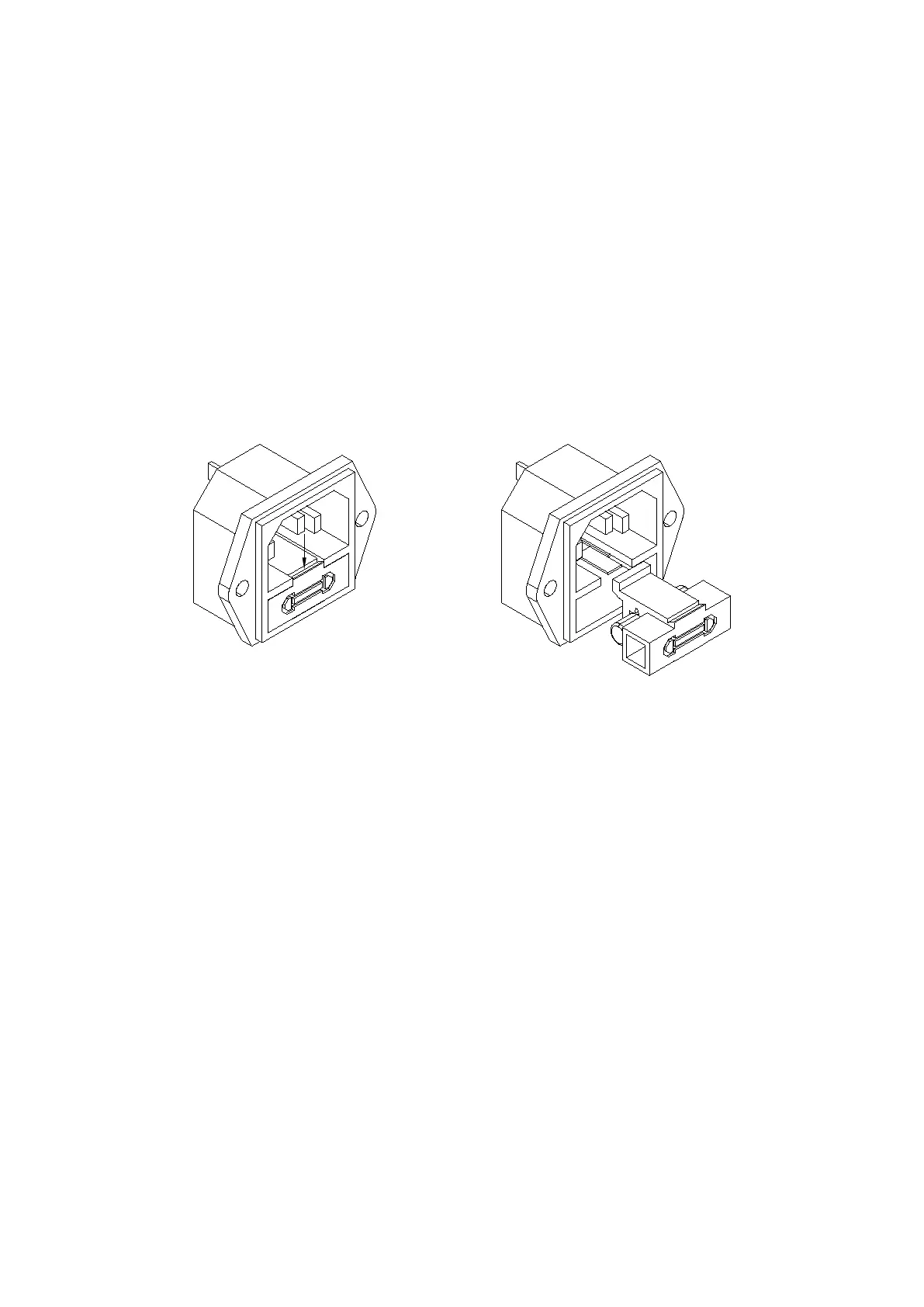

Use a screwdriver to pull the fuse holder from socket. As shown below
Take out the used fuse from the fuse holder, install new one into holder and push
to the end.
Push the fuse holder to the square hole which lies in the lower part of power
socket.
Fuse replacement is complete, plug the power cord and connect to an external
power supply.
