Heal Force Smart-Mini - Appendix 5 Components Connection to Main-Board

47

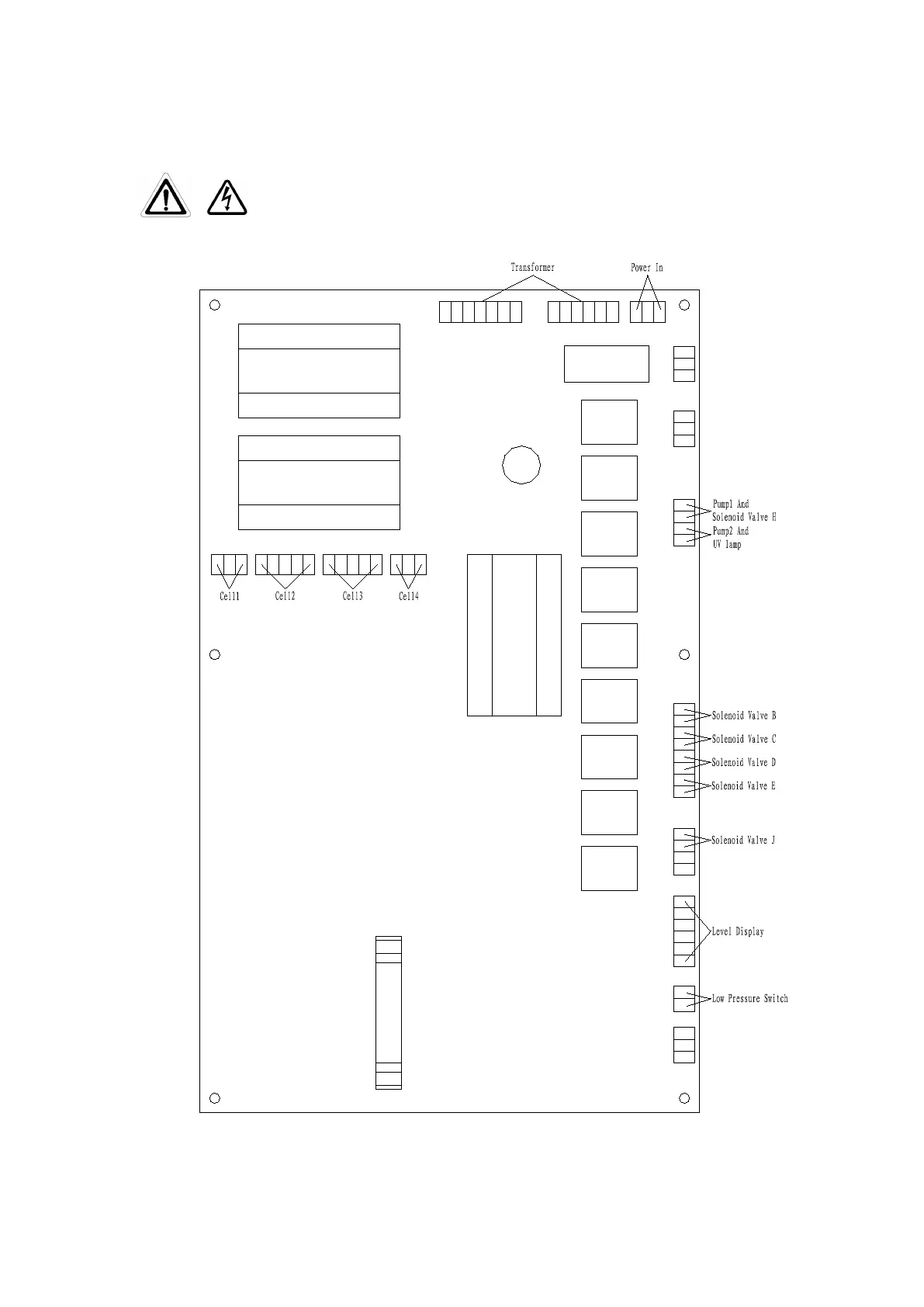

Appendix 5 Components connection to main-board
The joints P11, P12 P13 and P14 of the mainboard have 220V or
110V voltage. User should not arbitrarily open the main unit shelter.
P13
ACC GND ACD ACA ACB ACE ACF 6 5 4 3 2 1
220V（IN）
EGND
CELL GND CELL RT GND CELL RT GND CELL GND
P12 P11
P14
P16
P7
P8
P15
P6
P5
P9
P1
P2 P3
P4
RXD TXD GND BREAK IN 1 2 3 4 5 IGND K+ IGND
J+
E+ D+ C+ B+IGND IGND IGND IGND P2+IGND P1+IGND COMNO NC
220V（OUT）
EGND
