4 .2 Signal cable connection

1, socket for leakage sensor 2, Power on/off 3, socket for power supply 4,socket

for USB(option) .

4.3 Pretreatment installation

4.3.1 open the side door of the main unit

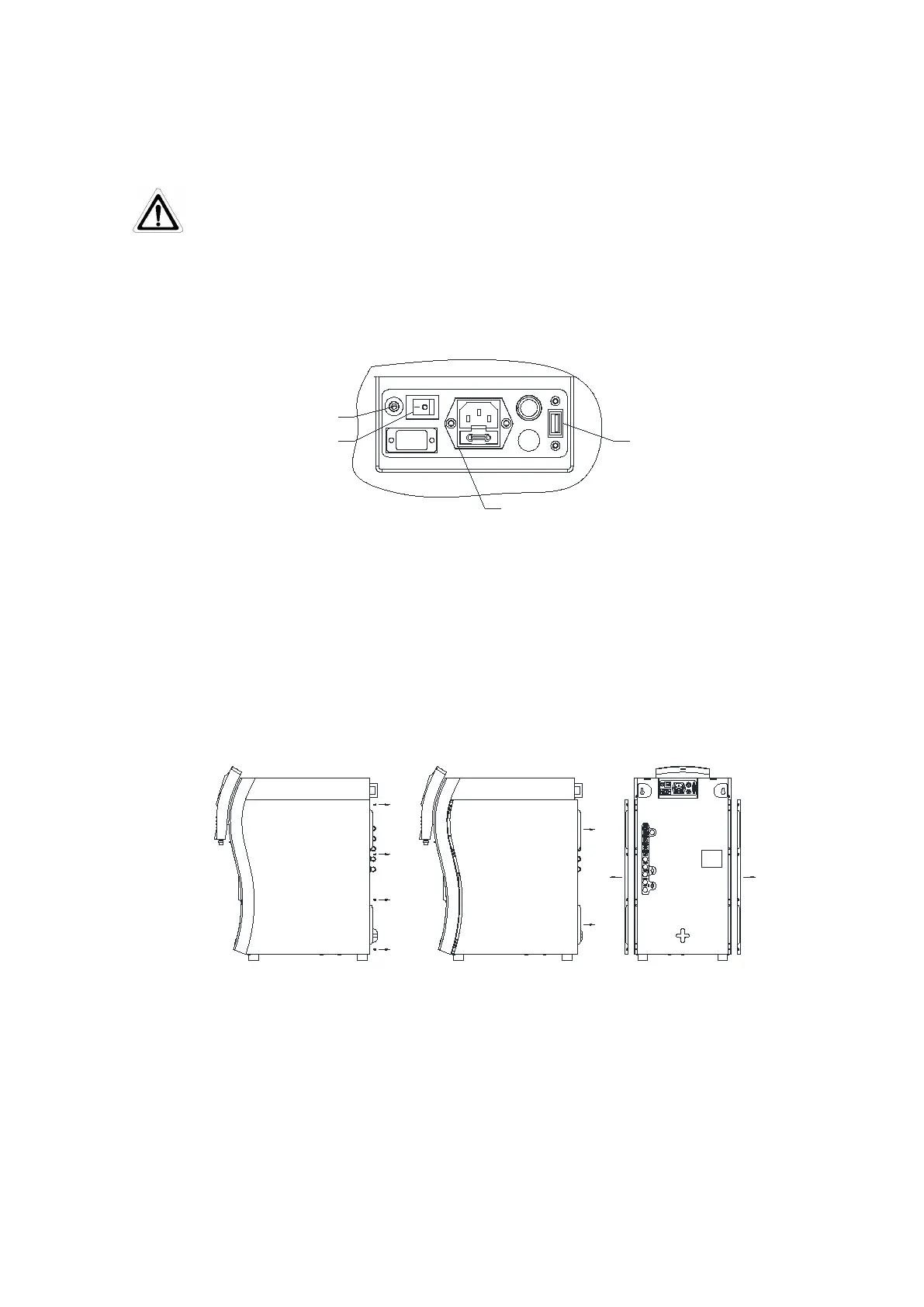

Opening method is showed below

A B C

Step A: unscrew the screw of the side door with a screwdriver.

Step B: pull the handle of the side door with both hands, forced back to pull the a side

door out of 10mm ~ 13mm.

Step C: carry out the side door.

4.3.2 The position of the main components
