12
Place the square tenon at the low of the pretreatment into the corresponding square hole
on the main unit, shown as in the figure “A” above.
Push the joint at the up of the pretreatment cartridge to the main unit shown as in the
figure “B” above. Make sure the "O"-rings of pretreatment cartridge can be completely sealed
with the joints.
There is locking plate connected with nylon line on the joints of main unit. Insert the
locking plate into the slot of metal bar, as shown in the figure C above.
Pretreatment cartridge installation is complete. As shown in Figure D.
4.3.4 Installation of ultra-purification cartridge (CR-SP302M)
Remove the left side door (front view), please refer to of this chapter.
Ultra-Purification cartridge is installed in the left chamber of Smart-Mini system.
Get the ultra-purification cartridge from the box (make sure number is correct for the
CR-SP302M).
The operation method: please refer to section4.3.3 of this chapter.
4.3.5 Installation of ultra-purification cartridge(CR-SP303M)

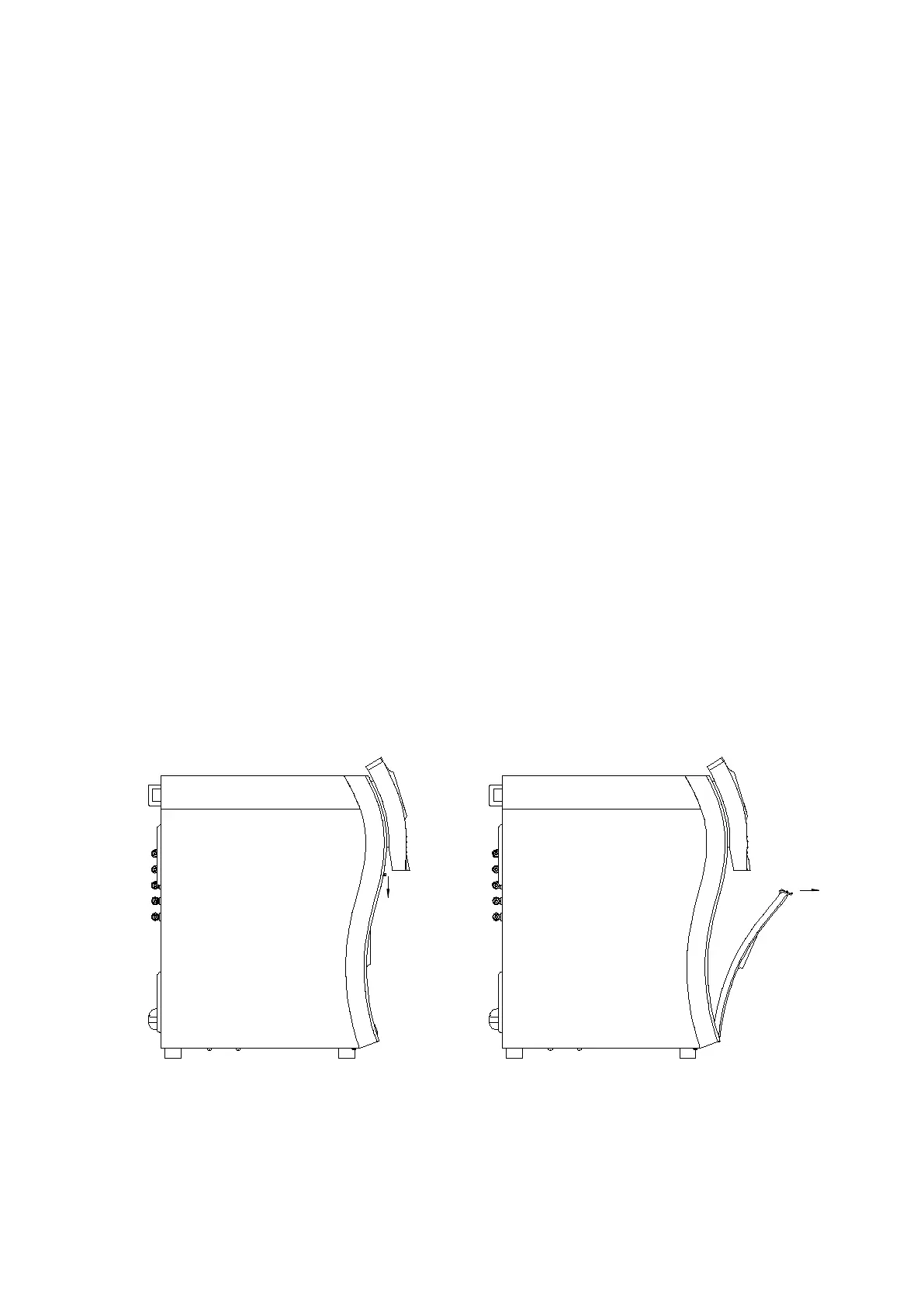

Open the front door of the main unit
