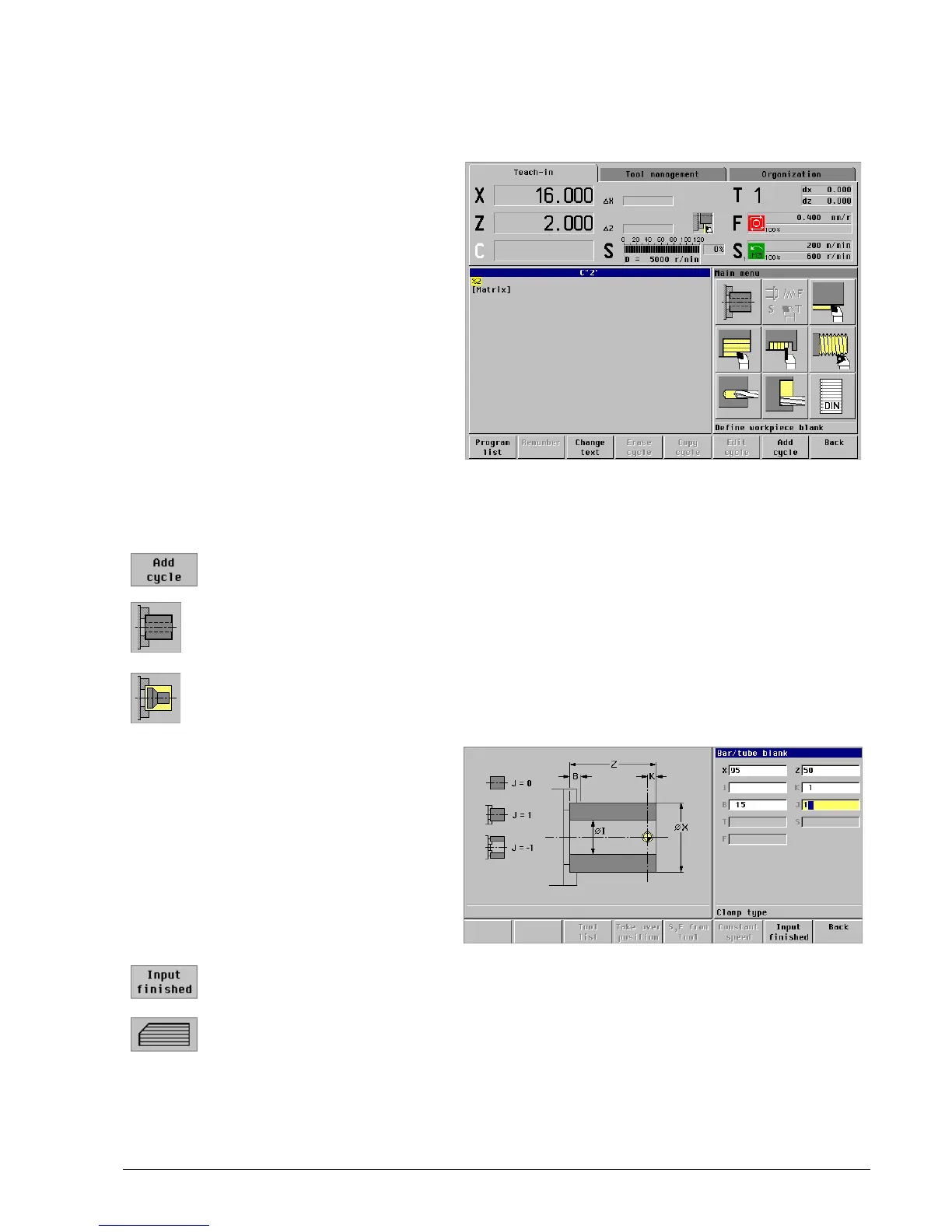

HEIDENHAIN MANUALplus 4110 Surface Machining Example 8.2
Create the “Matrix” cycle program
Creating a cycle program
Program the cycle “Blank—bar/tube”
Activate “Teach-in”
Enter the program number and name
Press the Add cycle soft
key
Press the Define blank
menu key
Press the Blank – Bar/Tube
menu key
Enter the cycle parameters:
Outside diameter X: 95 mm
Length Z: 50 mm
Inside diameter I: No entry
Right edge K: 1mm
Clamping range B: 20 mm
Type of clamping J: 1
Press the Input finished
soft key
Test the cycle:
Press the Graphics soft key
