HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.20
Create the “Threaded stud” cycle program

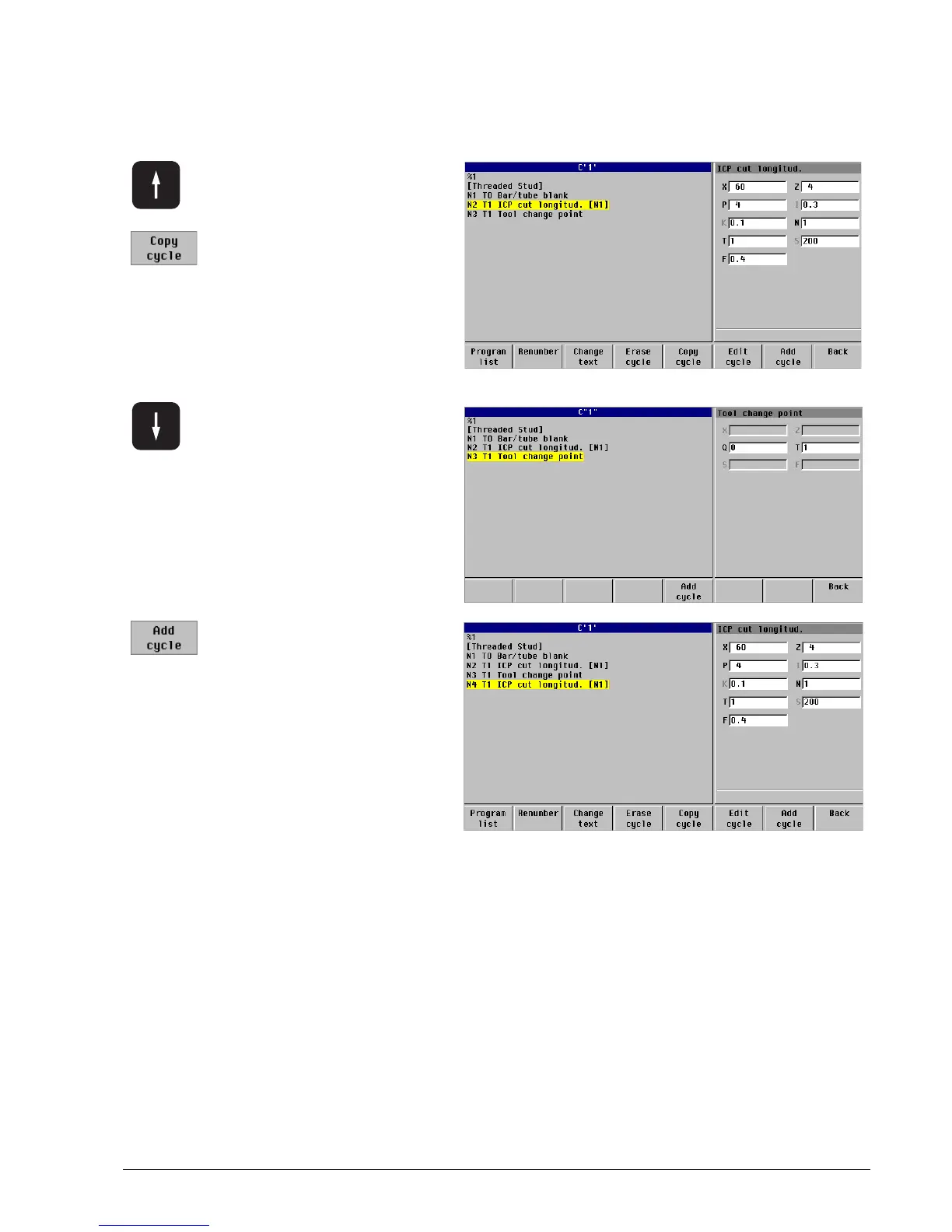

Create the “ICP finishing longitudinal” cycle by copying
 Place the cursor on the “ICP
cutting longitudinal” cycle
Press the arrow key
 Press the Copy cycle soft
key
 Place the cursor in front of
the insert position:
Press the arrow key
 Press the Add cycle soft
key
The new cycle and all parameters are
inserted below the cursor position.
