Creating tool T10
Enter the tool description
Enter the tool data (part 2)

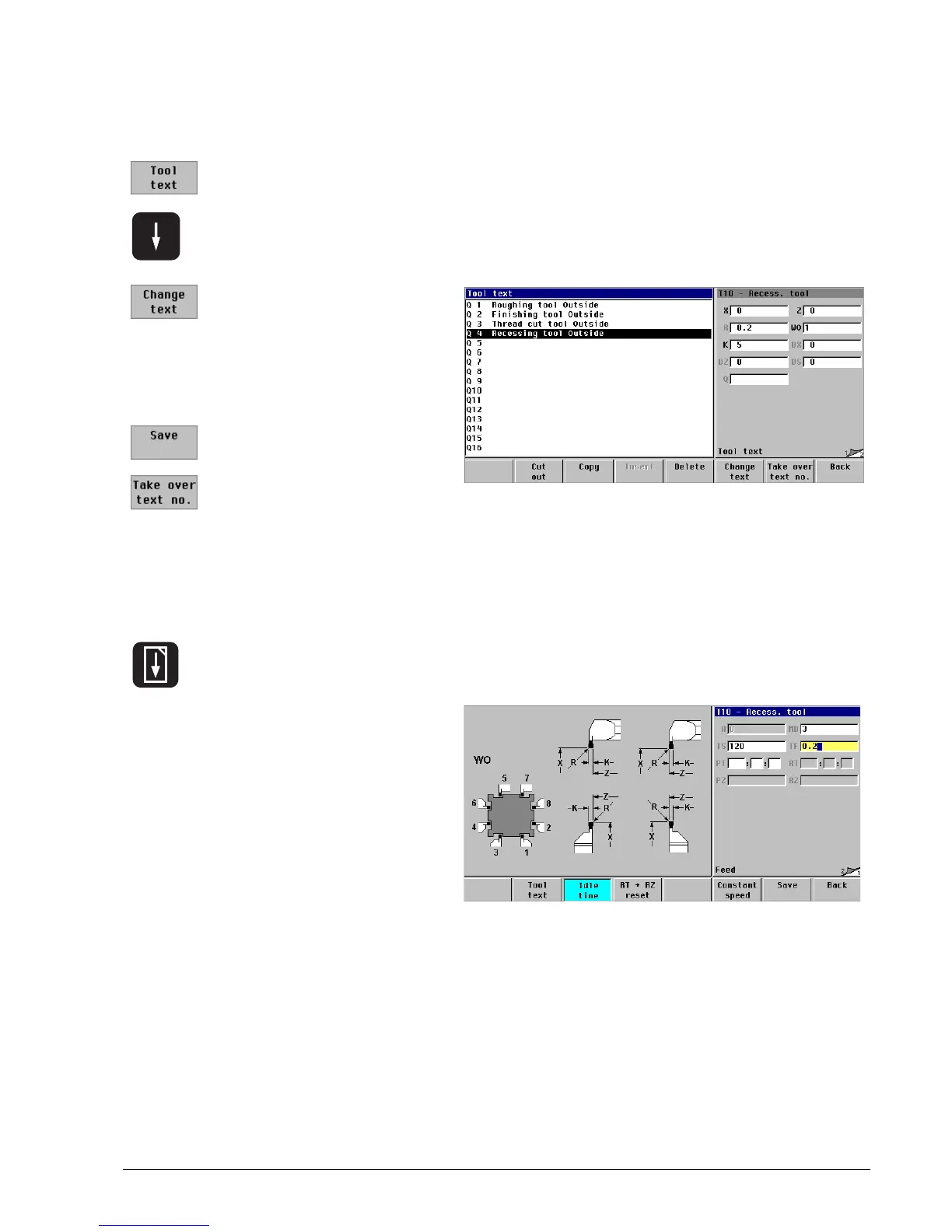

 Press the Tool text soft key.
 Place the cursor on position
Q4:
Press the arrow key
 Enter text:
Press the Change text soft
key
 Enter the text “Recessing
tool Outside” with the on-
screen keyboard
 Press the Save soft key
 Save the text number to the
parameter Tool text Q:
Press the Take over text
no. soft key
 Press the Page forward key
 Machining direction MD M3=3, M4=4:3
(3=Machining direction to the right)
 Cutting speed TS:
120 m/min
 Feed rate TF: 0.2 mm/rev
 Quantity PZ: No entry
