HEIDENHAIN MANUALplus 4110 Tool Measurement 5.13

Determine the setting dimensions for T8

Setting dimensions for T8

You determine the precise setting dimensions as follows:

 Setting dimension X: Touch measuring diameter

 Setting dimension Z: Touch the end face (workpiece datum)

Activate tool T8

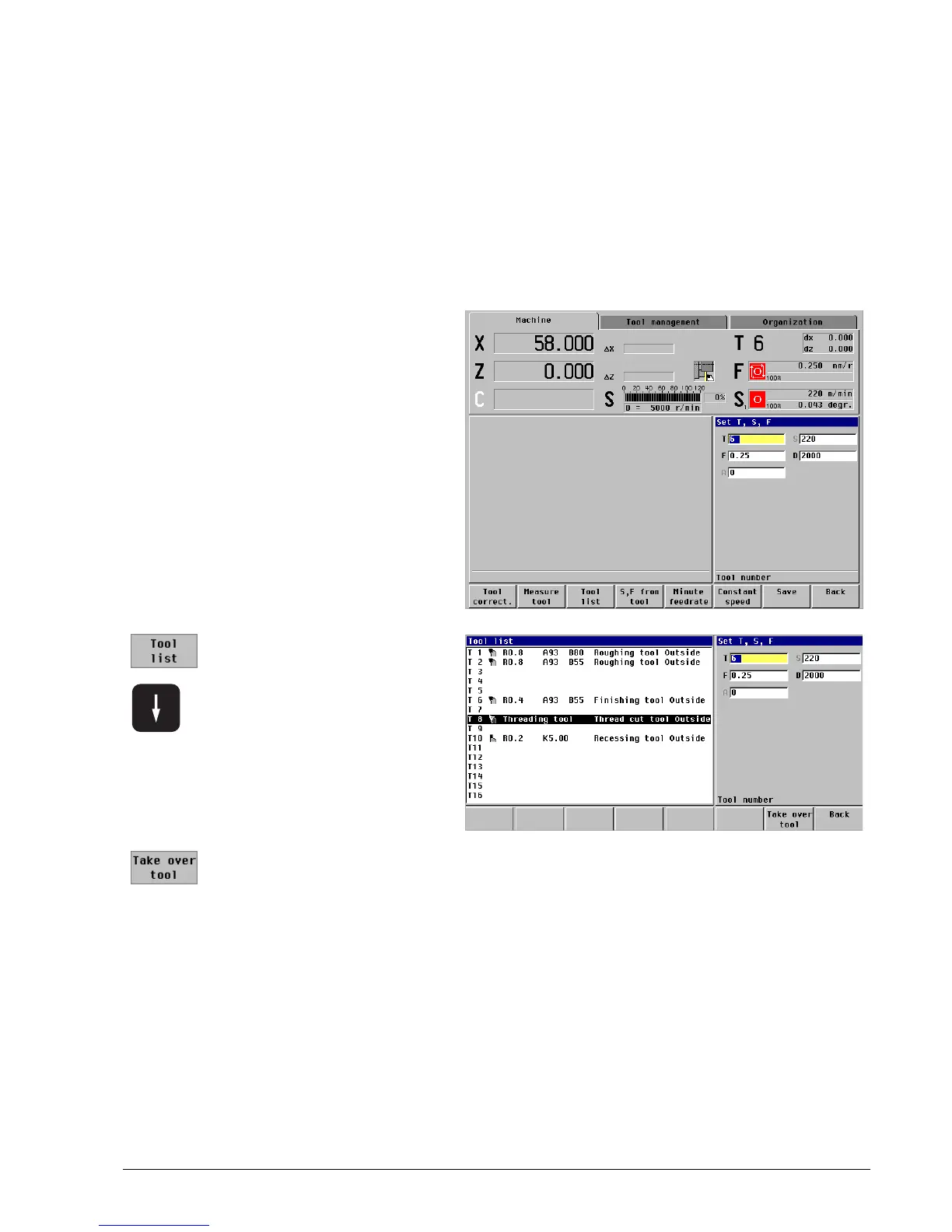

Situation after measurement of tool T6

 Open the tool file:

Press the Tool list soft key

 Place the cursor on position

T8:

Press the arrow key

repeatedly

 Press the Take over tool

soft key
