HEIDENHAIN MANUALplus 4110 Surface Machining Example 8.3

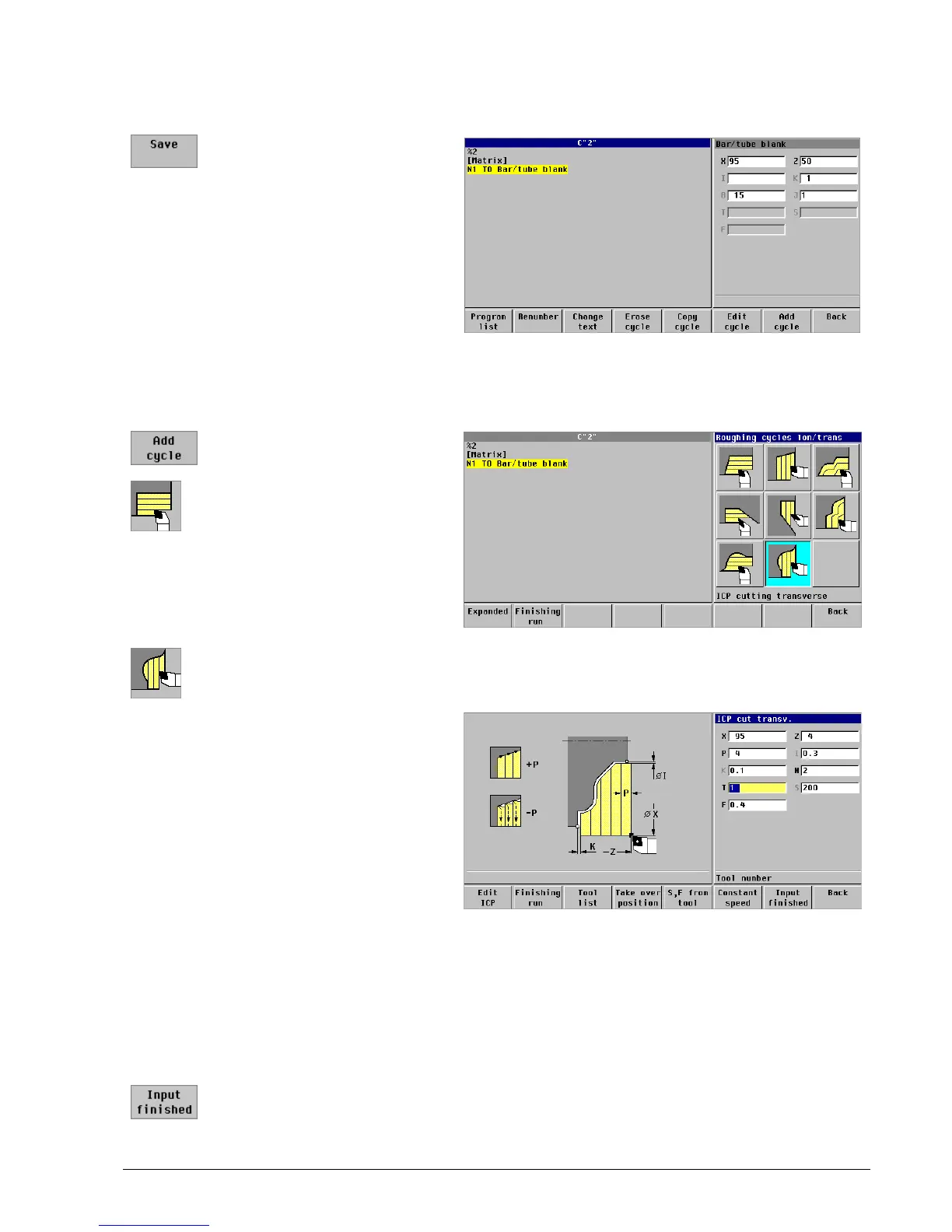

Create the “Matrix” cycle program
Program the cycle “ICP cutting transverse”
 Conclude entry:
Press the Save soft key
 Press the Add cycle soft
key
 Press the Roughing cycles,
longitudinal/transverse
menu key
 Press the ICP cut
transverse menu key
Enter the cycle parameters:
 Starting point X: 95 mm
 Starting point Z: 4mm
 Infeed depth P: 4mm
 I oversize X: 0.3 mm
 K oversize Z: 0.1 mm
 ICP contour number N: 2
(For programming of the ICP contour,
see Page 11)
 Tool number T: 1
 Cutting speed S: 200 m/min
 Feed rate per revolution F:
0.4 mm/rev
Assume the tool number and technology
data from the tool file.
 Press the Input finished
soft key
