HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.10

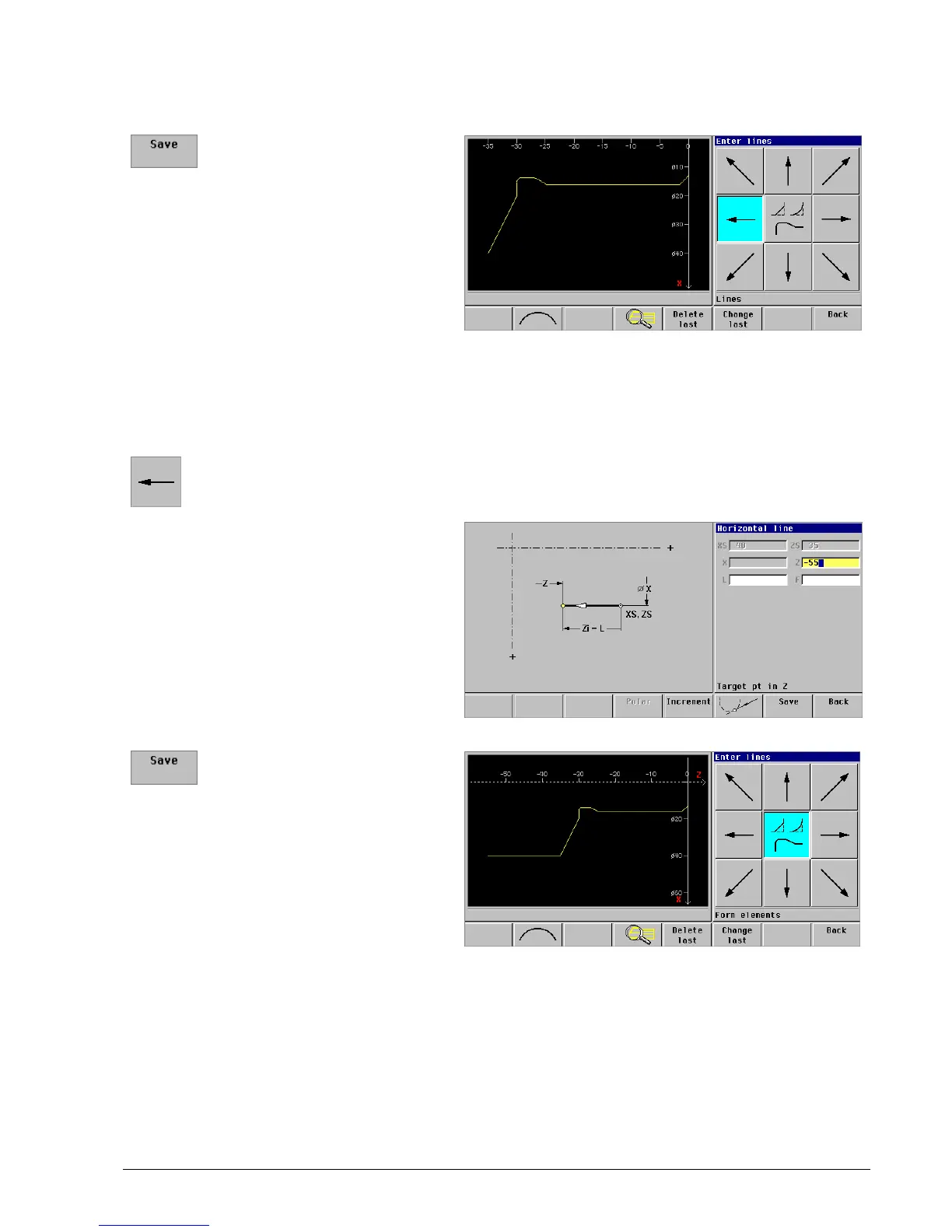

Create the ICP contour “Threaded stud”
Contour element 4 (horizontal line)
 Conclude entry:
Press the Save soft key
Contour element 4 (horizontal line):
 Press the Line menu key
Describe the contour element:
 Target point Z in Z: –55 mm
 Length of line L: No entry
 Special feed rate F: No entry
 Conclude entry:
Press the Save soft key
