HEIDENHAIN MANUALPLUS 4110 - Creating the Matrix Cycle Program; Overview of the Matrix Example Program; Prerequisites for Matrix Cycle Program

HEIDENHAIN MANUALplus 4110 Surface Machining Example 8.1
Create the “Matrix” cycle program

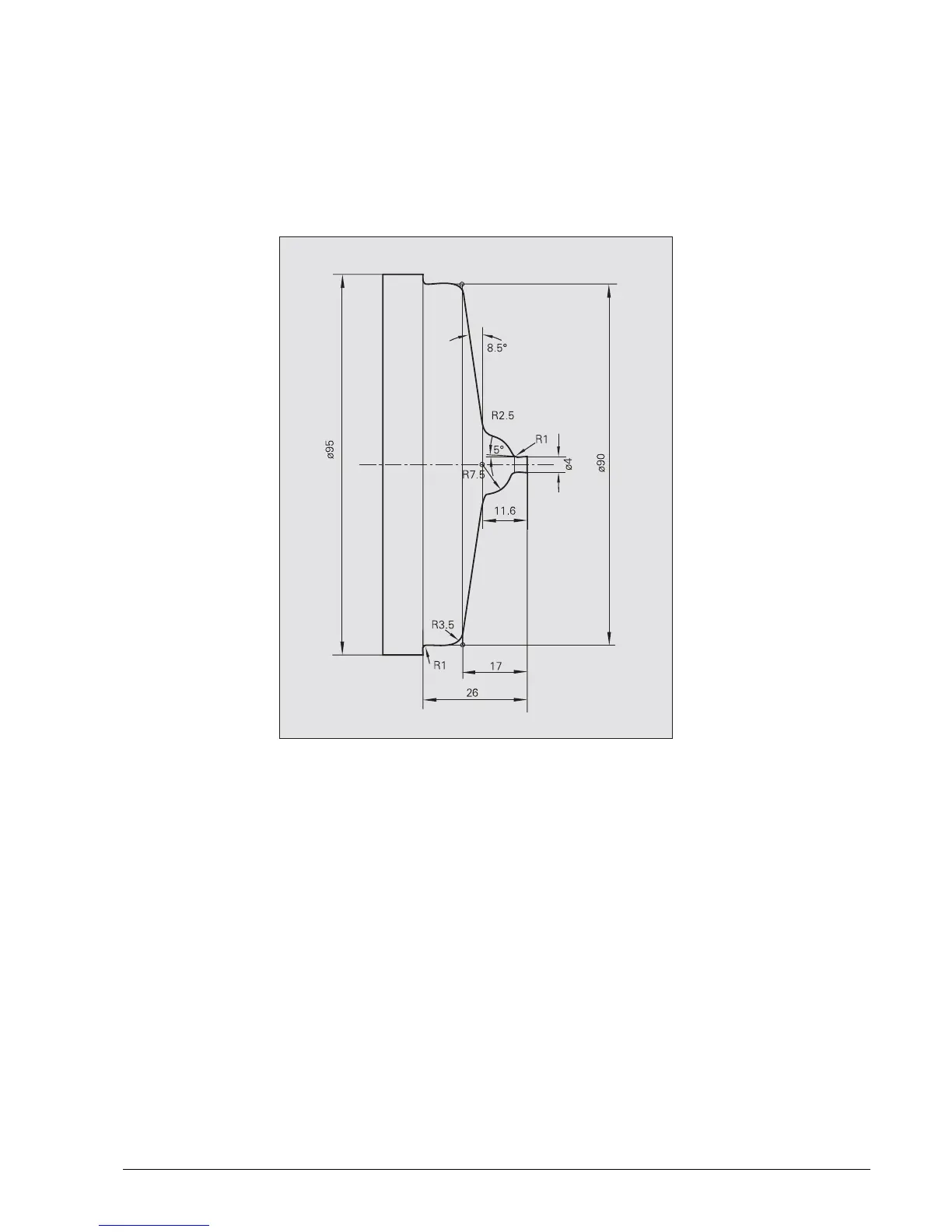

“Matrix” example program
This example illustrates transverse machining. (It is assumed that the reader is familiar with steps
explained in the previous example.)
Prerequisites:
 The workpiece blank is clamped
 The roughing tool T1 is clamped
 The roughing tool T1 and finishing tool T6 is defined and measured
 The workpiece datum is defined
 The tool change point is defined
 The protection is defined and activated
 The maximum shaft speed is defined
