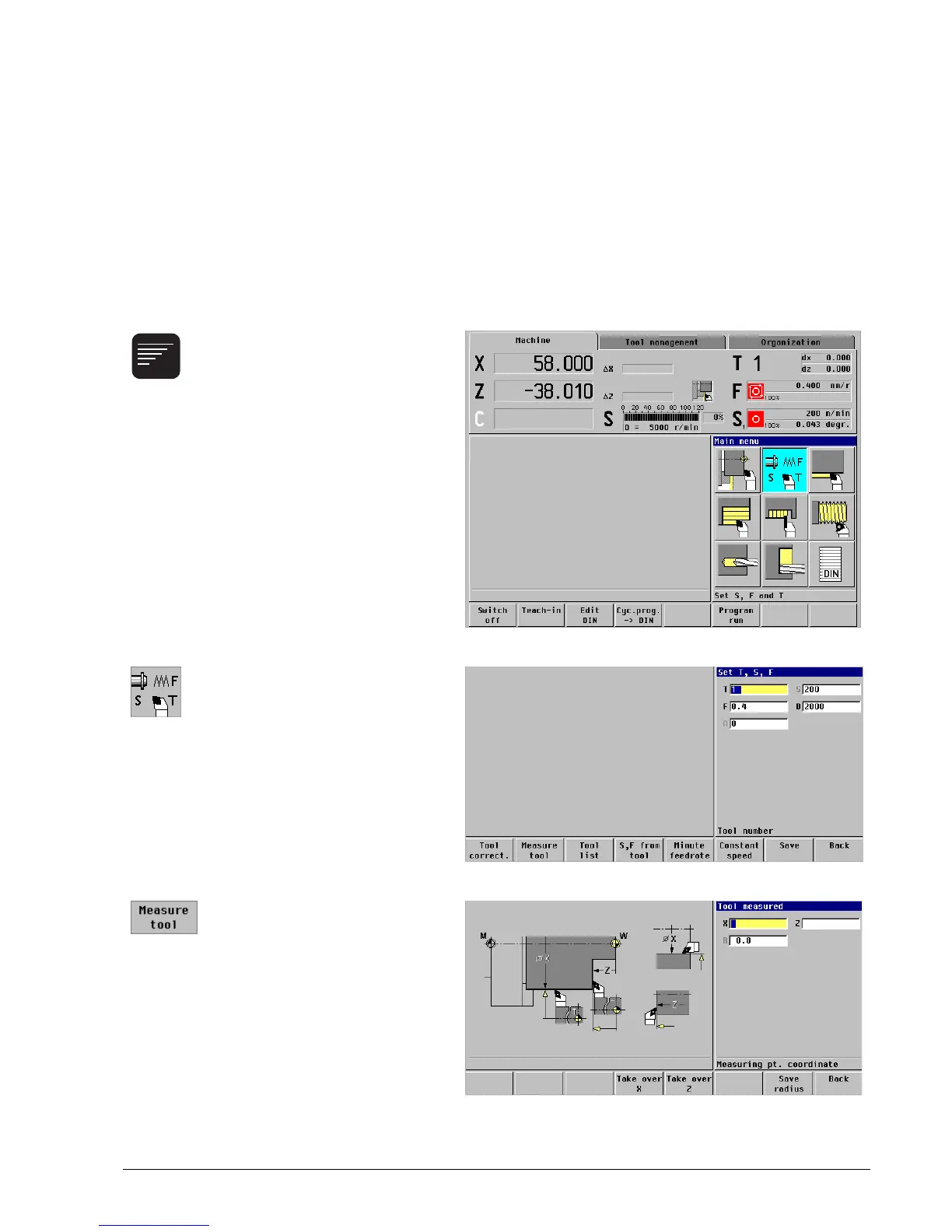

HEIDENHAIN MANUALplus 4110 Tool Measurement 5.5
Determine the setting dimensions for T1
Setting dimensions for T1
The approximate setting dimensions for T1 are already entered. You determine the precise
setting dimensions as follows:
Setting dimension X: Turn and measure the measuring diameter
Setting dimension Z: Is already specified with the definition of the workpiece datum
Call the “Measure tool” function
Call the main menu:
Press the Menu key
Select machine-data entry:
Press the Set S, F, and T
menu key
(Tool T1 is already
activated.)
Select “Measure tool”:
Press the Measure tool
soft key
