HEIDENHAIN MANUALplus 4110 Tool Management 4.1
Creating tool T1
Tool data
The tool description contains the geometric data and cutting values. The cutting values from the
tool file are then used for cycle programming and the setup functions.
For better identification of the tools, the tool text is added as a description.
The first tool serves as a reference tool. The setting dimensions are measured and entered. The
setting dimensions of the other tools are not yet relevant. They will be measured later.

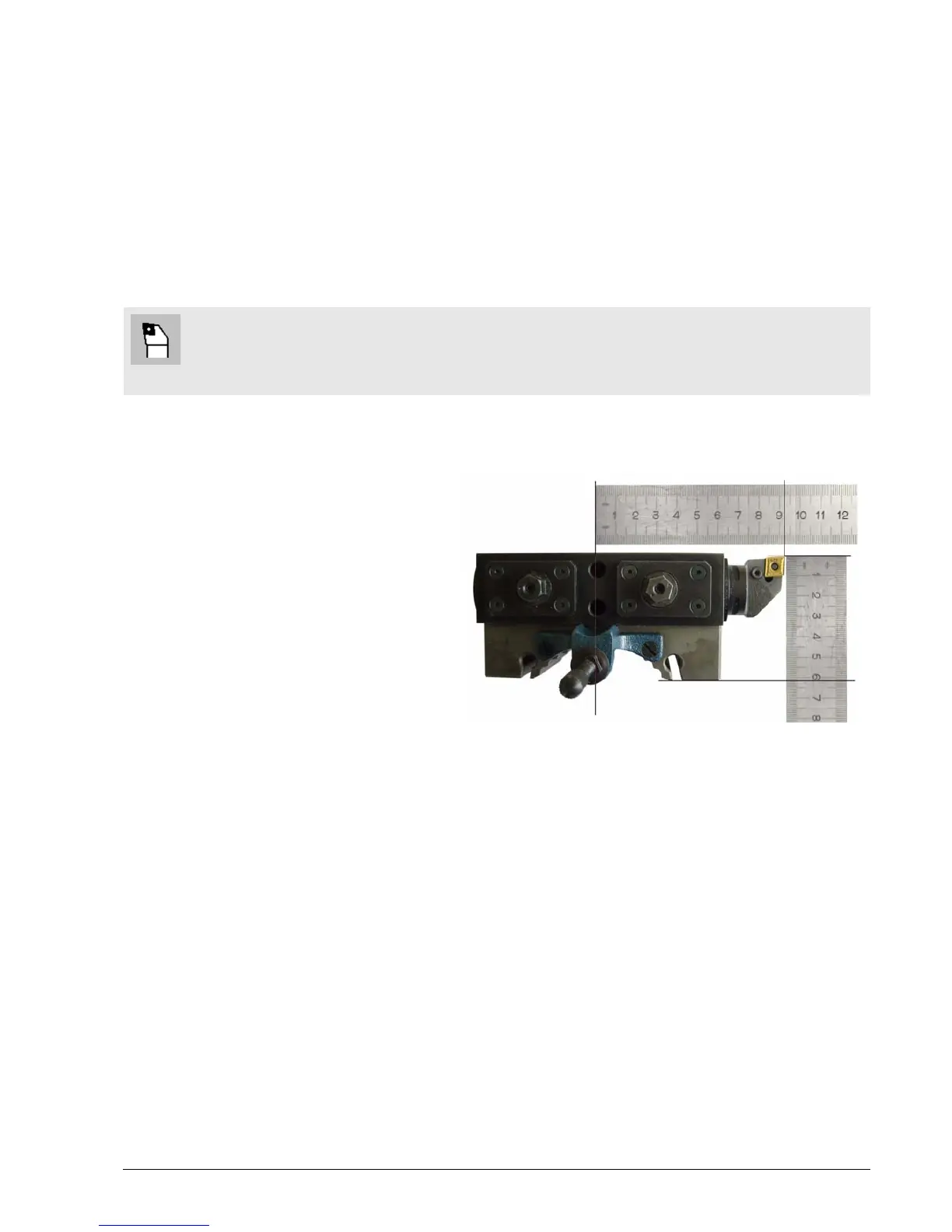

Tool measurement:
Roughing tool T1  Cutting radius: 0.8 mm
 Tool angle: 93°
 Point angle: 80°
 Setup dimension X: 92 mm
 Setup dimension Z: 62 mm
