HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.5

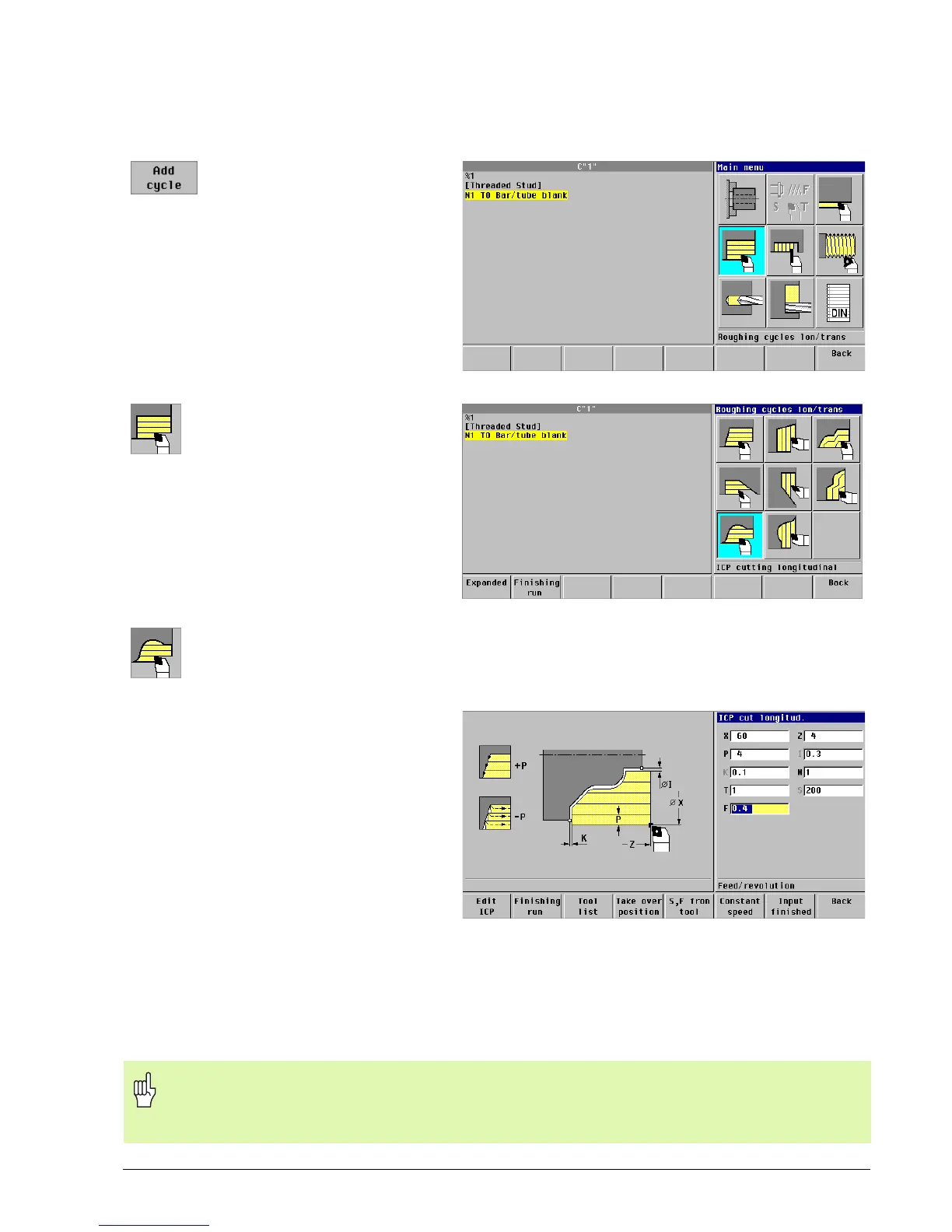

Create the “Threaded stud” cycle program
Program the “ICP–longitudinal cutting” cycle
 Press the Add cycle soft
key
 Press the Roughing cycles,
longitudinal/transverse
menu key
 Press the ICP cutting
longitudinal menu key
Enter the cycle parameters:
 Starting point X in X direction: 60
mm
 Starting point Z in Z direction:
4 mm
 Infeed depth P: 4mm
 I oversize X: 0.3 mm
 K oversize Z: 0.1 mm
 ICP contour number N:: 1
(specify the ICP contour number)
 Tool number T: 1
 Cutting speed S: 200 m/min
 Feed rate per revolution F:
0.4 mm/rev
 Assume the tool number and technology data from the tool file (see following steps).
 Create the ICP contour “threaded stud.” This is necessary to be able to test and
perform the cycle (see following steps).
