HEIDENHAIN MANUALplus 4110 Tool Measurement 5.14

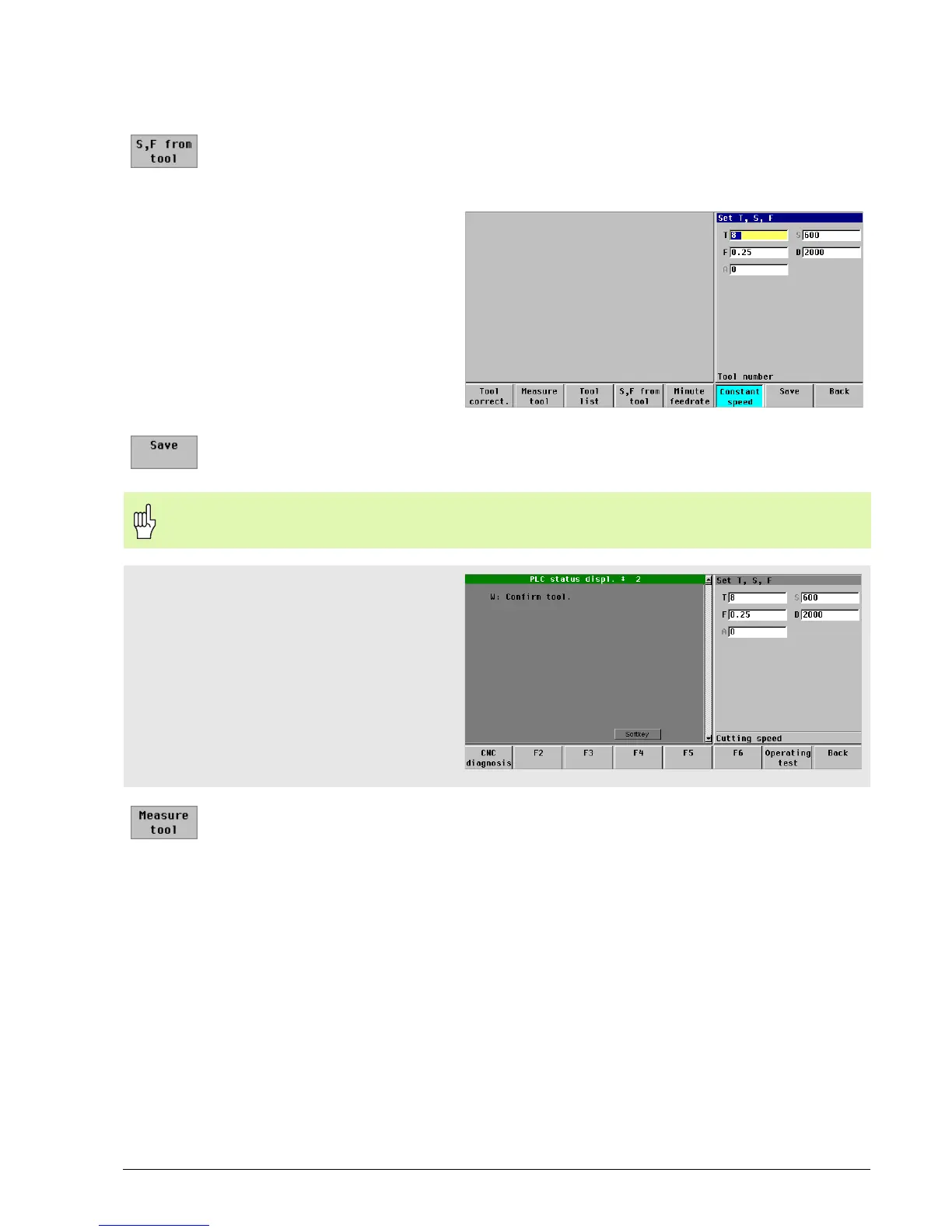

Determine the setting dimensions for T8
 Press the S, F from tool
soft key
Entries and assumed machine data
 Tool number T: 8
 Shaft speed S: 600 rev/min
 Feed per revolution F: –
 Maximum shaft speed D: 2000 rev/min
 Stopping angle A: No entry
 Activate the tool:
Press the Save soft key
The parameter Feed rate per revolution F is not evaluated for threading tools.
 Insert tool T8
 Confirm T8 with the tool-change key
 Select the “Measure tool”
function:
Press the Measure tool
soft key
